Us Motors tp-e25-3sp2 Evaporator Motor 3 Speed 230V

Product Description

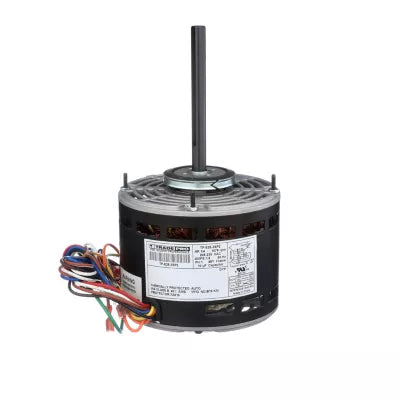

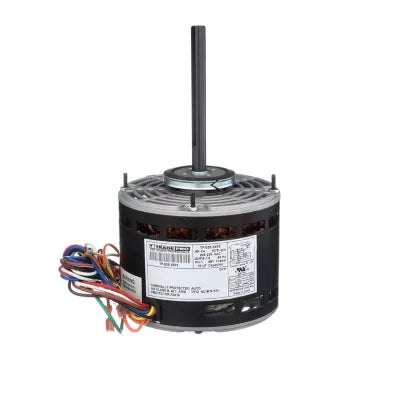

The US MOTORS tp-e25-3sp2 is a universal fixed fractional evaporator motor designed for residential and light commercial HVAC evaporator coil applications. Rated at 1/4 horsepower with a 208-230 volt single-phase supply and a 1.6 amp draw, this motor operates at three selectable speeds: 800, 950, and 1075 RPM. The 48 frame construction features a 5-inch keyed shaft with a 1/2-inch diameter and a Dynamic Self Aligning bearing for long-term reliable operation. Licensed HVAC technicians install this motor as an OEM-style or universal replacement in forced-air evaporator fan assemblies.

This motor is suited for residential and light commercial split-system or package unit evaporator fan applications requiring a 48 frame, side shell mount configuration. The unit comes pre-drilled to accept Rheem mount wings and is compatible with resilient mount rings, making it adaptable across a range of common evaporator cabinet configurations. Reversible rotation direction adds flexibility for various installation orientations. Technicians requiring a universal fit replacement motor for 208-230 volt single-phase evaporator fan duty will find this motor fits a broad range of equipment.

Key Features

• Three selectable operating speeds: 800, 950, and 1075 RPM
• 208-230 volt single-phase operation at 1.6 amps
• 48 frame, side shell mount with pre-drilled Rheem mount wing holes
• Compatible with resilient mount rings for vibration isolation
• 5-inch keyed shaft, 1/2-inch diameter with Dynamic Self Aligning bearing
• Reversible rotation direction for flexible installation
• Requires a 10 MFD 370 or 440 volt run capacitor

Compatibility

Designed as a universal OEM-style replacement for 48 frame evaporator fan motors in 208-230 volt single-phase HVAC systems. Pre-drilled side shell mount accepts Rheem mount wings, broadening fitment across multiple evaporator cabinet styles.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler or package unit before removing the existing motor. Verify capacitor rating matches the required 10 MFD 370 or 440 volt specification before energizing. Confirm shaft rotation direction is set correctly for the application before final startup.

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 208-230 volts, single phase
• Amperage: 1.6 amps
• Speeds: 3 speed (800, 950, 1075 RPM)
• Maximum RPM: 1075 RPM
• Frame: 48
• Shaft Length: 5 inches
• Shaft Diameter: 0.5 inches
• Shaft Type: Keyed
• Bearing Type: Dynamic Self Aligning
• Mount Type: Side shell mount, resilient mount compatible
• Rotation: Reversible
• Run Capacitor Required: 10 MFD, 370 or 440 volts

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: tp-e25-3sp2
