Us Motors tp-c33-mhp2 Condenser Fan Motor 1075 Rpm 230V

Product Description

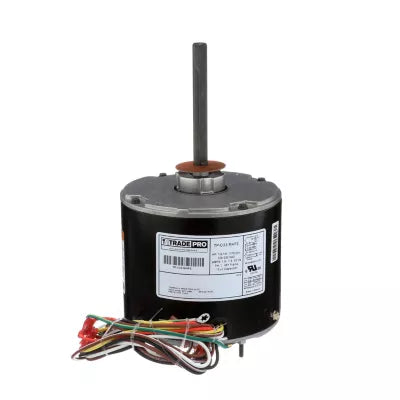

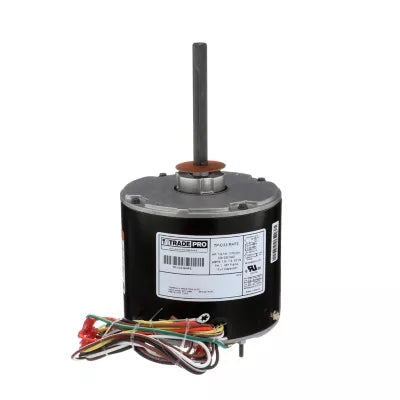

The US MOTORS tp-c33-mhp2 is a universal multi-horsepower fractional condenser fan motor designed for residential and light commercial HVAC condensing units. Rated at 1075 RPM and 208-230 volts single phase, it draws 1.8 amps and covers a horsepower range from 1/6 to 1/3 HP. The 48 frame motor ships with a 5-inch keyed shaft at 1/2-inch diameter and uses a Dynamic Self Aligning bearing for long service life. It pairs with a 10 MFD, 370 or 440 volt run capacitor. Licensed HVAC technicians install this motor as an OEM-style replacement or direct upgrade in split-system condenser applications.

This motor is suited for residential and commercial condensing unit fan applications where a universal multi-horsepower fractional motor is needed. The side shell mount design comes pre-drilled to accept a Rheem mounting plate, and the end plate is drilled to accept both Rheem and Trane mounting configurations. The reversible rotation direction and any-position mounting capability make it adaptable across a wide range of condenser unit configurations, reducing the need to stock multiple motor SKUs on the service truck.

Key Features

• Universal multi-horsepower rating: 1/6 to 1/3 HP on a single motor
• 208-230 volt single phase, 1.8 amp draw
• 48 frame with 5-inch keyed shaft, 1/2-inch diameter
• Dynamic Self Aligning bearing for reduced vibration and extended service life
• Pre-drilled side shell mount accepts Rheem mounting plate; end plate accepts Rheem or Trane mounts
• Reversible rotation direction, mounts in any position
• Compatible with 10 MFD 370 or 440 volt run capacitor

Compatibility

Pre-drilled mounting points are designed to accept Rheem mounting plates on the side shell and Rheem or Trane mounting configurations on the end plate, making this motor a direct-fit candidate for a broad range of condensing units using standard 48 frame mounting.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or capacitor. Verify rotation direction before final mounting, as this motor supports field-reversible rotation. Always replace the run capacitor when installing a new condenser fan motor, and confirm the replacement capacitor matches the 10 MFD and voltage rating specified for this motor.

Technical Specifications

• Speed: 1075 RPM
• Voltage: 208-230 volts single phase
• Amperage: 1.8 amps
• Horsepower Range: 1/6 to 1/3 HP (multi-horsepower)
• Frame: 48
• Shaft Length: 5 inches keyed
• Shaft Diameter: 1/2 inch
• Bearing Type: Dynamic Self Aligning
• Capacitor Requirement: 10 MFD, 370 or 440 volts
• Mounting: Side shell mount, any position
• Rotation: Reversible

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: tp-c33-mhp2
