Product Description

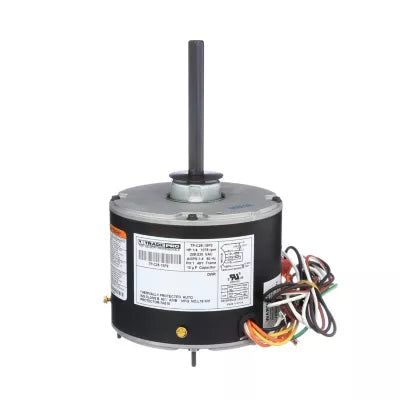

The US MOTORS tp-c25-1sp2 is a universal fixed fractional condenser fan motor designed for single-phase residential and light commercial HVAC applications. Rated at 1/4 horsepower and 1075 RPM, this motor operates on 208-230 volts with a 1.4 amp draw. The 48 frame construction features a side shell mount pre-drilled to accept a Rheem mounting plate, and a 5-inch keyed shaft with a 1/2-inch diameter. A dynamic self-aligning bearing supports quiet, reliable operation across a wide range of installation positions. Licensed HVAC technicians install this motor as a direct replacement in condenser unit service.
This motor suits residential and light commercial condensing unit applications where a universal fixed fractional replacement is needed. The reversible rotation direction provides flexibility across multiple equipment configurations. The side shell mount and pre-drilled Rheem plate compatibility make this motor a practical fit for replacement service on Rheem condensing units and other systems accepting a standard 48 frame motor. It is compatible with systems requiring a 10 MFD capacitor rated at 370 or 440 volts.
Key Features
- 1/4 HP at 1075 RPM single-speed output for condenser fan duty
- 208-230 volt single-phase operation with 1.4 amp draw
- Side shell mount with pre-drilled Rheem mounting plate compatibility
- 5-inch keyed shaft, 1/2-inch diameter for secure drive engagement
- Dynamic self-aligning bearing for extended service life and quiet operation
- Reversible rotation direction and multi-position mounting capability
Compatibility
Designed as a universal fixed fractional replacement condenser fan motor for 48 frame single-phase condensing units; pre-drilled side shell mount accepts a Rheem mounting plate, making it suitable for Rheem condenser applications requiring a 1/4 HP, 1075 RPM, 208-230 volt motor with a 10 MFD capacitor at 370 or 440 volts.
Installation Notes
Installation should be performed by a licensed HVAC technician. Disconnect and lock out power to the condensing unit before removing the existing motor or capacitor. Verify rotation direction is correct for the existing fan blade before restoring power. A 10 MFD run capacitor rated at 370 or 440 volts is required and should be replaced or confirmed serviceable during motor changeout.
Technical Specifications
-
Horsepower: 1/4 HP
-
Speed: 1075 RPM
-
Voltage: 208-230 volts
-
Phase: Single phase
-
Amperage: 1.4 amps
-
Frame: 48 frame
-
Shaft Length: 5 inches
-
Shaft Diameter: 1/2 inch keyed
-
Bearing Type: Dynamic self-aligning
-
Mount Type: Side shell mount
-
Rotation: Reversible
-
Required Capacitor: 10 MFD at 370 or 440 volts
-
Mounting Position: Any position
-
Speeds: 1
Standard Information
-
Brand: US MOTORS
-
Manufacturer Part Number: tp-c25-1sp2
