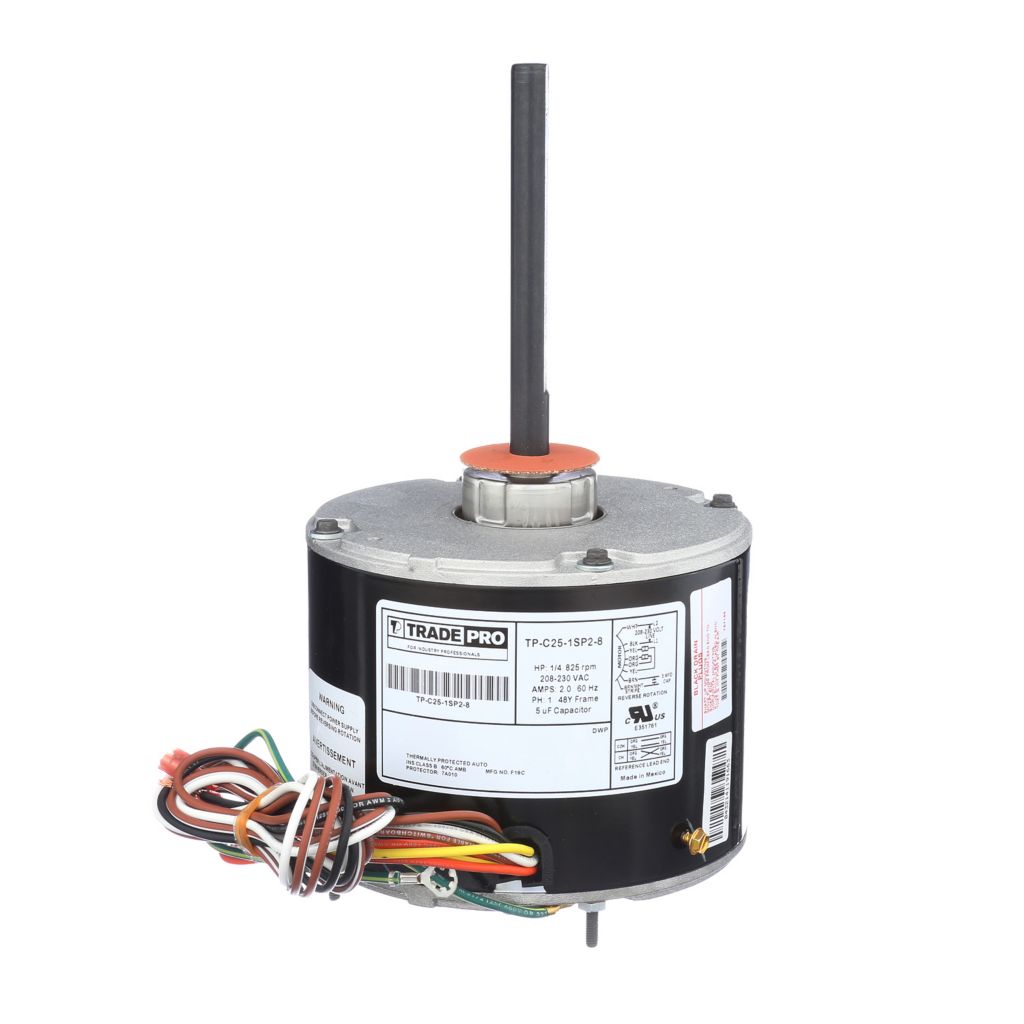

Us Motors TP-C25-1SP2-8 Condenser Fan Motor 1/4 HP 825 RPM

Product Description

US MOTORS TP-C25-1SP2-8 condenser fan motor is functionally tested during manufacturing and retested after final assembly. The TRADEPRO fixed fractional motors offer a combination of heavy-duty construction and rugged durability. This motor is a universal fixed fractional condenser motor, single phase, and mounts in any position.

• 208-230V single phase
• 5" keyed shaft, 1/2" diameter
• Dynamic self-aligning bearing with reversible direction

Product Highlights

The US MOTORS TP-C25-1SP2-8 is a durable and reliable condenser fan motor suitable for various air conditioning applications.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: TP-C25-1SP2-8
• Country of Origin: MEX

Technical Specifications

• SKU: TP-C25-1SP2-8
• Amps: 2
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Brand: TRADEPRO
• Capacitor MFD: 5
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• EAN: 0816075029668
• Full Load Amps: 2
• Insulation Class: B
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor HP: 1/4
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 1
• Phase: Single
• Poles: 8
• Prop 65: No
• Protection: Yes
• Rotation: Counter Clockwise (CCW)
• RPM: 825
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• UPC: 816075029668
• Voltage: 208-230 VAC
• Weight: 9.6
• Product Type: Air Conditioner
