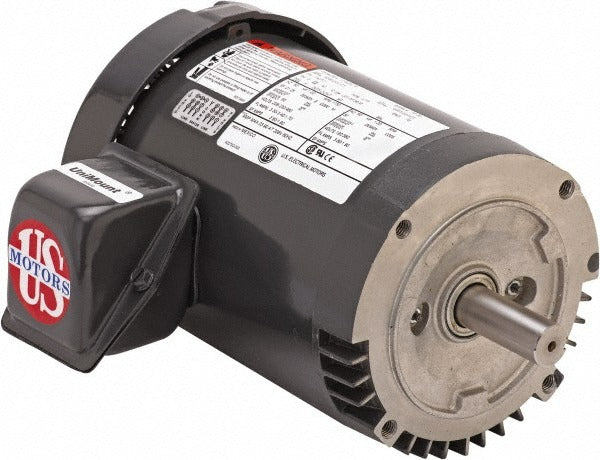

Us Motors T32E2ACR 3-phase Tefc Motor 1.5 Hp 56 Frame

Product Description

The US MOTORS T32E2ACR is a three-phase, premium-efficient AC motor built with a TEFC (Totally Enclosed Fan-Cooled) enclosure and C-Face mount configuration. Rated at 1.5 HP and 1725 RPM at 60 Hz, it operates on 208 to 230 volts or 460 volts, making it suitable for both single-voltage and dual-voltage applications. The rolled steel frame provides durable construction, while Class F insulation supports reliable operation in demanding service environments. Sealed ball bearings minimize maintenance requirements. This motor is installed by licensed electricians and mechanical contractors in commercial and light industrial settings.

The T32E2ACR is designed for general equipment applications where a three-phase, single-speed motor is required. The C-Face mount allows direct coupling to pumps, compressors, fans, and other driven equipment that require a flanged face connection. The 56 frame designation is a standard NEMA frame size, making this motor a straightforward fit in equipment designed for that footprint. It is commonly installed in light commercial HVAC systems, industrial fans, and general-purpose machinery requiring a compact, enclosed motor.

Key Features

• TEFC enclosure protects windings from dust, moisture, and debris in harsh environments
• C-Face mount enables direct flanged coupling to pumps, blowers, and compressors
• Dual-voltage rated at 208 to 230 volts and 460 volts for flexible installation
• Class F insulation supports operation in elevated ambient temperature conditions
• Sealed ball bearings reduce maintenance intervals
• NEMA 56 frame provides compatibility with standard equipment mounting configurations

Compatibility

Designed as an OEM-style replacement for three-phase TEFC C-Face motors in NEMA 56 frame general equipment applications requiring 1.5 HP at 1725 RPM on 208 to 230 or 460 volt three-phase power.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all electrical power before removing the existing motor or making any wiring connections. Verify supply voltage and phase rotation match motor nameplate specifications before energizing. Ensure the driven equipment shaft and coupling are properly aligned to avoid premature bearing wear.
