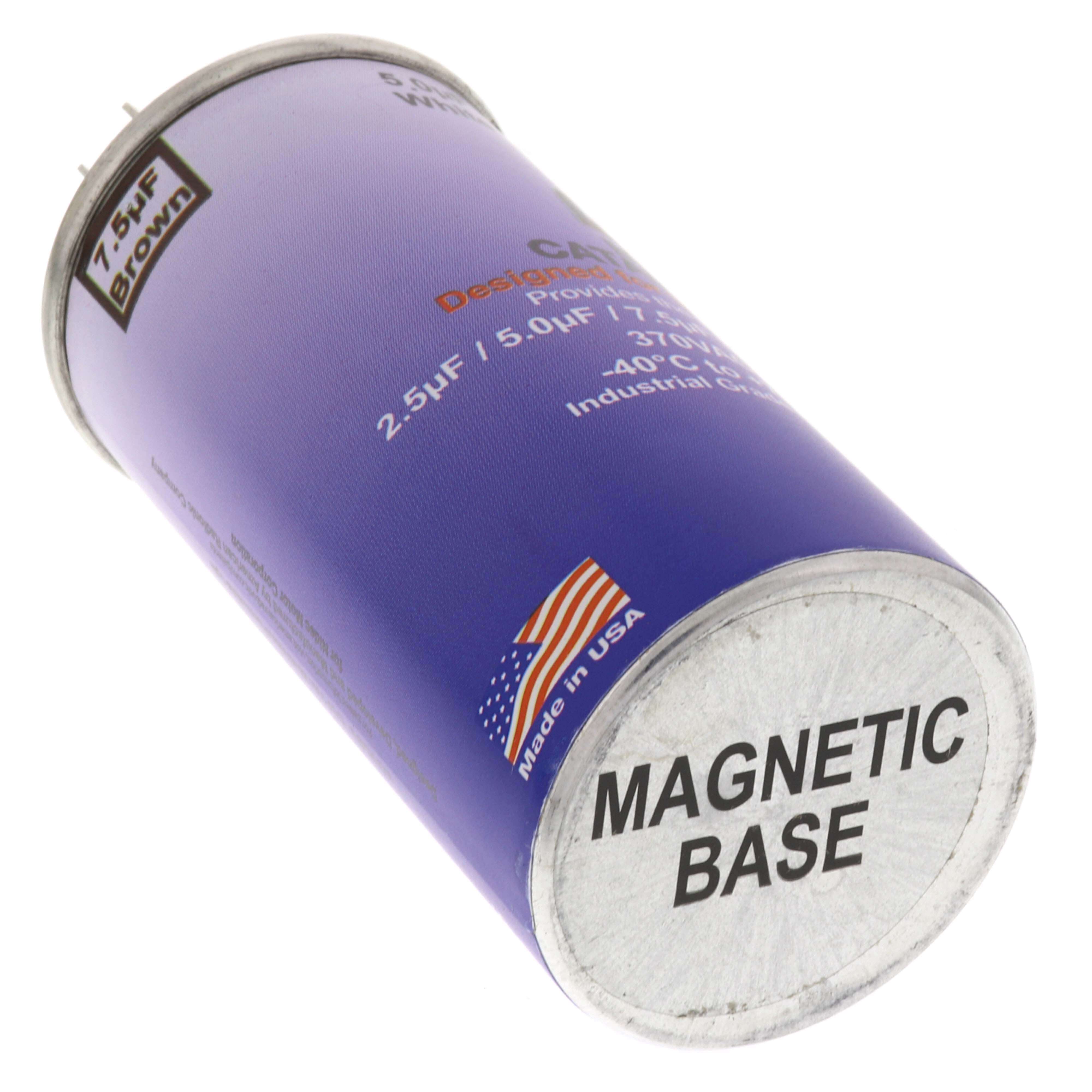

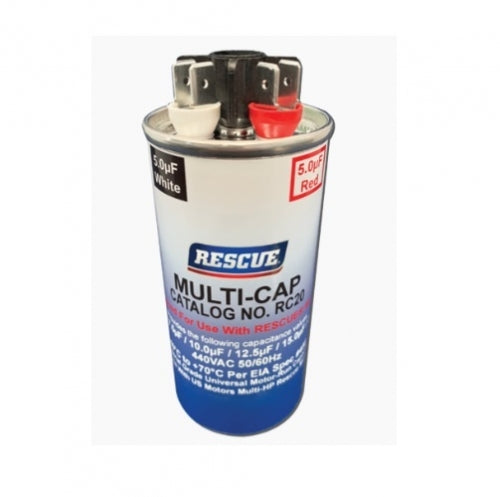

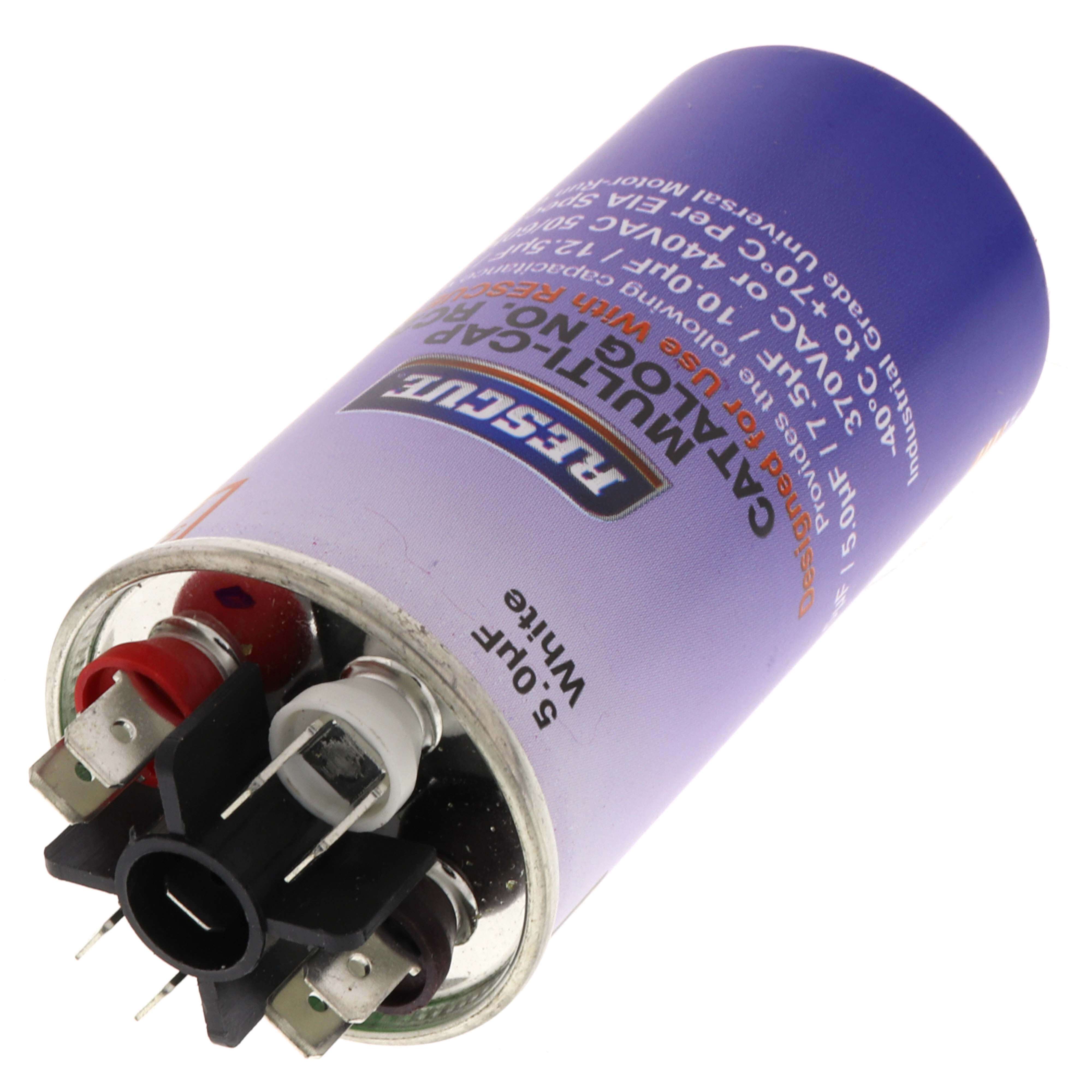

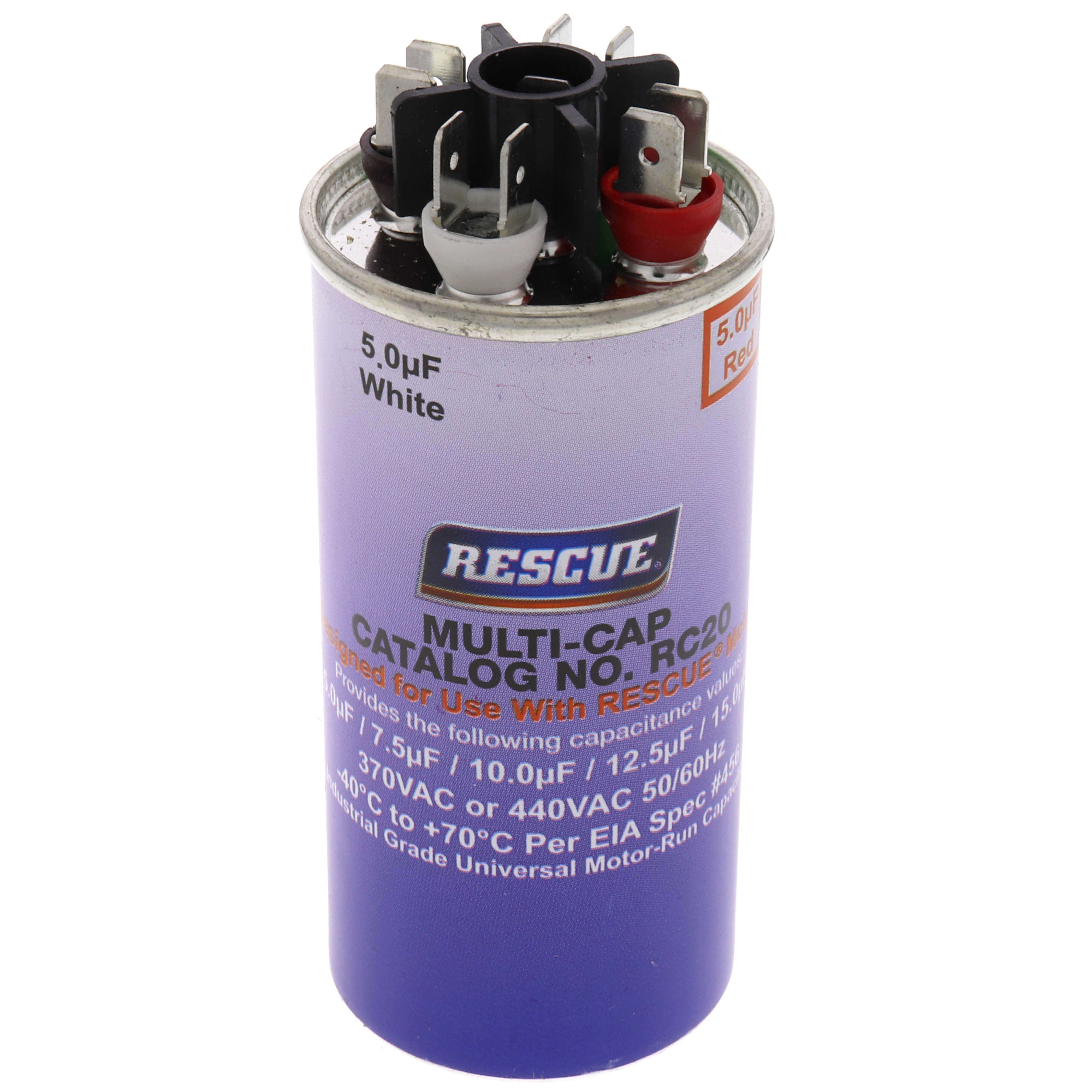

Us Motors RC20 20 MFD Rescue Round Multi Capacitor (440/370V)

Product Description

The US MOTORS RC20 20 MFD RESCUE Round Multi Capacitor is designed for use with Multi-HP Rescue PSC Motors. It provides capacitance values from 2.5µF to 20.0µF and is rated for 370VAC or 440VAC at 50/60Hz. This industrial-grade universal motor-run capacitor operates in temperatures from -40°C to +70°C.

• Use with Multi-HP Rescue PSC Motors
• Jumper Wires Included
• Designed For Use With RESCUE® Motors

Product Highlights

Industrial grade universal motor-run capacitor with a capacitance range of 2.5µF to 20.0µF. Designed for use with RESCUE® motors.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: RC20
• Country of Origin: USA

Technical Specifications

• Capacitance Values: 2.5µF / 5.0µF / 7.5µF / 10.0µF / 12.5µF / 15.0µF / 20.0µF
• Voltage: 370VAC or 440VAC
• Frequency: 50/60Hz
• Temperature Range: -40°C to +70°C
• Application: Industrial Grade Universal Motor-Run
• Part Number: RC20
• Input Frequency: 60 Hz
