Us Motors m055tzg0094015b Ecm Fan Motor 0.5 Hp 1075 Rpm

Product Description

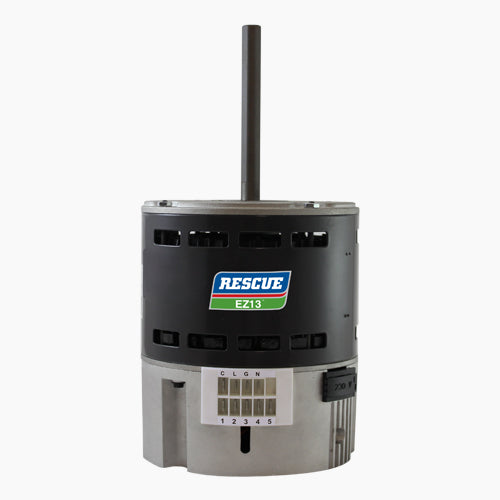

The US MOTORS m055tzg0094015b is a 0.5 HP electronically commutated motor (ECM) designed as a direct drive fan motor for forced-air HVAC systems. Running at 1075 RPM on a single speed, it operates on dual voltage — 115 volts or 208-230 volts — at 60 Hz, with 50 Hz support as well. The motor features an OPAO enclosure, a 48-frame body, and reversible rotation, eliminating the need for programming or manual rotation setup at installation. Full load amperage is rated at 6.3/4.0-3.8 amps depending on voltage configuration. At 13 pounds, it is built for residential and light commercial air handler and furnace blower applications.

This motor is suited for residential and light commercial forced-air systems where an ECM direct drive blower motor is required. It is positioned as a universal replacement for Selectech X13 and EnduraPro platforms, with auto-sensing rotation capability that makes it ready to install without additional configuration. It fits standard 48-frame blower assemblies and is appropriate for use in gas furnaces, air handlers, and fan coil units requiring a single-speed ECM blower motor.

Key Features

• Universal ECM replacement compatible with Selectech X13 and EnduraPro auto-sensing rotation systems
• Dual voltage operation: 115 volts or 208-230 volts, supporting both 60 Hz and 50 Hz
• Reversible rotation with auto-sensing — no programming required at installation
• OPAO motor enclosure rated for ambient temperatures up to 40 degrees C
• Class B insulation with electronically protected thermal protection
• 48-frame, 10-pole brushless permanent magnet motor with ball bearings at both shaft and opposite ends

Compatibility

Designed as a universal ECM direct drive fan motor replacement for Selectech X13 and EnduraPro platforms with auto-sensing rotation. Fits standard 48-frame direct drive blower assemblies in residential and light commercial forced-air HVAC equipment.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler or furnace before removing the existing blower motor. Verify voltage configuration matches the system supply voltage before wiring. Consult the equipment wiring diagram and applicable local codes to ensure correct electrical connections.

Technical Specifications

• Horsepower: 0.5 HP
• RPM: 1075
• Number of Speeds: 1
• Voltage: 115/208-230 volts
• Full Load Amps: 6.3/4.0-3.8 amps
• Frequency: 60 Hz / 50 Hz
• Phase/Motor Type: Single-phase brushless permanent magnet ECM
• Frame: 48
• Poles: 10
• Rotation: Reversible
• Motor Enclosure: OPAO
• Insulation Class: B
• Thermal Protection: Electronically protected
• Bearing Type (Shaft End): Ball
• Bearing Type (Opposite End): Ball
• Ambient Temperature Rating: 40 degrees C
• Stack: 1.125 inches
• Weight: 13 pounds

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: m055tzg0094015b
