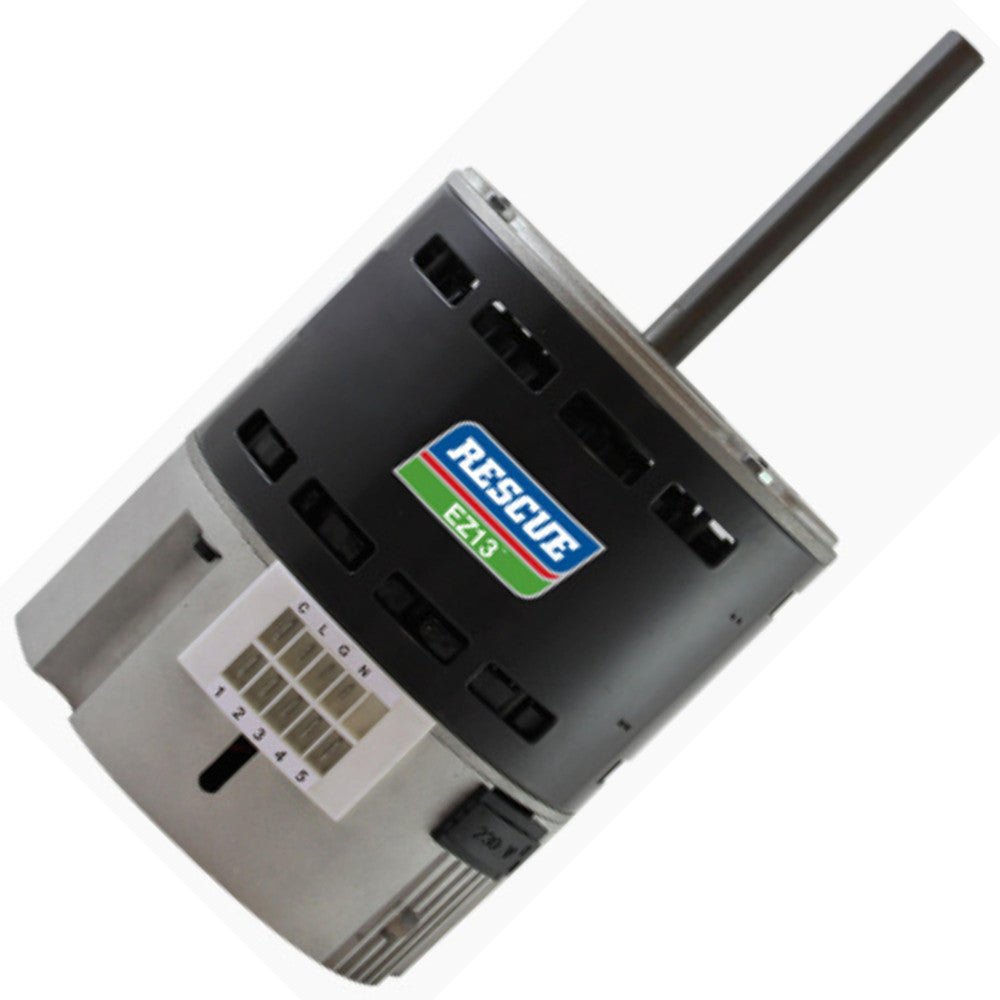

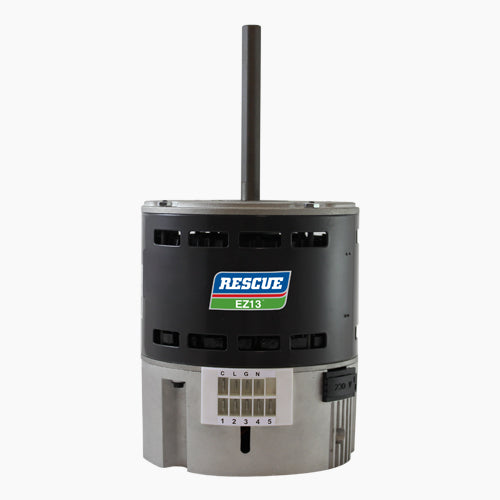

Us Motors M055TZF0093015B Rescue EZ13 ECM Dual Voltage Direct Drive Fan

Product Description

The US MOTORS M055TZF0093015B Rescue EZ13 ECM is a dual voltage direct drive fan. This motor is a universal ECM replacement for Selectech X13 and EnduraPro. It features auto-sensing rotation and is ready to install with no programming required. Operates at 1075 RPM with a 3/4 HP and is suitable for 115/208-230V applications.

• Dual Voltage
• Direct Drive Fan
• Universal ECM Replacement for Selectech X13 and EnduraPro
• Auto-Sensing Rotation
• Ready to install

Product Highlights

The US MOTORS Rescue EZ13 ECM is a versatile motor designed for easy installation and broad compatibility.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: M055TZF0093015B

Technical Specifications

• Model_Number: M055TZF0093015B
• PRODUCT NAME: MOTOR
• PHASETYPE: 1_BRUSHLESS PERMANENT MAGNET
• MOTOR ENCLOSURE: OPAO
• HORSEPOWER: 3/4 HP
• KILOWATTS: 0.6
• POLES: 10
• NUMBER SPEEDS: 1
• RPM: 1075 / VAR SPD
• HERTZ: 60&50
• VOLTS PRIMARY: 115/208-230 V
• FRME: 48
• SHAFT CODE: Y
• STACK: 1.55
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: BALL
• SHAFT END BEARING: BALL
• AMBIENT: 40
• ROTATION: REVERSIBLE
• THERMAL PROTECTION: ELECTRONICALLY PROTECTED MOTOR
• INSULATION CLASS: B
• FULL LOAD AMPS PRIMARY: 9.3/5.8-5.4 & 9.3/5.8-5.4
• Frequency Rating: 50/60 Hz
• Motor Phase: 1 ph
• Synchronous Rpm: 1200 rpm
• Motor Supply Voltage: 115 V
• Frame Size: 48Y
• Base RPM: 1075 rpm
• Motor Poles: 10
