Us Motors M055AYE3643015B 1 / 1/3 hp, 1075 / var spd, 5860, 115/208-230 v, 60 & 50 hz, 48y electrical motor

Product Description

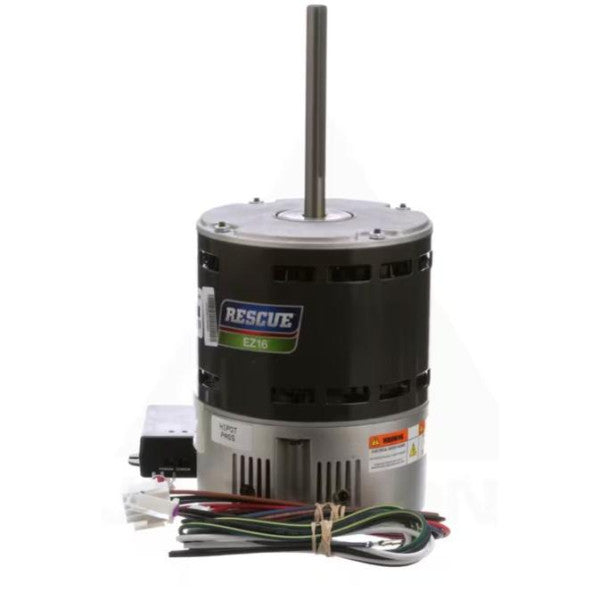

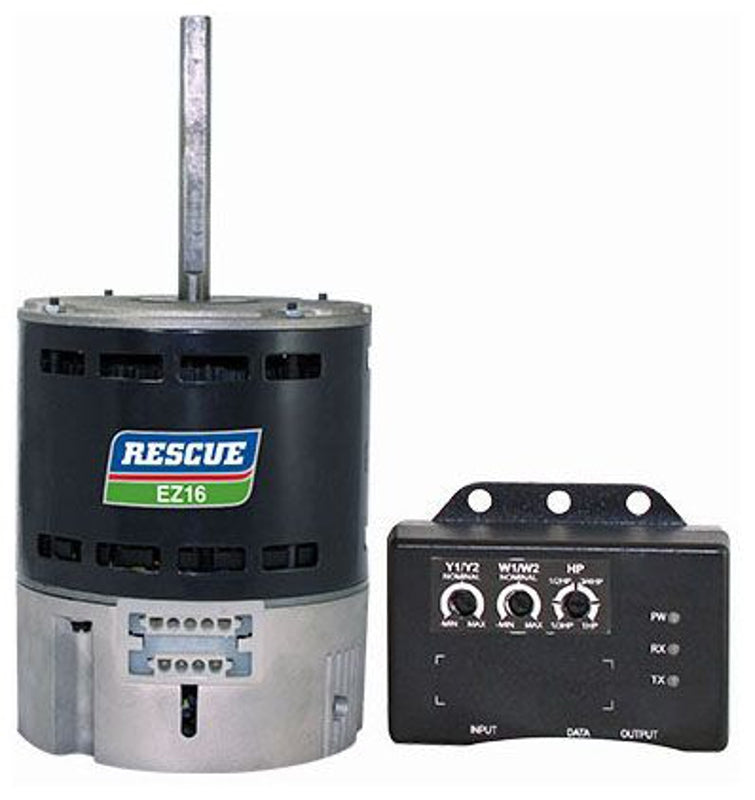

The US MOTORS M055AYE3643015B is a 1 / 1/3 HP, 1075 / VAR SPD, 5860, 115/208-230 V, 60 & 50 HZ, 48Y electrical motor. This direct drive blower features a RESCUE® EZ16™ ECM and is a 16-Pin Replacement for ECM 2.0 2.3 EON. It has adjustable airflow at the point of installation and is field tunable with an EZ Interface.

• Direct Drive Blower
• RESCUE® EZ16™ ECM
• 16-Pin Replacement for ECM 2.0 2.3 EON

Product Highlights

This US MOTORS electrical motor is electronically protected and reversible, with an OPAO motor enclosure and class B insulation.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: M055AYE3643015B
• Country of Origin: Mexico

Technical Specifications

• Type: Blower Motors
• Collection: RESCUE
• Model: M055AYE3643015B
• SKU: G5860
• Reference: G5860
• Condition: New
• UPC-EAN: 688456904952
• Sales Unit: EA
• Origin: Mexico
• US Tariff Code: 8501.20.6000
• Base Unit: EA
• Brand: US Motors
• HORSEPOWER: 1/3
• POLES: 10
• NUMBER SPEEDS: 1
• RPM: 1075
• HERTZ: 60
• HERTZ 2: 50
• VOLTS PRIMARY: 115/208-230 V
• FRME: 48Y
• MOTOR TYPE: FHP
• ROTATION: REVERSIBLE
• THERMAL PROTECTION: ELECTRONICALLY PROTECTED MOTOR
• INSULATION CLASS: B
• FULL LOAD AMPS PRIMARY: 12.1/7.6-7.1
