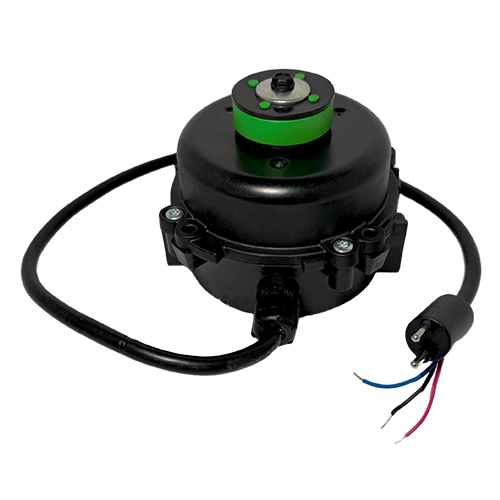

Us Motors M035TBT1005015B rescue ecm refrigeration motor 4-25w 115v-230v EC5414N

Product Description

The US MOTORS M035TBT1005015B is a 4-25W Rescue ECM refrigeration motor designed for universal replacement in refrigeration and evaporation condenser applications. This reversible motor operates on 115V-230V, features a TEAO enclosure, and a 33 frame, ensuring robust performance in various environments.

• Reversible rotation for versatile application.
• IP67 rated for dust-tight and all-angle moisture protection.
• Universal mounting with standard 3-hole style and Hussmann 4-hole options.

Product Highlights

This motor offers high efficiency, thermal protection, and a robust ball bearing system for reliable operation.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: M035TBT1005015B

Technical Specifications

• Part Number: M035TBT1005015B
• Replacement MPN: EC5414N
• Input Voltage: 115-230V
• Motor Type: FHP
• Rotation: Reversible
• Power Output: 4-25W
• Full Load Amps: 0.22-0.75A/0.15-0.45
• Operating Temperature: -40°C to 55°C
• Number of Speeds: Variable
• Motor Enclosure: TEAO
• Thermal Protection: Electronically Protected
• Frequency: 60 Hz
• Mounting Type: Universal
• Frame Size: 33
• RPM: 1550/1650
• Phase Type: 1_Brushless Permanent Magnet
• Poles: 4
• Service Factor: 1
• IP Rating: IP67
• Shaft Thread: 1/4-20
• Frame Material: Aluminum
• Bearing Type: Ball Bearing
