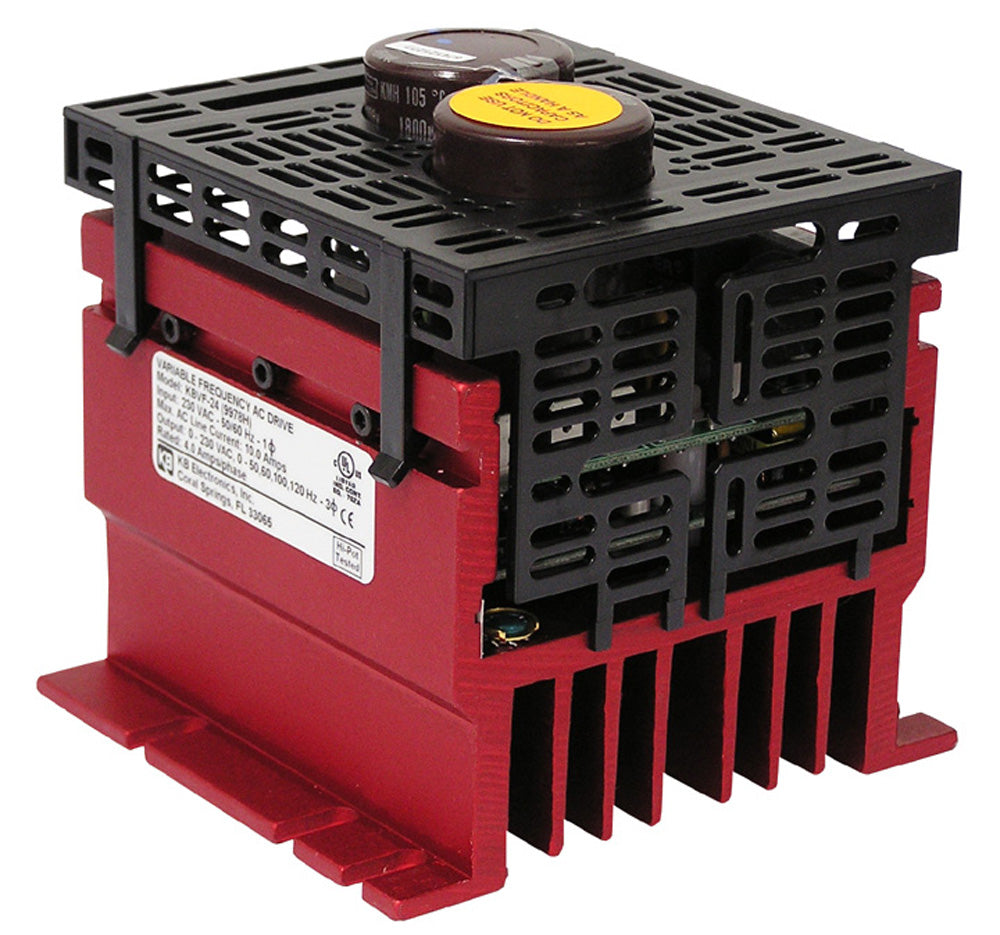

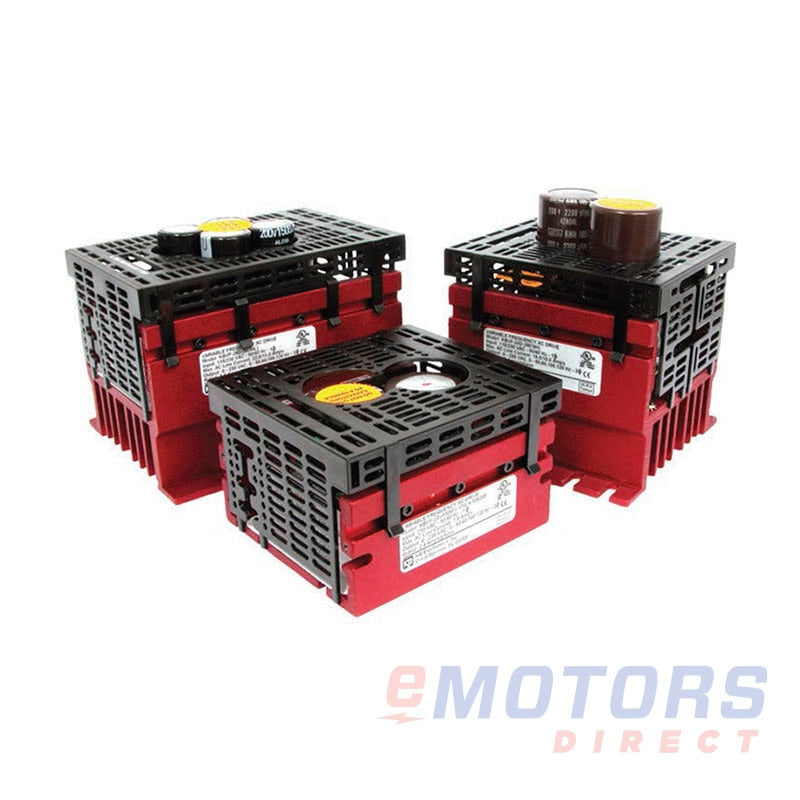

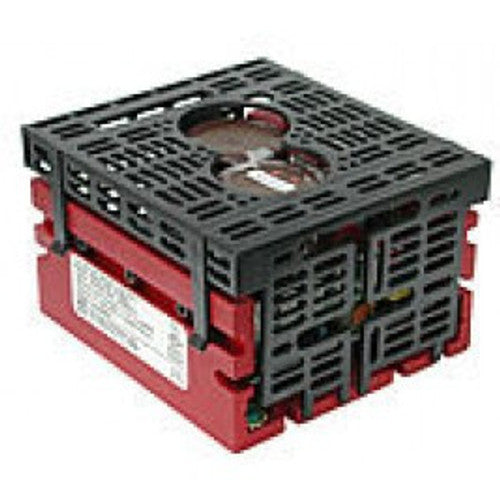

US Motors KBVF-24D Variable Frequency Drive

Product Description

The US Motors KBVF-24D is an adjustable frequency drive used to control 3-Phase AC and PSC induction motors. This drive supports motors up to 1 horsepower and is ideal for machine or variable torque operations. It features an open chassis with an IP20 enclosure and is suitable for OEM applications.

• Designed for 3-Phase AC and PSC induction motors.
• Maximum supported motor power: 1 HP.
• Open chassis with IP20 enclosure.

Product Highlights

The KBVF-24D is efficient and easy to install, making it a suitable choice for various applications that do not require complex programming.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer Part Number: KBVF-24D

Technical Specifications

• HP (Constant Torque Rating): 1.0 hp
• Maximum HP: 1
• Input Voltage: 98-132 VAC, 177-264 VAC
• Output Voltage: 200-240 V
• Input Phase: 1
• Output Phase: 3
• Output Current: 4.0 A
• Braking Type: DC Injection
• Closed Loop: No
• AC Line Regenerative: Yes
• IP Rating: IP20
• Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
• Mounting: Panel
• Enclosure: Chassis
• Dimensions: 4.3 x 4.7 x 5 inches
• Weight: 3 lb
• Operating Temperature: 0 to 45 °C
• Agency Approvals: cUL & CE
• Frequency Range: 50-60 Hz
