Description

Product Description

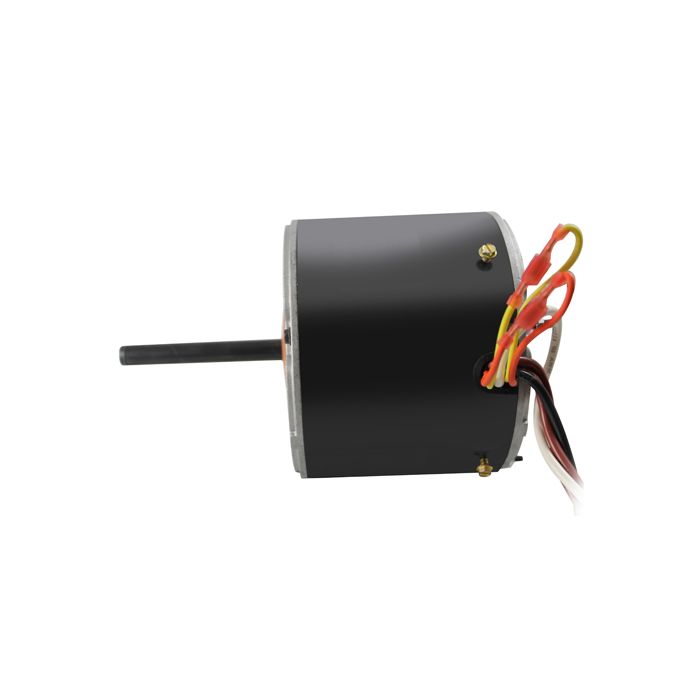

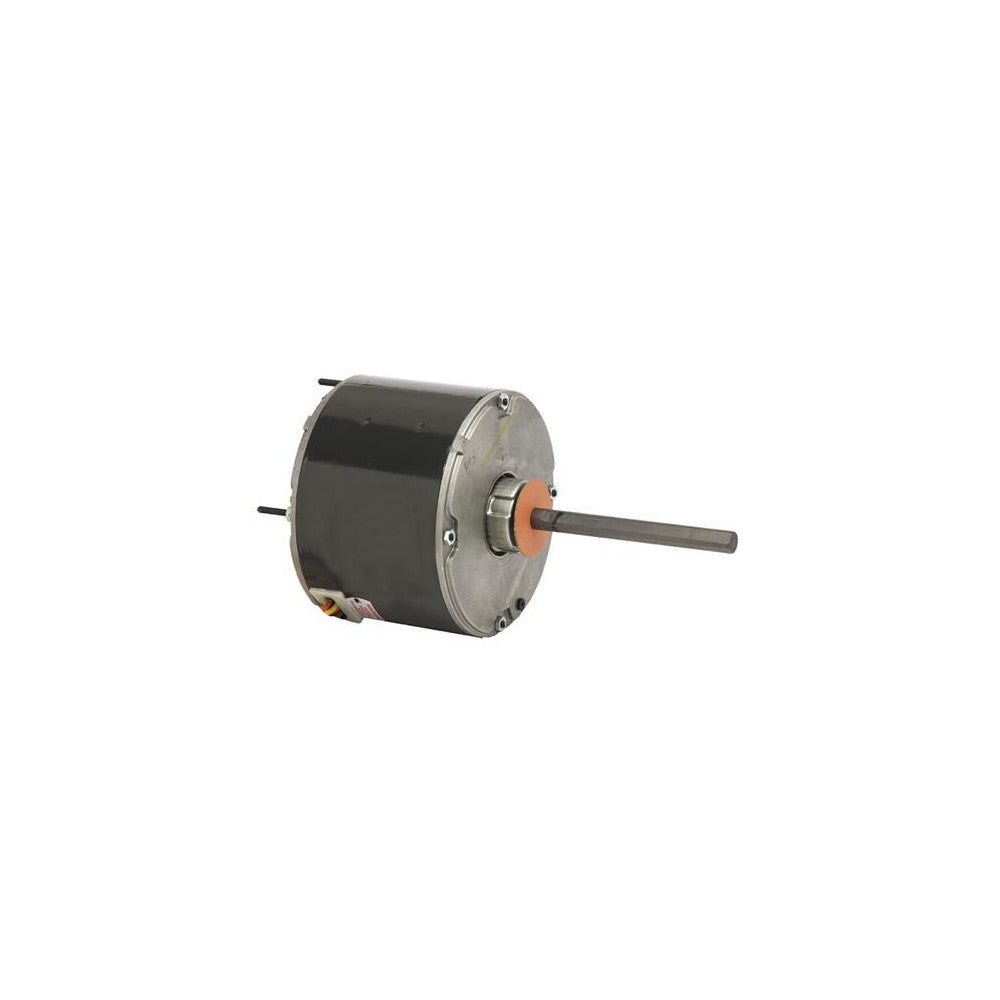

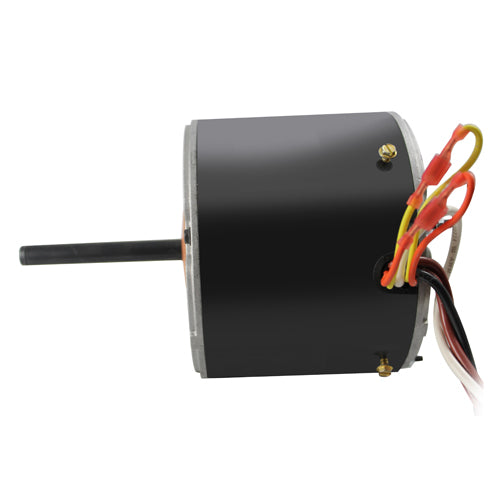

The US MOTORS K055WMR1279012B motor is a permanent split capacitor condenser fan motor with a 5.6" diameter and a totally enclosed air over design. It is designed to operate in ambient temperatures up to 140°F (60°C) and delivers 1/6 horsepower. This motor is suitable for residential and commercial condenser fan applications.

  • Permanent Split Capacitor
  • Condenser Fan
  • 5.6" Dia. Totally Enclosed Air Over
  • 140°F (60°C) Ambient Design

Product Highlights

This US Motors condenser fan motor features automatic reset thermal protection, continuous duty, and reversible rotation.

Product Information

Standard Information

  • Brand: US MOTORS
  • Manufacturer Part Number: K055WMR1279012B
  • Country of Origin: MEX
Technical Specifications
Model_Number
K055WMR1279012B
PRODUCT NAME
MOTOR
PHASETYPE
1_PERMANENT SPLIT CAPACITOR
MOTOR ENCLOSURE
TEAO
Horsepower
1/6 HP
KILOWATTS
0.1
POLES
6
NUMBER SPEEDS
1
RPM
1075 RPM
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
0.875
MOUNTING
STUD/BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
6201
SHAFT END BEARING
6201
AMBIENT
60
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
17.09
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
6.179
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
1.98
FULL LOAD AMPS PRIMARY
1.0
Frame Size
48Y
Voltage
208/230
Type
HVAC Motors
Web Type
US HVAC Motors
Web Brand
US Motors
Manufacturer
US Motors - Nidec
Fuel Type
Electric
Engine/Motor Type
Totally Enclosed Air Over (TEAO)
Phase
Single-Phase
Frequency
60 Hz
Rated Current
1 Amps
NEMA Frame
48Y
Model
K055WMR1279012B
Motor Phase
1 ph
Synchronous Rpm
1200 rpm
Motor Supply Voltage
208-230 V
Enclosure Type
TEAO (Totally Enclosed Air Over)
Frequency Rating
60 Hz
Base RPM
1075 rpm
Duty Condition Type
Continuous Air Over
Mounting Type
Hub / Stud
Full Load Current
1.00 A
Motor Poles
6
Description Keyword
1/6 hp
Shaft Diameter
0.5000 in
Overall Length C Dimension
33 in
Standards Met
NEMA
Applications
Residential and Commercial Condensing Unit Fan Motors to Meet Manufacturer's Requirements
Harmonization Code
8501.40.3040
Manufacturer Upc Number
786382001681
Motor Category
Condenser Fan Motor
Max Allowable Current
1 A
Product Types
AC Motors
Opposite Drive End Bearing
Self-Align
Product Type
General Purpose Motors
