Us Motors K055WML1257012B Nidec Motor 0.33 HP OAO 1075 RPM

Product Description

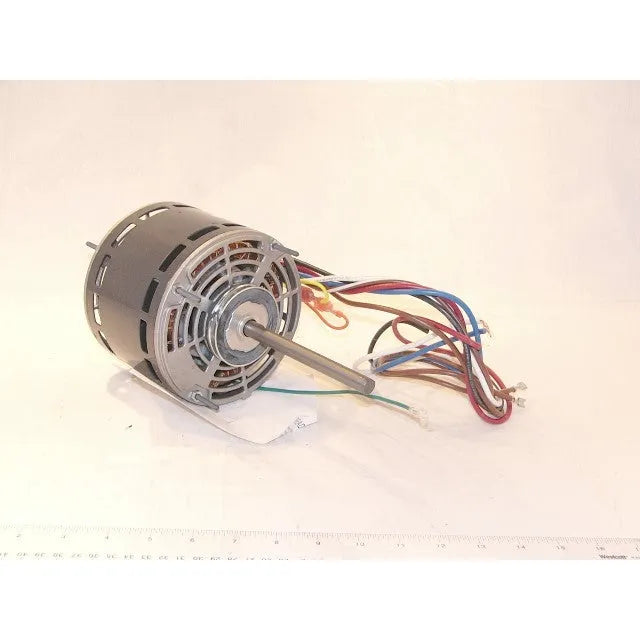

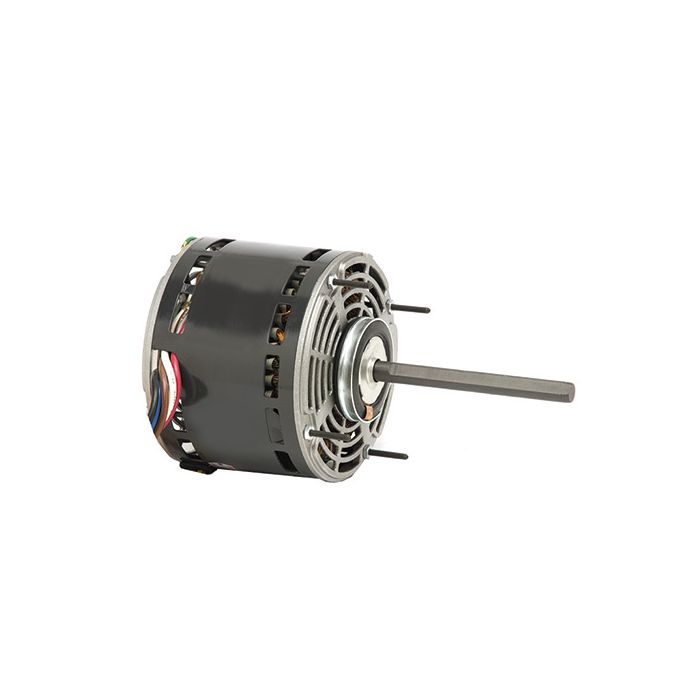

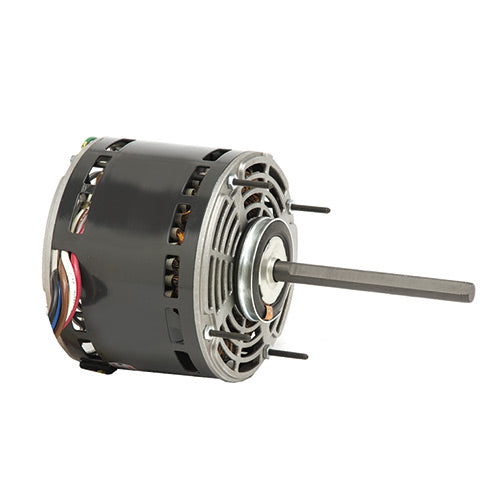

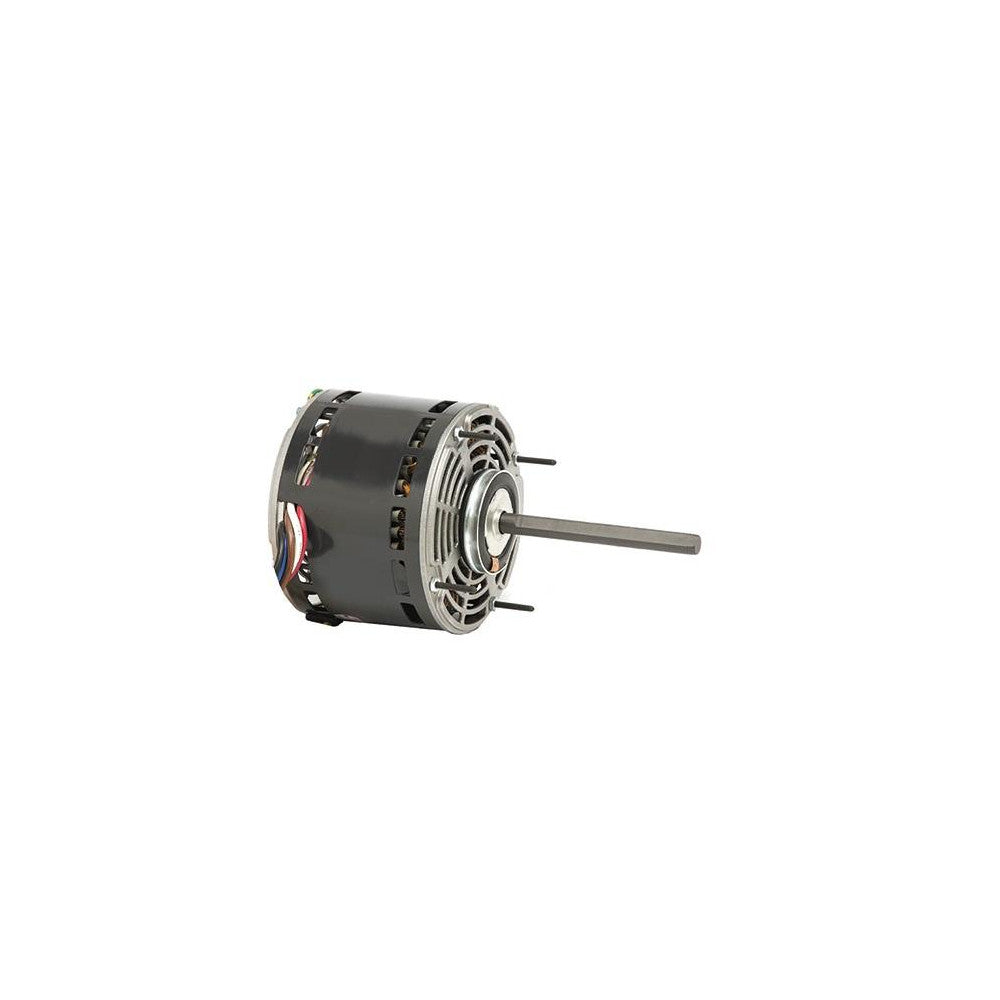

The US Motors K055WML1257012B Nidec Motor is a 0.33 HP motor with an Open Air Over (OAO) enclosure and a speed of 1075 RPM. It is designed for direct drive fan and blower applications, featuring a permanent split capacitor and 3-speed functionality. This motor is suitable for stud or hub ring mounting.

• Permanent Split Capacitor
• Direct Drive Fan & Blower
• 5.6" Dia. Open Air Over (OAO)

Product Highlights

Ideal for HVAC systems, this motor provides efficient and reliable performance in a compact design.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055WML1257012B

Technical Specifications

• Manufacturer: US Motors - Nidec
• SKU: 1972
• Model Number: K055WML1257012B
• Engine/Motor Type: Open Air Over (OAO)
• Horsepower: 0.33 HP
• Phase: Single-Phase
• Voltage: 208 Volt (Single-Phase), 230 Volt (Single-Phase)
• Frequency: 60 Hz
• Rated Current: 1.9 Amps
• Poles: 6
• NEMA Frame: 48Y
• RPM: 1075
• KILOWATTS: 0.3
• NUMBER SPEEDS: 3
• FRME: 48
• SHAFT CODE: Y
• STATOR DIAMETER: 5.5
• STACK: 1.5
• MOUNTING: BAND/HUB/STUD
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: SAB
• SHAFT END BEARING: SAB
• AMBIENT: 40
• ROTATION: CCW LEAD END REV
• SERVICE FACTOR: 1
• RUNCAPMFD: 7.5
• RUNCAPVOLTS: 370
• THERMAL PROTECTION: AUTOMATIC RESET
• BREAKDOWN TORQUE: 38.7
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 12.48
• LOCKED ROTOR TORQUE UOM: OZFT
• INSULATION CLASS: B
• LOCKED ROTOR AMPS: 4.09
• FULL LOAD AMPS PRIMARY: 1.9
• Enclosure: OAO (Open Air Over)
• Bearings: 6201 (Both Ends)
• Ambient Temperature: 40 °C
• UPC-EAN: 786382002138
