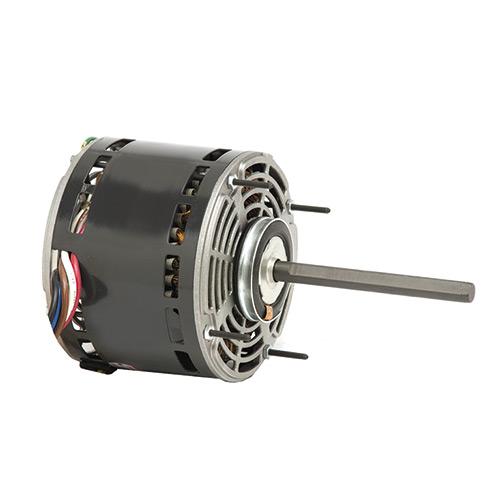

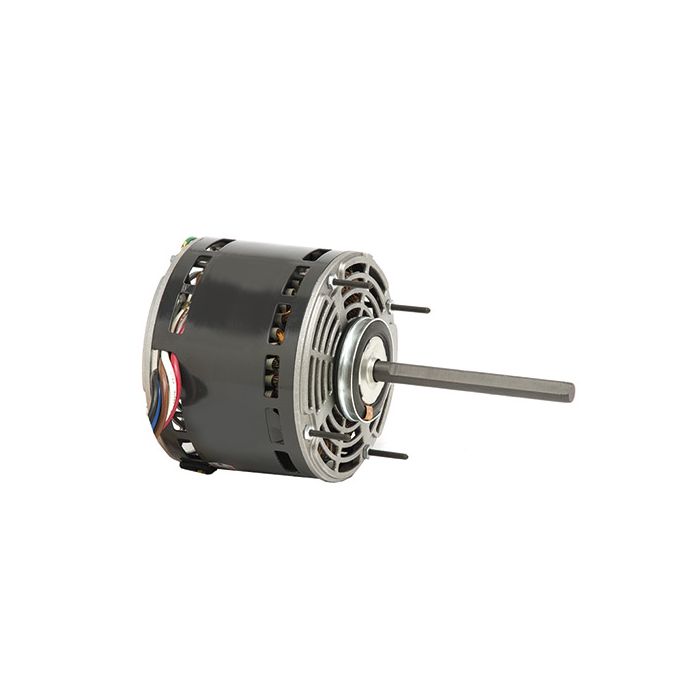

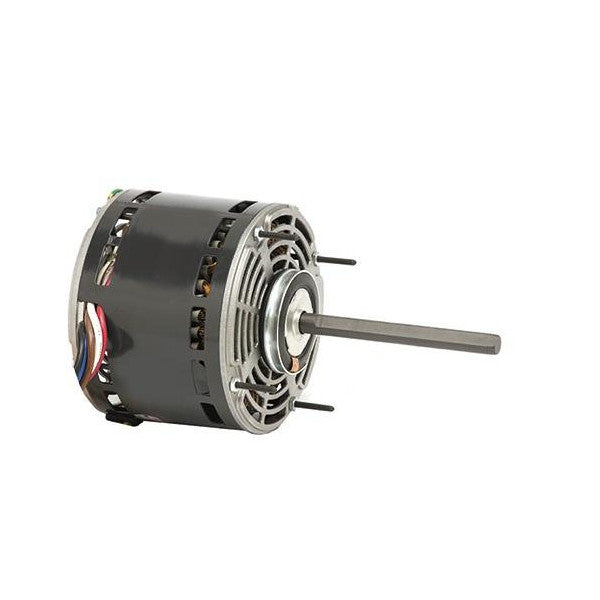

Us Motors K055WMH1251012B 1/4 hp Motor 1075/3spd

Product Description

The US MOTORS K055WMH1251012B is a 1/4 HP fractional horsepower motor with a speed of 1075 RPM. This single-phase motor is designed with open air over enclosure and automatic reset thermal protection. It features a reversible rotation and operates at 208–230 V and 60 Hz. Designed for direct drive fan and blower applications.

• Horsepower: 1/4 HP (0.2 kW)
• Rotation: CCW Lead End (Reversible)
• Enclosure: OAO (Open Air Over)

Product Highlights

The K055WMH1251012B motor is suitable for use in various HVAC applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055WMH1251012B

Technical Specifications

• Model Number: K055WMH1251012B
• Horsepower: 1/4 HP (0.2 kW)
• Voltage: 208–230 V
• RPM: 1075
• Frame Size: 48
• Stator Diameter: 5.5"
• Stack Length: 1.25"
• Shaft Code: Y
• Bearing Type: Self-Align (Both Ends)
• Rotation: CCW Lead End (Reversible)
• Thermal Protection: Automatic Reset
• Run Capacitor: 7.5 MFD / 370V
• Service Factor: 1.0
• Insulation Class: B
• Ambient Temperature: 40 °C
• Breakdown Torque: 31.32 oz-ft
• Locked Rotor Torque: 13.67 oz-ft
• Amperage (Locked Rotor): 3.23 A
• Speeds: 3-Speed
• Frequency: 60 Hz
• Phase: Single Phase
• Motor Type: FHP (Fractional Horsepower Motor)
• Enclosure: OAO (Open Air Over)
• Mounting: Band / Hub / Stud
• Manufacturer: US Motors - Nidec
• Fuel Type: Electric
• Engine/Motor Type: Open Air Over (OAO)
• Rated Current: 1.5 Amps
• Poles: 6
• NEMA Frame: 48Y
• Amps: 1.5
• Capacitor: 7.5MFD/370VAC
• Maximum Ambient Temperature: 40° C
• Number of Speeds: 3
• Product Type: PSC (Permanent Split Capacitor)
• Volts: 230
