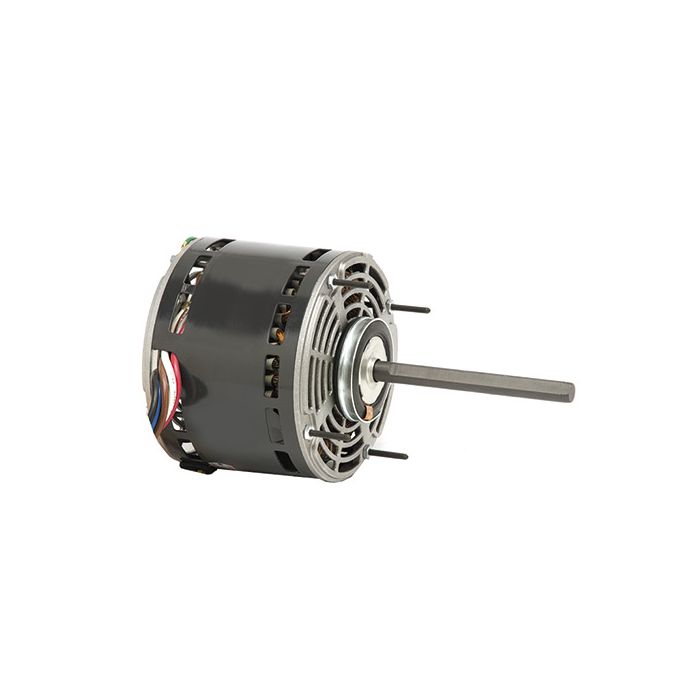

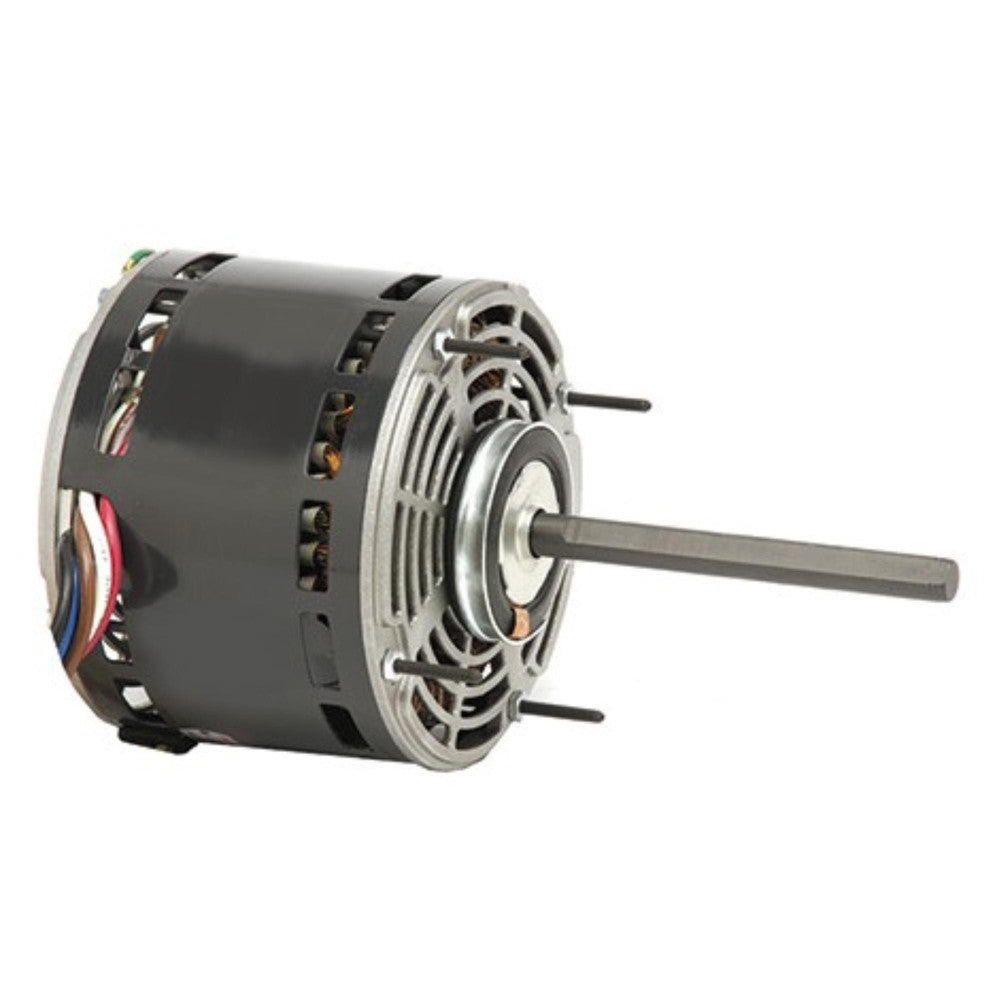

Us Motors K055WMG1245012B Motor 1/3 HP 1075 RPM

Product Description

The US MOTORS K055WMG1245012B motor is a 1/3 HP, 115V, 3-speed motor with a speed of 1075 RPM. This FHP (Fractional Horsepower Motor) features an Open Air Over (OAO) enclosure and is designed for direct drive fan and blower applications. It has automatic reset thermal protection and a 7.5 MFD / 370V run capacitor.

• Horsepower: 1/3 HP (0.3 kW)
• Rotation: CCW Lead End (Reversible)
• Enclosure: OAO (Open Air Over)

Product Highlights

This US Motors motor is suitable for direct drive fan and blower applications. It features a 3-speed functionality and reversible rotation.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055WMG1245012B

Technical Specifications

• Model Number: K055WMG1245012B
• Horsepower: 1/3 HP
• Voltage: 115 V
• Full Load Amps: 5.0 A
• RPM: 1075
• Speeds: 3-Speed
• Frequency: 60 Hz
• Phase: Single Phase
• Motor Type: FHP
• Enclosure: OAO
• Mounting: Band / Hub / Stud
• Frame Size: 48
• Stator Diameter: 5.5"
• Stack Length: 1.5"
• Shaft Code: Y
• Bearings: 6201 (Both Ends)
• Rotation: CCW Lead End (Reversible)
• Thermal Protection: Automatic Reset
• Run Capacitor: 7.5 MFD / 370V
• Service Factor: 1
• Insulation Class: B
• Ambient Temperature: 40 °C
• Breakdown Torque: 41.64 oz-ft
• Locked Rotor Torque: 10.59 oz-ft
• Locked Rotor Amps: 10.82 A
• Poles: 6
