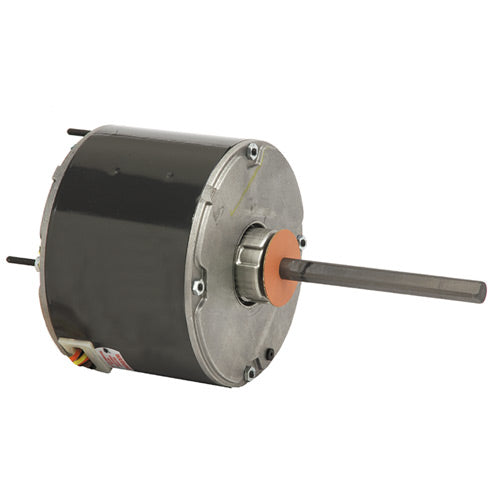

Us Motors K055TMT9568862B 1870 .5 HP TEAO 825 RPM 208-230V 48YZ Frame

Product Description

The US MOTORS K055TMT9568862B is a .5 HP TEAO condenser fan motor designed for HVAC applications. This motor features a 5.6" diameter and is suitable for use with 370V capacitors. It has automatic reset thermal overload protection and is designed for continuous duty with reversible rotation. Operates at 208-230V and 825 RPM.

• Permanent Split Capacitor
• Totally Enclosed Air Over (TEAO)
• Automatic Reset Thermal Overload Protector

Product Highlights

Designed for residential and commercial condenser units, this motor meets manufacturer requirements and offers reliable performance.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055TMT9568862B
• Country of Origin: MEX

Technical Specifications

• Model#: 1870
• Catalog#: K055TMT9568862B
• HP: 0.50
• RPM: 825
• Frame Size: 48YZ
• Voltage: 208/230
• Type: HVAC Motors
• Motor Type: TEAO
• Web Brand: US Motors
• Amps: 2.8
• Bearings: Ball
• Capacitor: 12.5MFD/370VAC
• Efficiency: 69.8%
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Frame: 48Y
• Hz: 60
• Insulation Class: B
• Maximum Ambient Temperature: 60° C
• Mounting Orientation: All Angle
• Mounting: Stud
• Number of Speeds: 1
• Phase: 1
• Product Type: PSC (Permanent Split Capacitor)
• Rotation: Reversible
• Service Factor: 1.00
• Thermal Protection: Automatic
• Motor Phase: 1 ph
• Motor Horsepower: 1/2 hp
• Synchronous Rpm: 900 rpm
• Motor Supply Voltage: 208-230 V
• Frequency Rating: 60 Hz
• Base RPM: 825 rpm
• Duty Condition Type: Continuous Duty
• Full Load Efficiency: 69.8 %
• Motor Poles: 8
• Overall Length C Dimension: 12.3 in
• NEMA Design Class: N
• Frame Material: Steel
• Motor Category: Condenser Fan Motor
• Max Allowable Current: 2.8 A
• Product Types: AC Motors
• VOLTS PRIMARY: 208-230 V
• KILOWATTS: 0.4
• POLES: 8
• FRME: 48
• SHAFT CODE: YZ
• STATOR DIAMETER: 5.5
• STACK: 3
• OPPOSITE END BEARING: SELF-ALIGN
• SHAFT END BEARING: SELF-ALIGN
• AMBIENT: 60
• RUNCAPMFD: 12.5
• RUNCAPVOLTS: 370
• BREAKDOWN TORQUE: 79.77
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 12.51
• LOCKED ROTOR TORQUE UOM: OZFT
• KVA CODE LETTER: C
• LOCKED ROTOR AMPS: 6.55
• NEMA NOMINAL EFFICIENCY: 69.8
• FULL LOAD AMPS PRIMARY: 2.8
