Us Motors K055LMJ2478012B Rescue Ez-Wire Permanent Split Capacitor 1/3 / 1/6 HP REPLACEMENT ORM5458BU

Product Description

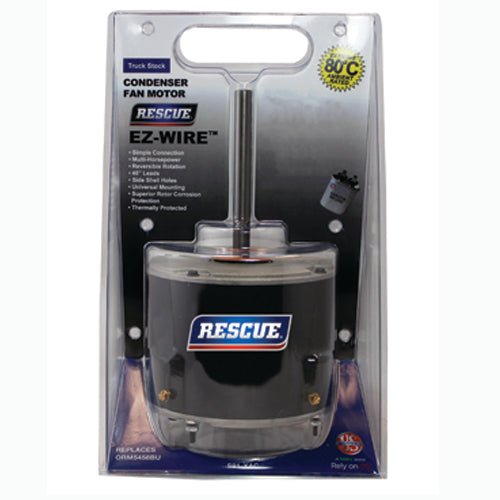

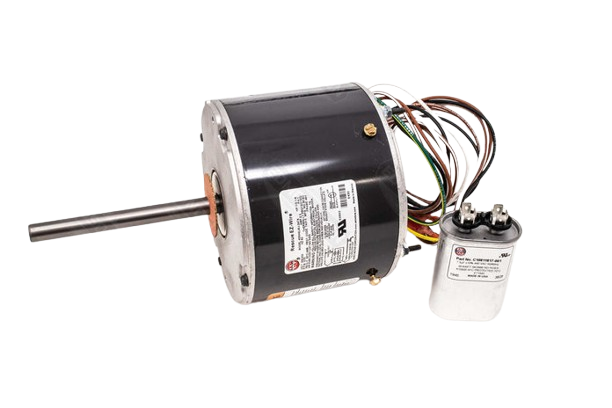

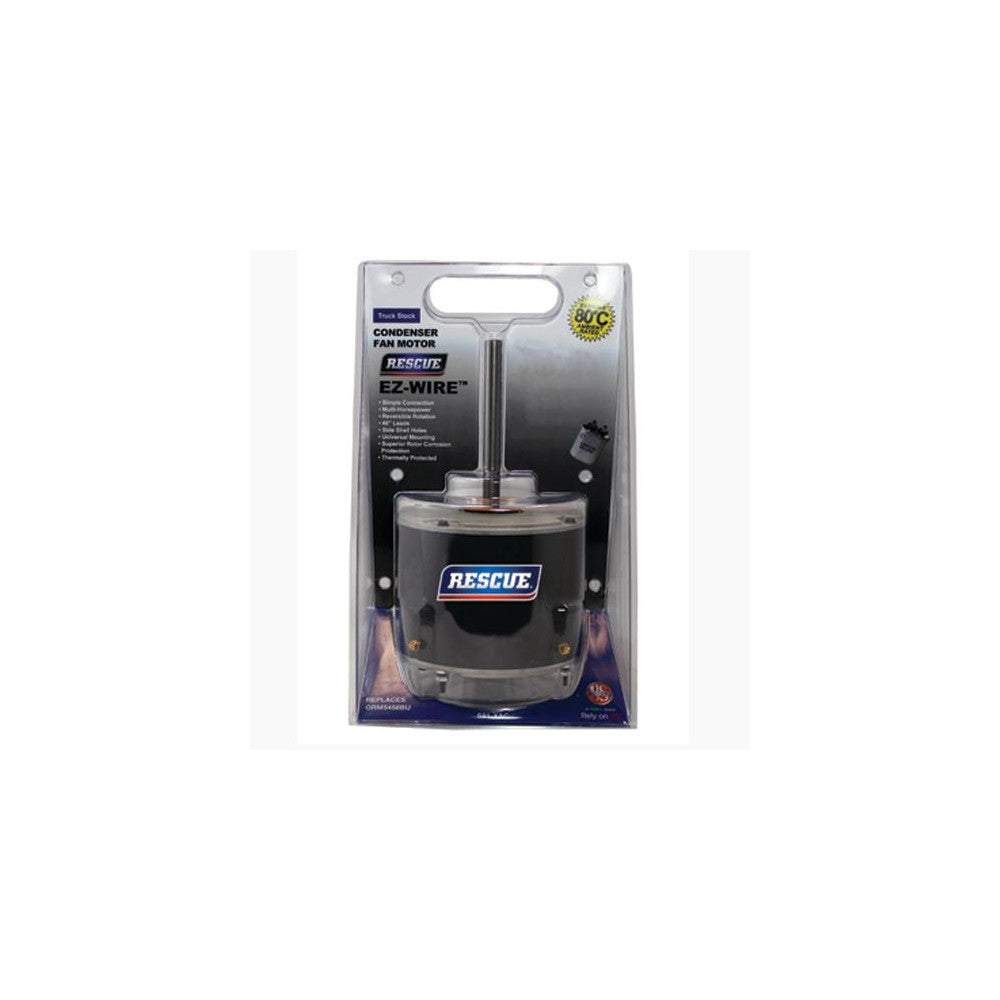

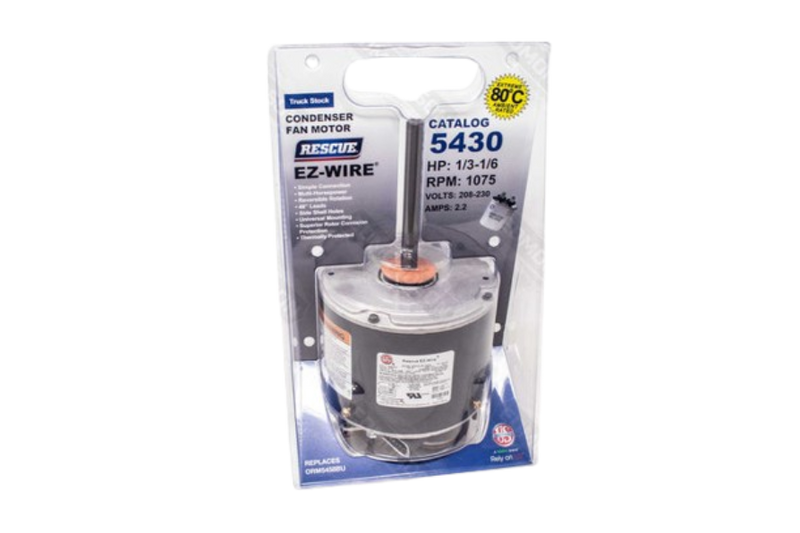

The US MOTORS K055LMJ2478012B Rescue Ez-Wire Permanent Split Capacitor is an 80°C high ambient condenser fan with a 5.6" diameter and a totally enclosed air over design. This multi-horsepower motor includes U.S.A. made capacitors and clear packaging. It is designed for general purpose use.

• Rescue Ez-Wire
• Permanent Split Capacitor
• 80°C High Ambient Condenser Fan

Product Highlights

This US Motors capacitor is ideal for condenser fan applications requiring a TEAO (Totally Enclosed Air Over) motor with multiple horsepower options.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055LMJ2478012B
• Country of Origin: USA

Technical Specifications

• Model_Number: K055LMJ2478012B
• PHASETYPE: 1_PERMANENT SPLIT CAPACITOR
• MOTOR ENCLOSURE: TEAO
• HORSEPOWER: 1/3 / 1/6 HP
• HORSEPOWER 2: 0.167
• KILOWATTS: 0.3
• POLES: 6
• NUMBER SPEEDS: 1
• RPM: 1075 RPM
• HERTZ: 60
• VOLTS PRIMARY: 208-230 V
• VOLTS: 208
• VOLTS 2: 230
• FRME: 48
• SHAFT CODE: Y
• STATOR DIAMETER: 5.5
• STACK: 1.5
• MOUNTING: STUD
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: 6201
• SHAFT END BEARING: 6201
• AMBIENT: 80
• ROTATION: CCW LEAD END REV
• SERVICE FACTOR: 1
• RUNCAPMFD: 7.5
• RUNCAPVOLTS: 370
• THERMAL PROTECTION: AUTOMATIC RESET
• BREAKDOWN TORQUE: 37.24
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 7.08
• LOCKED ROTOR TORQUE UOM: OZFT
• INSULATION CLASS: F
• LOCKED ROTOR AMPS: 4.29
• FULL LOAD AMPS PRIMARY: 2.2
• SERVICE FACTOR AMPS PRIMARY: 2.2
• Synchronous Rpm: 1200 rpm
• Frame Size: 48Y
• Frequency Rating: 60 Hz
• Base RPM: 1075 rpm
• Motor Poles: 6
• Manufacturer Upc Number: 786382117023
• UPC_NO: 786382117023
• Model: K055LMJ2478012B
• Product Type: General Purpose Motors
