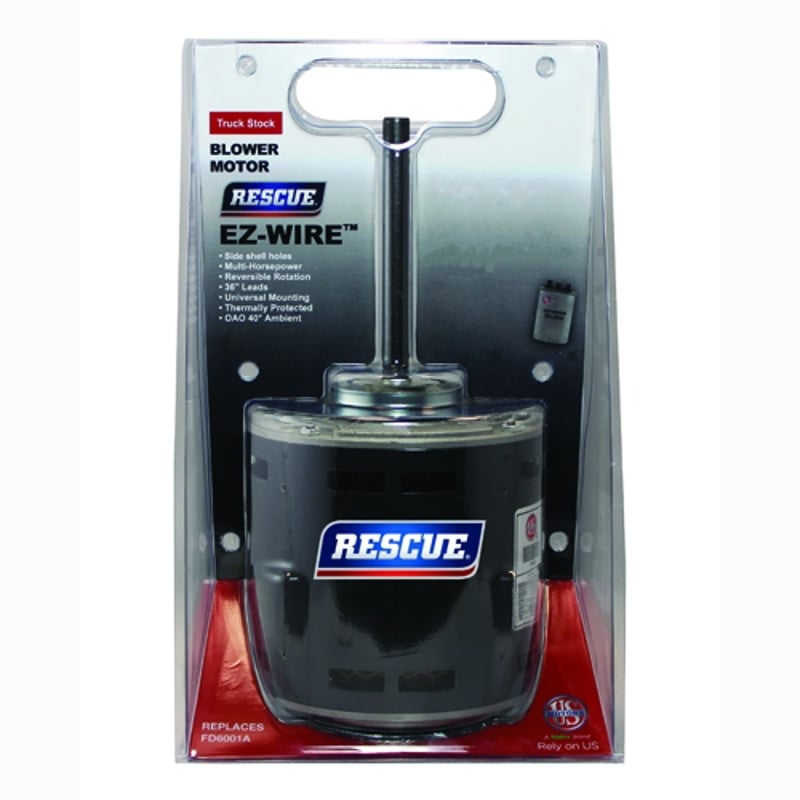

Us Motors K055KPR3346012B Rescue® Ez-Wire™ Permanent Split Capacitor Direct Drive Blower 1/2 HP

Product Description

The US MOTORS K055KPR3346012B is a Rescue® Ez-Wire™ permanent split capacitor direct drive blower motor. This 1/2 HP motor features an open air over (OAO) design and includes U.S.A. made capacitors. It operates at 208-230V and 60 Hz with a 48 frame and a 5.6" diameter.

• Permanent Split Capacitor
• Direct Drive Blower
• Multi-Horsepower
• U.S.A. made capacitors included

Product Highlights

This US Motors blower motor is designed for efficient air movement in various applications. It features automatic reset thermal protection and a CCW lead end rotation.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055KPR3346012B
• Country of Origin: USA

Technical Specifications

• Model_Number: K055KPR3346012B
• PRODUCT NAME: MOTOR
• PHASETYPE: 1
• MOTOR ENCLOSURE: OAO
• HORSEPOWER: 1/2 HP
• KILOWATTS: 0.4
• POLES: 6
• NUMBER SPEEDS: 4
• RPM: 1075 / 4 SPD
• HERTZ: 60
• VOLTS PRIMARY: 208-230 V
• FRME: 48
• SHAFT CODE: Y
• STATOR DIAMETER: 5.5
• STACK: 2.25
• MOUNTING: HUB
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: SELF-ALIGN
• SHAFT END BEARING: SELF-ALIGN
• AMBIENT: 40
• ROTATION: CCW LEAD END REV
• SERVICE FACTOR: 1
• RUNCAPMFD: 10
• RUNCAPVOLTS: 370
• THERMAL PROTECTION: AUTOMATIC RESET
• BREAKDOWN TORQUE: 53.44
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 10.75
• LOCKED ROTOR TORQUE UOM: OZFT
• INSULATION CLASS: B
• KVA CODE LETTER: A
• LOCKED ROTOR AMPS: 6.37
• FULL LOAD AMPS PRIMARY: 3.6
• SERVICE FACTOR AMPS PRIMARY: 3.6
