Us Motors K055KPF3337012B Nidec Motor 0.25 HP TEAO 825 RPM

Product Description

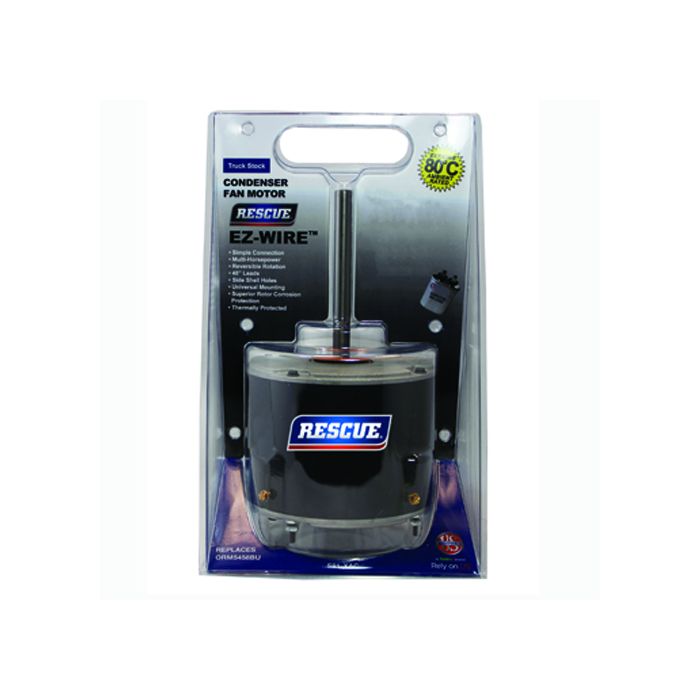

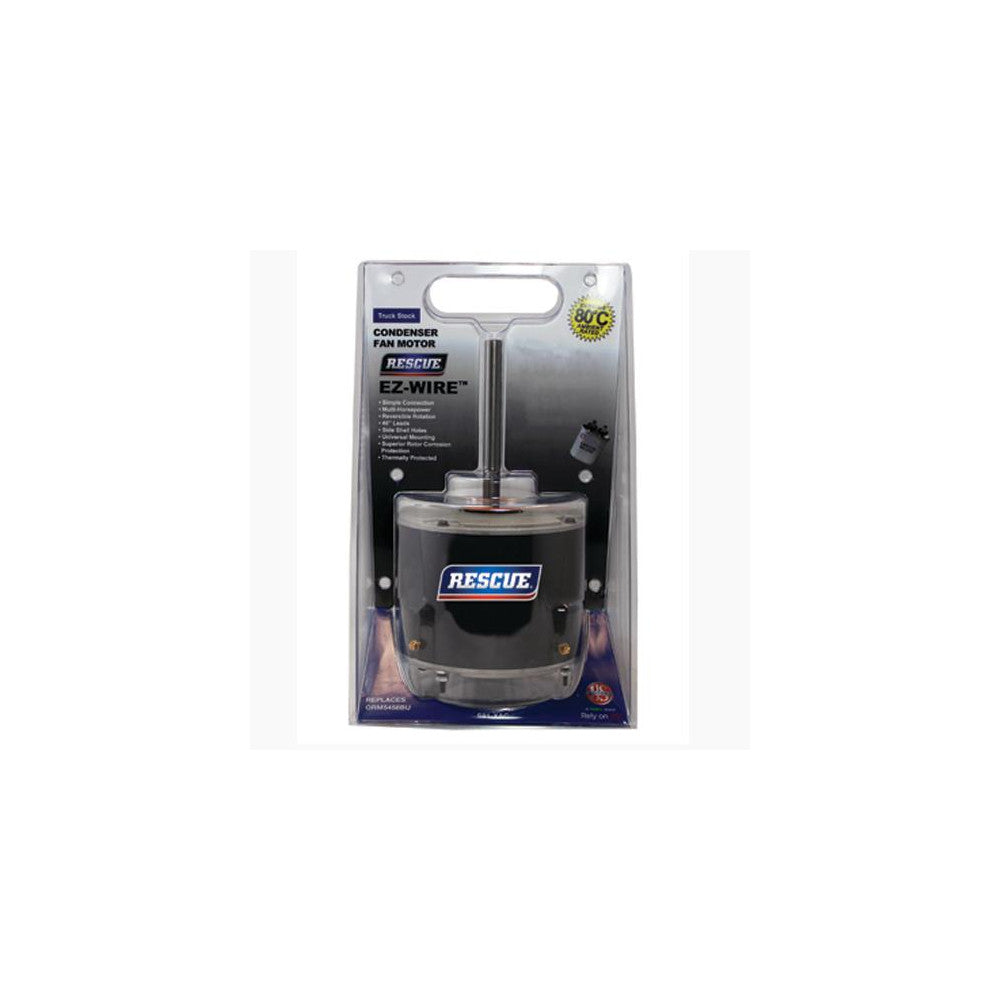

The US MOTORS K055KPF3337012B Nidec Motor is a 0.25 HP motor with a Totally Enclosed Air Over (TEAO) enclosure and a speed of 825 RPM. It is a single-phase motor designed for high ambient condenser fan applications. This motor includes U.S.A. made capacitors and features RESCUE EZ-Wire technology. It is suitable for various applications requiring a reliable and efficient motor.

• Totally Enclosed Air Over (TEAO) enclosure
• Single-Phase, 208-230V, 60 Hz
• 825 RPM, 8 Poles

Product Highlights

0.25 HP, TEAO enclosure, 825 RPM, single-phase motor with RESCUE EZ-Wire technology and U.S.A. made capacitors.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055KPF3337012B

Technical Specifications

• Manufacturer: US Motors - Nidec
• SKU: 5431
• Model Number: K055KPF3337012B
• Fuel Type: Electric
• Engine/Motor Type: Totally Enclosed Air Over (TEAO)
• Horsepower: 0.25 HP
• Phase: Single-Phase
• Voltage: 208-230 V
• Frequency: 60 Hz
• Rated Current: 2.1 Amps
• Poles: 8
• NEMA Frame: 48Y
• RPM: 825
• KILOWATTS: 0.2
• NUMBER SPEEDS: 1
• STATOR DIAMETER: 5.5
• STACK: 1.25
• MOUNTING: STUD
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: 6201
• SHAFT END BEARING: 6201
• AMBIENT: 80
• ROTATION: CCW LEAD END REV
• SERVICE FACTOR: 1
• RUNCAPMFD: 7.5
• RUNCAPVOLTS: 440
• THERMAL PROTECTION: AUTOMATIC RESET
• BREAKDOWN TORQUE: 38.55
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 8.307
• LOCKED ROTOR TORQUE UOM: OZFT
• INSULATION CLASS: F
• LOCKED ROTOR AMPS: 3.3
• FULL LOAD AMPS PRIMARY: 2.1
• SERVICE FACTOR AMPS PRIMARY: 2.1
