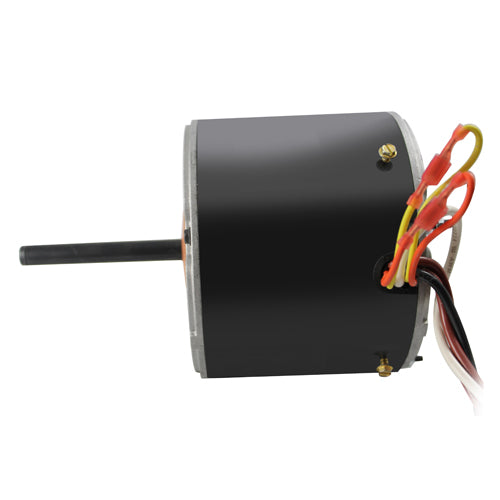

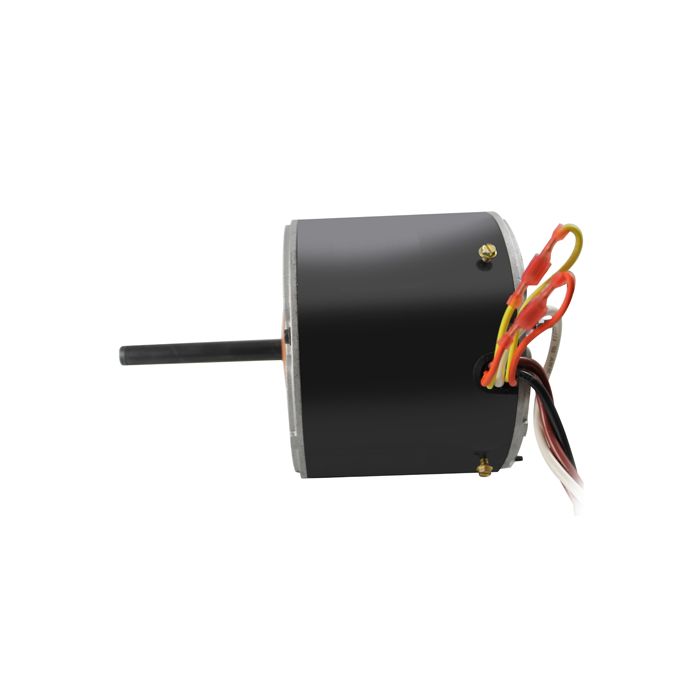

Us Motors K055CLM1468012B Nidec Motor 0.167 HP TEAO 825 RPM

Product Description

The US MOTORS K055CLM1468012B Nidec Motor is a 0.167 HP TEAO motor operating at 825 RPM. This single-phase motor is designed for condenser fan applications. It features a totally enclosed air over design and is suitable for use with 208V and 230V power supplies at 60 Hz.

• Permanent Split Capacitor
• Condenser Fan
• Totally Enclosed Air Over (TEAO)

Product Highlights

Designed for residential and commercial condenser fan applications, this motor ensures reliable and efficient performance.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055CLM1468012B
• Country of Origin: MEX

Technical Specifications

• Manufacturer: US Motors - Nidec
• SKU: 1873
• Model Number: K055CLM1468012B
• Fuel Type: Electric
• Engine/Motor Type: Totally Enclosed Air Over (TEAO)
• Horsepower: 0.167 HP
• Phase: Single-Phase
• Voltage: 208 Volt (Single-Phase), 230 Volt (Single-Phase)
• Frequency: 60 Hz
• Rated Current: 1 Amps
• Poles: 8
• NEMA Frame: 48Y
• RPM: 825
• MOTOR ENCLOSURE: TEAO
• KILOWATTS: 0.1
• NUMBER SPEEDS: 1
• FRME: 48
• SHAFT CODE: Y
• STATOR DIAMETER: 5.5
• STACK: 1.125
• MOUNTING: STUD/BAND
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: 6201
• SHAFT END BEARING: 6201
• AMBIENT: 60
• ROTATION: CCW LEAD END REV
• SERVICE FACTOR: 1
• RUNCAPMFD: 5
• RUNCAPVOLTS: 370
• THERMAL PROTECTION: AUTOMATIC RESET
• BREAKDOWN TORQUE: 25.96
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 5.698
• LOCKED ROTOR TORQUE UOM: OZFT
• INSULATION CLASS: B
• LOCKED ROTOR AMPS: 2.27
• FULL LOAD AMPS PRIMARY: 1.00
• Web Type: US HVAC Motors
• Web Brand: US Motors
• Weight (lbs): 14
• Amps: 1.20
• Enclosure: Totally Enclosed, Air Over
• Shaft Dim.: 1/2” x 6.00”
• Type: Permanent Split Capacitor
• Speeds: 1
• Diameter: 5-5/8"
• Frame: 48
• Bearings: Ball
• Protector: Automatic
• Ambient Temp.: 70°C
• Motor Phase: 1 ph
• Motor Horsepower: 1/6 hp
• Synchronous Rpm: 900 rpm
• Motor Supply Voltage: 208-230 V
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Base RPM: 825 rpm
• Duty Condition Type: Continuous Duty
• Mounting Type: Band / Stud
• Motor Poles: 8
• Description Keyword: 1/6 hp
• Frame Material: Steel
• Standards Met: EE
• Manufacturer Upc Number: 786382001780
• Motor Category: Condenser Fan Motor
• Max Allowable Current: 1 A
• Product Types: AC Motors
• Torque: 1.38 ft-lbs
• Opposite Drive End Bearing: Self-Aligning Bearing (SAB)
• Product Type: General Purpose Motors
• Material: Copper
• Item Weight: 6804 Grams
• Length: 4.25
