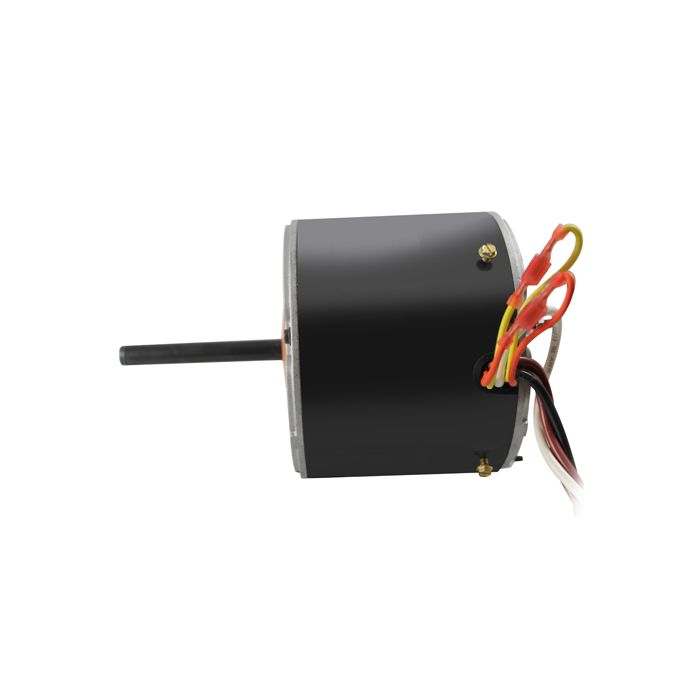

Us Motors K055CLL1467012B 1875 Condenser Fan Motor 1/3 hp

Product Description

The US MOTORS K055CLL1467012B condenser fan motor operates at 208 to 230 V and 825 rpm. This 1/3 hp motor features a steel frame and totally enclosed air over motor enclosure. It is designed for continuous duty and has reversible rotation. Suitable for HVAC applications, this motor meets manufacturer requirements for residential and commercial condenser units.

• All angle mount capability.
• Features 8-32 UNC extended studs and hubless lead end.
• Includes drain holes on both ends.

Product Highlights

This US Motors condenser fan motor is ideal for HVAC systems, providing reliable performance with its robust design and versatile mounting options.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K055CLL1467012B

Technical Specifications

• Model: K055CLL1467012B
• Voltage Rating: 208 to 230 V
• Amperage Rating: 2.4/1.4 A Full Load
• HP Rating: 1/3 hp
• Speed Rating: 825 rpm
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Motor Enclosure Type: Totally Enclosed Air Over
• Frame Size: 48Y
• Shaft Size: 1/2 in Dia
• Rotation Type: Reversible
• Number of Speeds: 1
• Bearing Type: Sleeve
• Mounting Type: Stud
• Insulation Class: B
• Duty Type: Continuous
• Service Factor: 1
• Number of Poles: 8
• Material: Steel Frame
• Temperature Rating: 60 deg C
• HP: 0.33
• RPM: 825
• Voltage: 208/230
• Motor Type: TEAO
• Rated Current: 2.4-1.4 Amps
