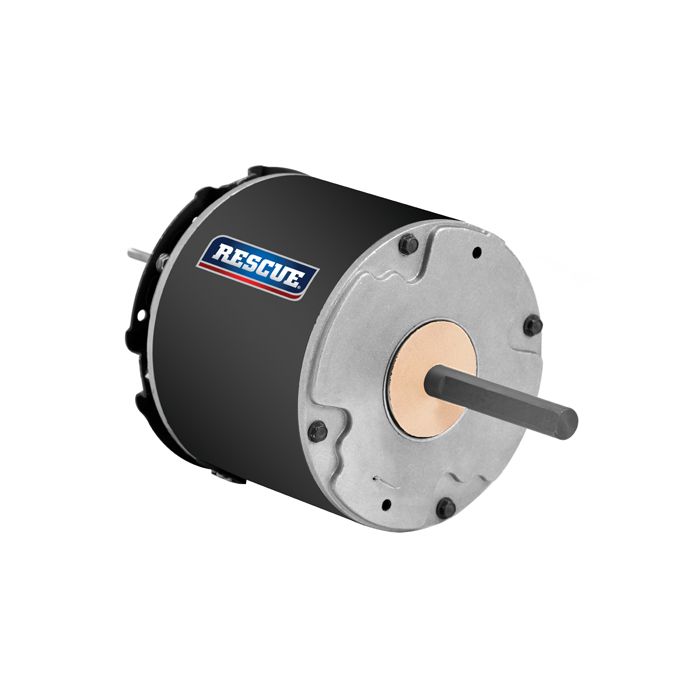

Us Motors K048MAH0158012B Nidec Motor 0.125 HP 1075 RPM

Product Description

The US Motors Nidec Motor K048MAH0158012B is a 0.125 HP, TEAO motor with a speed of 1075 RPM. This single-phase motor is designed for condenser fan applications in commercial and residential condensing units. It operates at 208 to 230 V and 60 Hz, with a rated current of 0.8 A.

• Totally Enclosed Air Over (TEAO) enclosure
• Automatic reset thermal overload protection
• EZ-FIT mounting system for versatile installation

Product Highlights

High-efficiency motor with a special treated rotor for corrosion protection and extended mounting studs.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: K048MAH0158012B

Technical Specifications

• Manufacturer: US Motors - Nidec
• SKU: 5440H
• Model Number: K048MAH0158012B
• Fuel Type: Electric
• Engine/Motor Type: Totally Enclosed Air Over (TEAO)
• Horsepower: 0.125 HP
• Phase: Single-Phase
• Voltage: 208 Volt (Single-Phase), 230 Volt (Single-Phase)
• Frequency: 60 Hz
• Rated Current: 0.8 Amps
• Poles: 6
• NEMA Frame: 42Y
• RPM: 1075 RPM
• PHASETYPE: 1_PERMANENT SPLIT CAPACITOR
• MOTOR ENCLOSURE: ENCLOSED
• NUMBER SPEEDS: 1
• FRME: 42
• SHAFT CODE: Y
• STATOR DIAMETER: 4.8
• STACK: 1.25
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: BALL
• SHAFT END BEARING: BALL
• AMBIENT: 70
• ROTATION: CCW LEAD END REV
• SERVICE FACTOR: 1
• RUNCAPMFD: 5
• RUNCAPVOLTS: 370
• THERMAL PROTECTION: AUTOMATIC RESET
• BREAKDOWN TORQUE: 16.56
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 6.129
• LOCKED ROTOR TORQUE UOM: OZFT
• INSULATION CLASS: B
• LOCKED ROTOR AMPS: 1.81
• FULL LOAD AMPS PRIMARY: .8
• Amps: 0.80
• Enclosure: Totally Enclosed, Air Over
• Shaft Dim.: 1/2" x 3.00"
• Type: Permanent Split Capacitor
• Speeds: 1
• Diameter: 5.0"
• Bearings: Ball
• Rotation Direction: Reversible
• Protector: Automatic
• Ambient Temp.: 70°C
• Capacitor Rating: 5MFD-370V
• HP Rating: 1/8 to 1/12 hp
• Number Of Poles: 6
• Speed Rating: 1075 rpm
• Application: For commercial and residential condensing units
• Mounting Details: Stud
• Standard: CSA Certified|UL Listed
