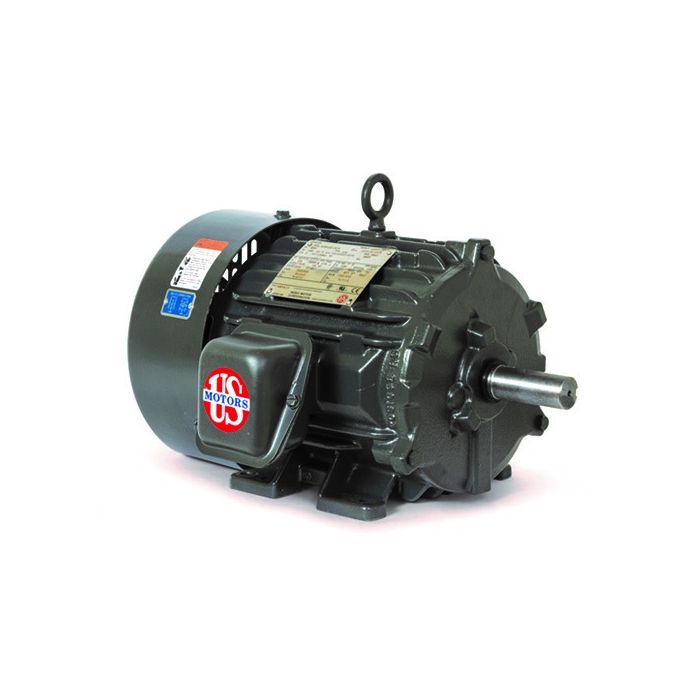

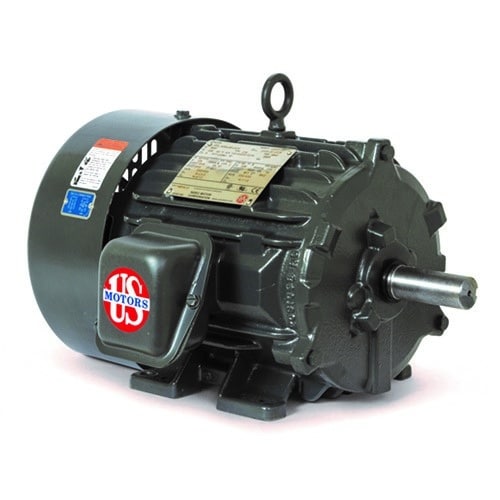

Us Motors HD5P1G GL08 Motor 5.0 HP (184T)

US MOTORS
Brand: US MOTORS
SKU: HD5P1G
Availability: In Stock

Ships via freight in 1-3 business days
$631.56
$631.56
LTL Delivery

This product weighs 90 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Us Motors HD5P1G is a 5.0 HP totally enclosed fan cooled (TEFC) three-phase industrial motor rated 575 V, 60 Hz with a 2-pole design producing approximately 3526 RPM. It is built on a NEMA 184T frame and has a rated current of 4.9 A for general industrial and hostile duty applications.

  • 5.0 HP, 3-phase TEFC motor; 2-pole design delivering ~3526 RPM; NEMA 184T frame
  • Rated for 575 VAC, 60 Hz with full load amperage 4.9 A and service factor 1.15
  • Dual rotation, footed/rigid mounting; DE bearing 6206-2Z-J/C3 and ODE bearing 6205-2Z-J/C3; ambient rating 40°C

Product Highlights

Industrial 5 HP TEFC three-phase motor, 575 VAC, 3526 RPM, NEMA 184T, 4.9 A, service factor 1.15

Product Information

Standard Information

  • Brand: US MOTORS
  • Manufacturer Part Number: HD5P1G
Technical Specifications
Brand
US Motors - Nidec
Manufacturer Part Number
HD5P1G
Model Number
GL08
Type
General purpose, hostile duty
Horsepower
5.0 HP
Kilowatts
3.7 kW
Rated Voltage
575 VAC
Voltage Range
540 - 600 VAC
Phase
3-Phase
Frequency
60 Hz
Poles
2
Speed (RPM)
3526 RPM
NEMA Frame
184T
Enclosure
Totally Enclosed Fan Cooled (TEFC)
Rated Current
4.9 A
Service Factor
1.15
Mounting Type
Footed / Rigid
Rotation
Dual
DE Bearing
6206-2Z-J/C3
ODE Bearing
6205-2Z-J/C3
Ambient Temperature Rating
40 °C
Shaft
Keyed
Weight
90 lbs
Dimensions (H x W x D)
12 in x 12 in x 12 in
