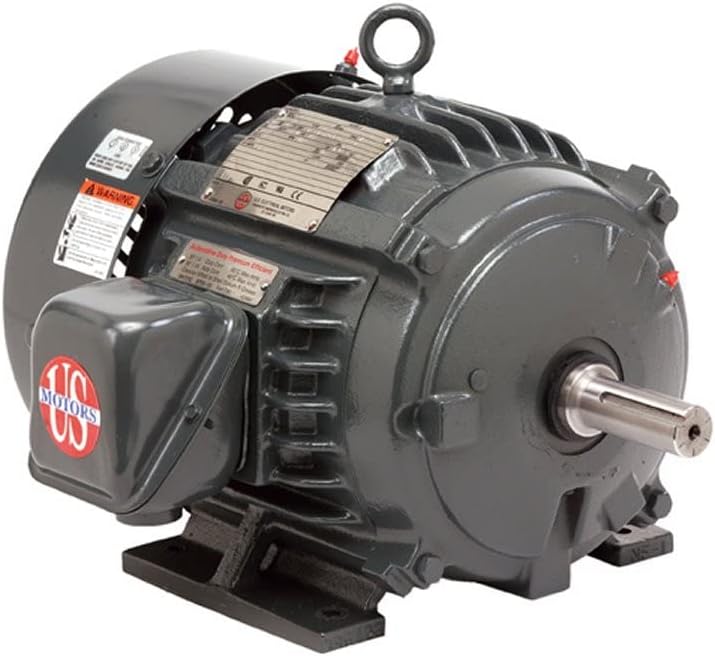

US Motors HD40P2E General Purpose Motor 40 HP 1800 RPM TEFC 230/460V

Product Description

The US Motors HD40P2E General Purpose Motor is engineered for robust performance and reliability. This 40 hp, 1800 RPM motor is designed for a myriad of industrial applications, including pumps, fans, and compressors.

• Cast iron construction ensures durability under harsh conditions.
• TEFC design provides complete protection against environmental contaminants.
• Energy efficient with a high 94.1% efficiency rating.

Product Highlights

The motor features a 324T frame and supports dual voltage functionality at 230/460 volts. Its three-phase design enhances efficiency and extends the motor's lifespan.

Product Information

Standard Information

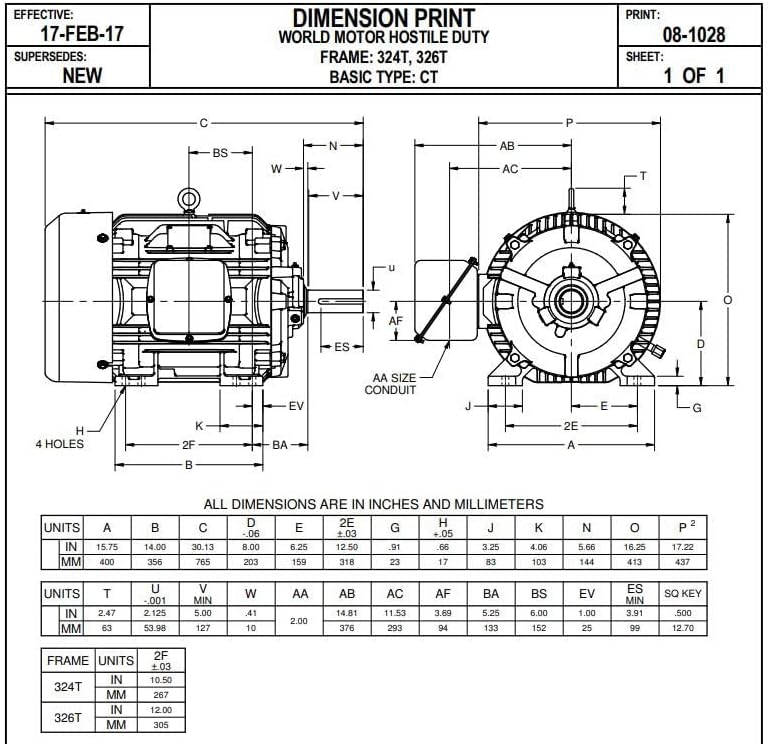

• Frame: 324T
• Phase: Three
• Voltage: 230/460V
• Rotation: Reversible

Technical Specifications

• Horsepower: 40 hp
• RPM: 1800
• Enclosure Type: Totally Enclosed Fan-Cooled (TEFC)
• Insulation Class: F
• Efficiency: 94.1%
• Weight: 450 pounds
• Material: Cast Iron
