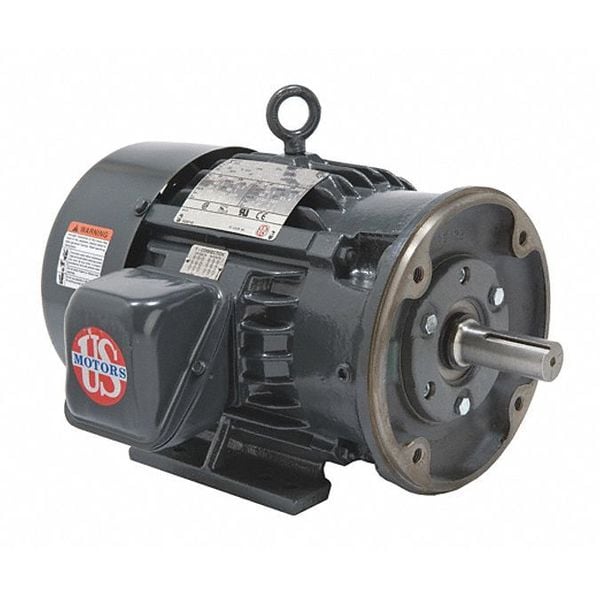

US Motors H15P1D 15 HP Motor 208-230/460

Product Description

The US MOTORS H15P1D is a 15 HP Hostile Duty motor tailored for industrial use. This motor adheres to the Energy Independence and Security Act (EISA 2007) efficiency guidelines. It features a totally enclosed fan-cooled design that helps to lower operating expenses and is ideal for heavy-duty applications in environments with dust, moisture, and other contaminants.

• Designed for robust industrial applications
• NEMA Premium motor compliant with EISA 2007 standards
• Reduces energy costs with high efficiency

Product Highlights

This motor is ideal for various industrial setups, supporting continuous operation while maintaining efficiency standards.

Product Information

Standard Information

• Motor Phase: 3 ph
• Motor Horsepower: 15 hp

Technical Specifications

• Synchronous RPM: 3600 rpm
• Motor Supply Voltage: 208-230/460 V
• Frame Size: 254T
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frequency Rating: 50/60 Hz
• Base RPM: 2920 rpm - 3545 rpm
• Duty Condition Type: Continuous Duty
• Mounting Type: Horizontal / Foot
• Full Load Efficiency: 91.0 %
• Motor Poles: 2
• Overall Length C Dimension: 25.2 in
• NEMA Design Class: B
• Service Factor: 1.00
• Frame Material: Cast Iron
• Insulation Class: F
• Standards Met: EE, NEMA Premium
• Model: DK59
• Motor Category: General Severe Duty Motor
• Max Allowable Current: 17.4 A, 21.7 A, 35 to 39 A, 43 A
• Torque: 22.2 ft-lbs
• Opposite Drive End Bearing: 6309-2Z-J/C3
• Manufacturer: US Motors
• Part Number: H15P1D
