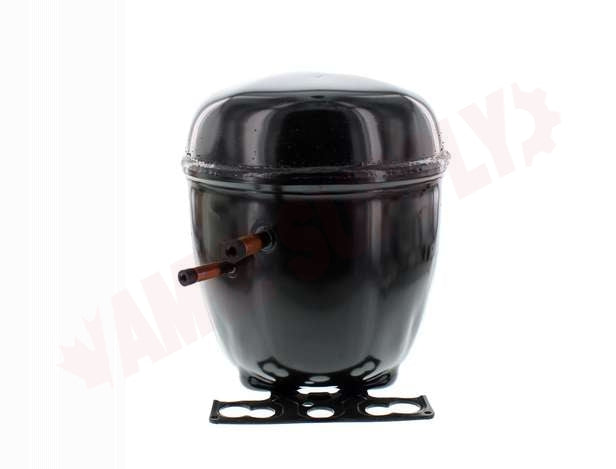

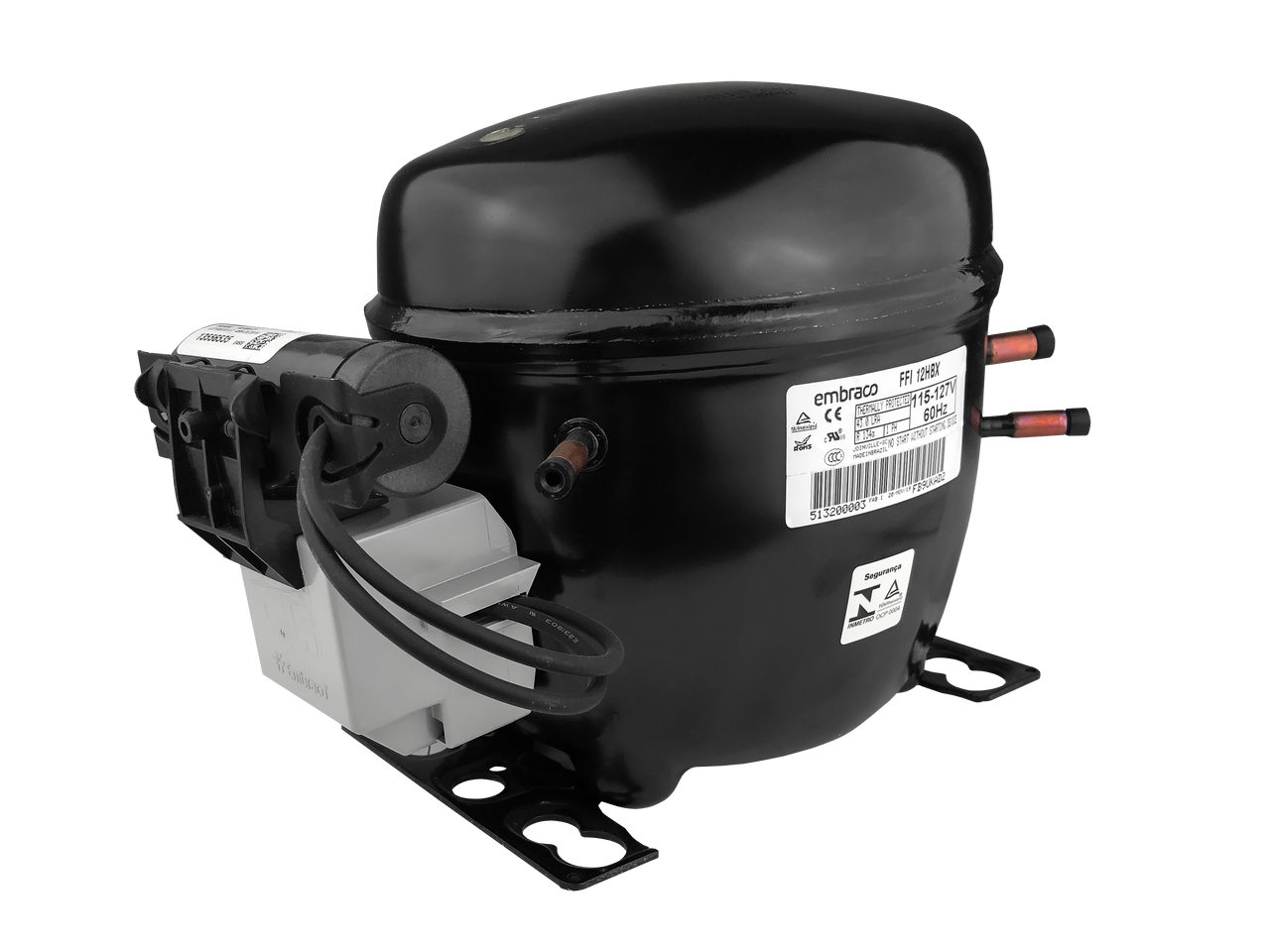

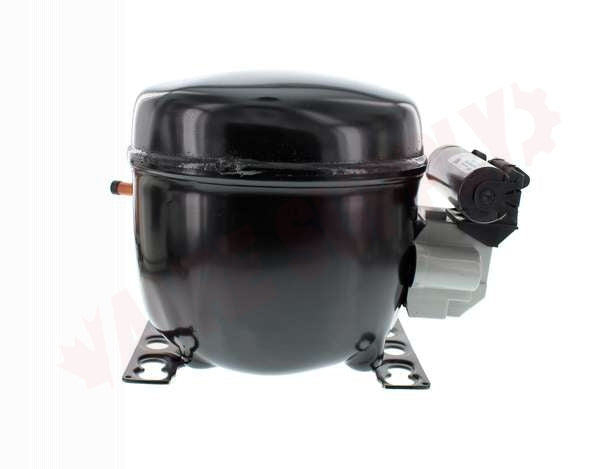

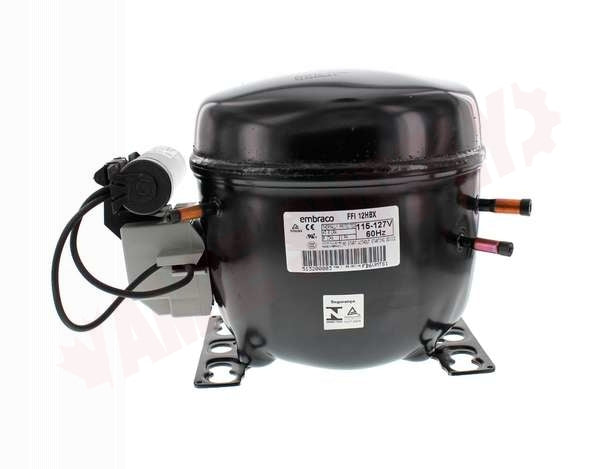

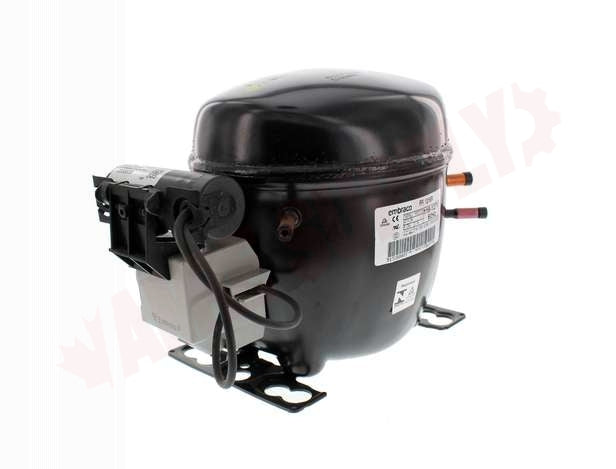

US Motors FFI12HBXBOXED Refrigeration Compressor 1/3+ HP

Product Description

The US Motors FFI12HBXBOXED is a refrigeration compressor used for various pressure applications, including low, medium, and high back pressure. It is compatible with R134a refrigerant and is widely used in refrigerators, ice makers, and display cases. The compressor features a Captive Start Inductive Run motor, ensuring reliable operation. It comes hermetically sealed and includes necessary components like rubber foot mounts, a data sheet, and a wiring diagram.

• Nominal Motor Horsepower: 1/3+
• Refrigerant Type: R134a
• Motor Type: Captive Start Inductive Run (CSIR)

Product Highlights

This compressor operates efficiently in diverse refrigeration applications, delivering significant BTU capacity. It functions in varying conditions, making it versatile for professional use.

Product Information

Standard Information

• UPC: 777980047133

Technical Specifications

• Horsepower (HP): 1/3+
• Refrigerant: R134a
• Application: Low, Medium, High Back Pressure
• BTU Capacity LBP & MBP: 1190
• BTU Capacity HBP: 5300
• Starting Torque: High
• Motor Type: CSIR
• Locked Rotor Amps (LRA): 43.0
• Input Voltage: 115V
• Relay: 513506066 (CSIR)
• Overload: 13554099
• Capacitor: Start- 5103556535
• Diagrams: PD2
• Wiring: WD2
