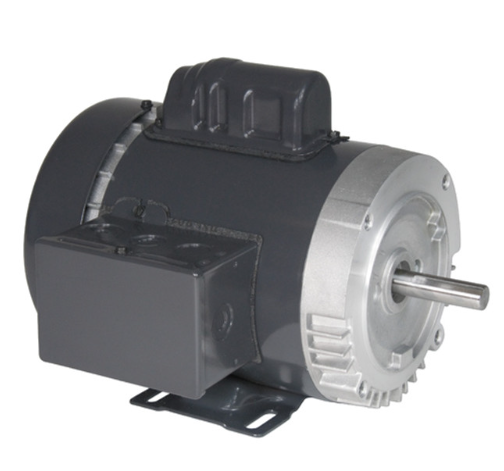

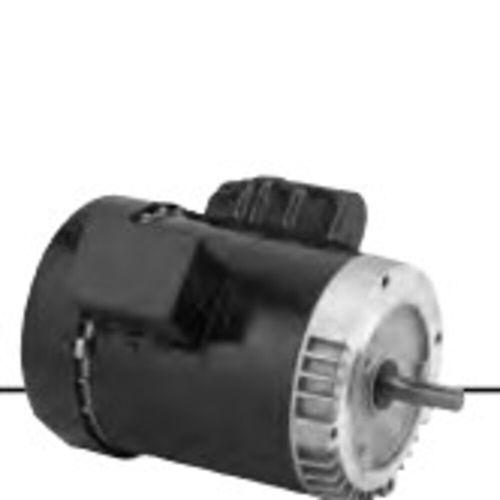

Us Motors EU06 3/4 hp 1800 RPM 56JwBASE

Product Description

The US MOTORS EU06 is a 3/4 hp motor with 1800 RPM and a 56JwBASE. This commercial pump motor features a capacitor start, TEFC enclosure, and is suitable for various applications including chiller, condensate, and HVAC duty pumps. It operates on 115/208-230V and has an amperage of 9.9/5.1-4.9.

• Electrical Type: Capacitor Start
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Overload: Auto

Product Highlights

This US MOTORS motor is designed for commercial pump applications, offering reliable performance with its capacitor start and TEFC enclosure.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: EU06

Technical Specifications

• Electrical Type: Capacitor Start
• Frame: 56J
• Diameter: 6.5"
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Phase: Single
• Voltage: 115/208-230
• Rotation: Reversible
• Overload: Auto
• Mounting: C-Face
• Amperage: 9.9/5.1-4.9
• Rated Load (HP): 3/4
• NEMA Design Letter: Design B (General Purpose)
• AC Frequency Rating: 60 Hz
• Shaft Type: Keyed
• AC Motor Type: Induction/Asynchronous
• Reversible/Non-Reversible: Reversible
• Brand: US Motors
• Current Type: AC
• IP Rating: IP55
• Model: EU06
• AC Phase: Single Phase
• NEMA Frame Suffix: C
• RPM: 1800 RPM
• Service Factor: 1.25 S.F.
• Speed: SINGLE SPEED
• Features: Capacitor Start Induction Run, Continuous Duty, Double Sealed Ball Bearings, F1 assembly.
