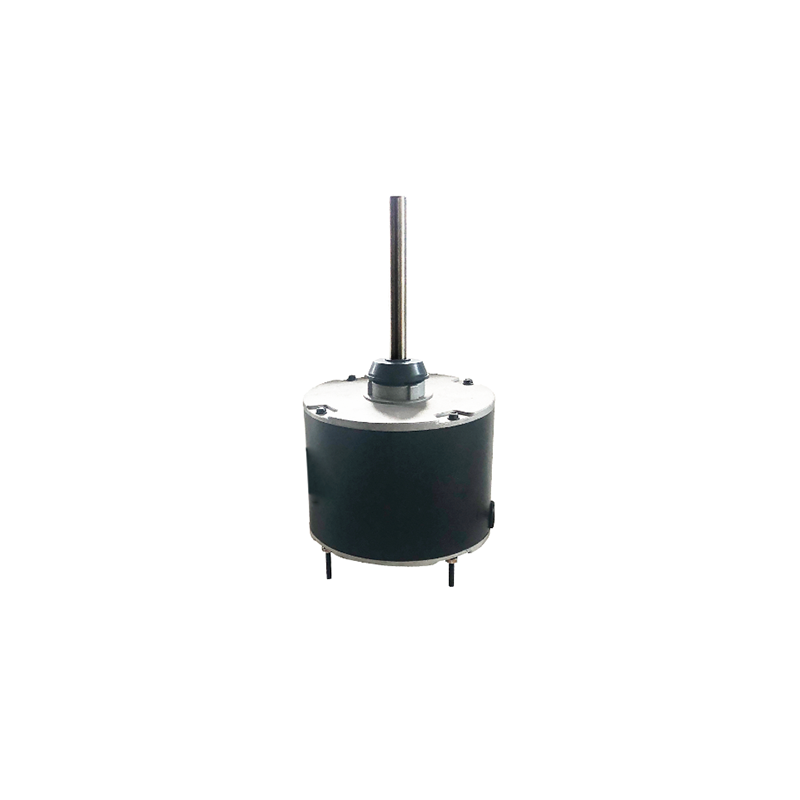

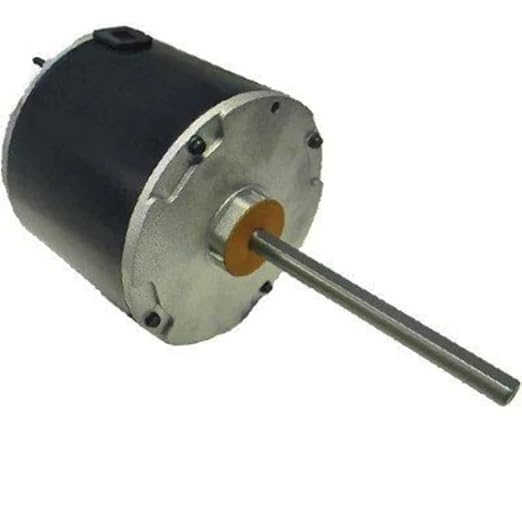

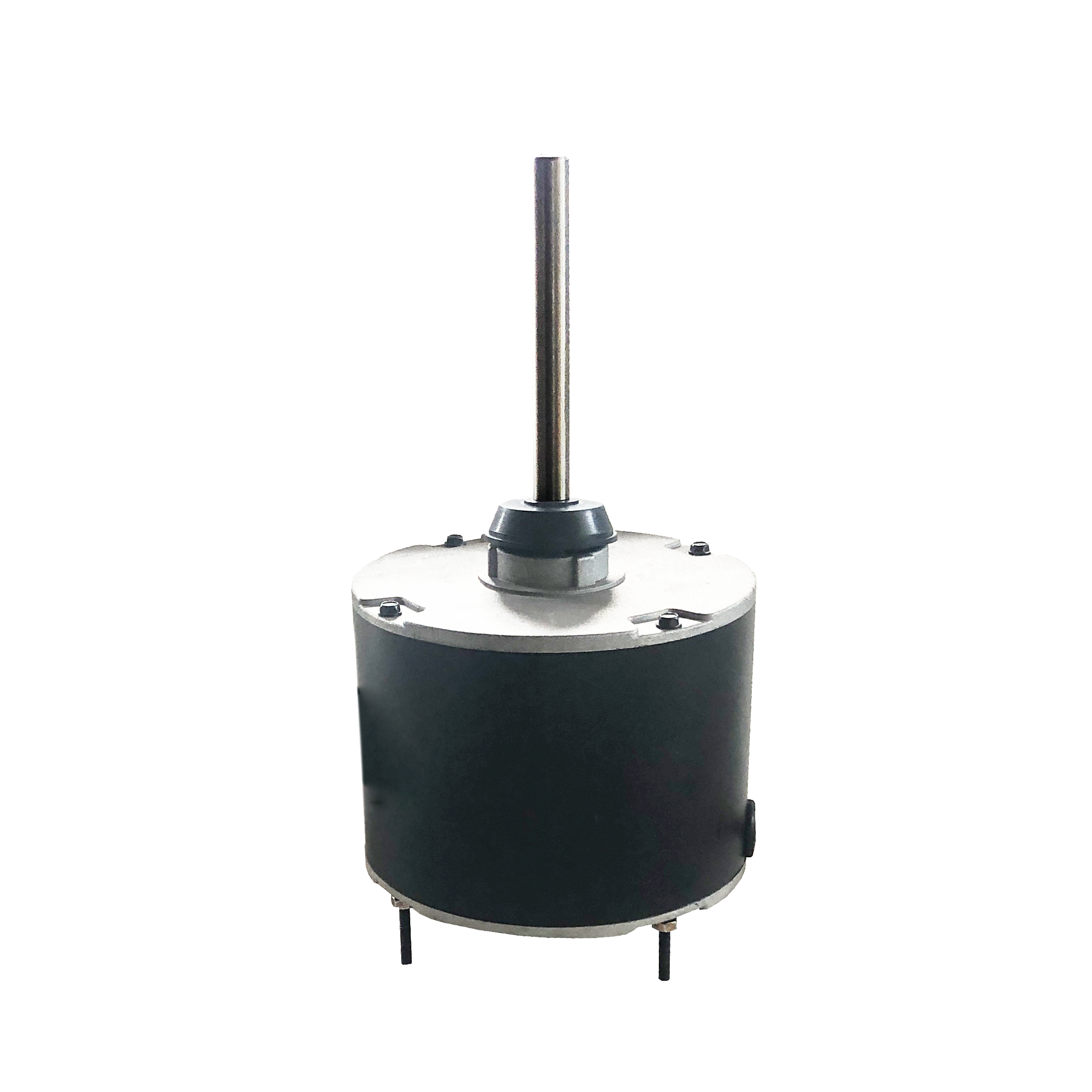

US Motors EL3728 COND MTR 1/4HP 1075 208/230 1SP

Product Description

The US Motors EL3728 COND MTR 1/4HP 1075 208/230 1SP is suitable for direct drive fans and blowers. This motor has a unique design that supports high efficiency and reliable performance. It operates in ambient conditions up to one hundred forty degrees Fahrenheit. The reversible rotation feature enables flexibility in installation and operation.

• 140°F (60°C) Ambient Design
• All Angle Thrust System in Bearings
• Reversible Rotation for Easy Installation

Product Highlights

This motor offers dependable performance and adaptability for various applications.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer Name: Nidec Motor Corporation

Technical Specifications

• Horsepower: 1/4HP
• RPM: 1075
• Voltage: 208/230V
• Phase: 1
• Material: Copper
• Diameter: 5-5/8 inches
• Type: Permanent Split Capacitor (PSC)
• Amps: 2.0
• Enclosure: Totally Enclosed
• Rotation: Reversible
• Shaft Dimensions: 0.5 inches x 5.5 inches
• Body Length: 4-1/8 inches
• Capacitor: 5mfd x 370 vac (not included)
• Thermally Protected: True
• Mounting: Shaft Up/Down and Rheem Mount
• Model: 1860
• Frame: 48Y
• Enclosure Type: TEAO
