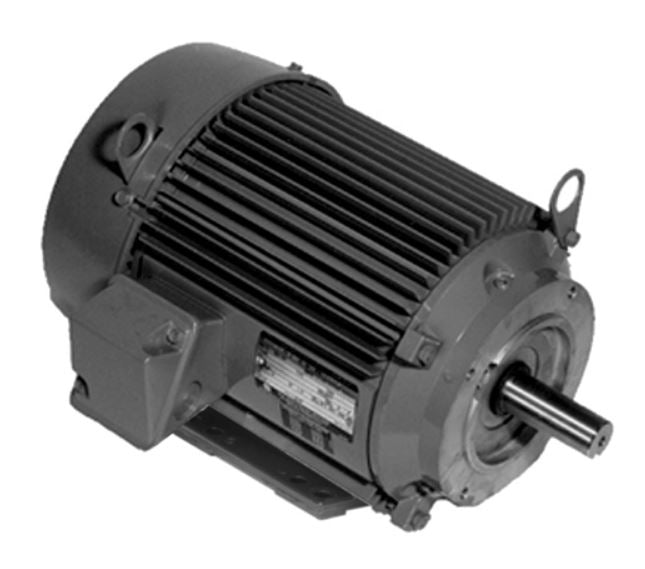

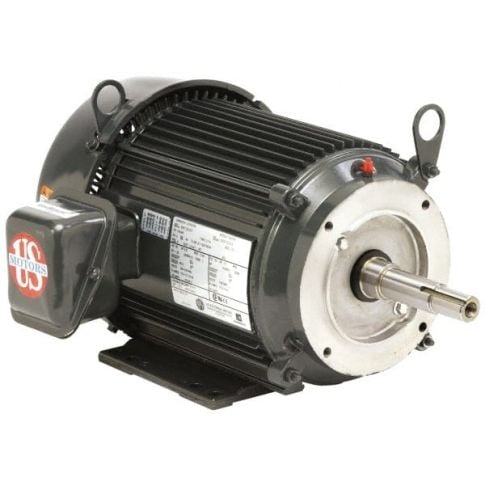

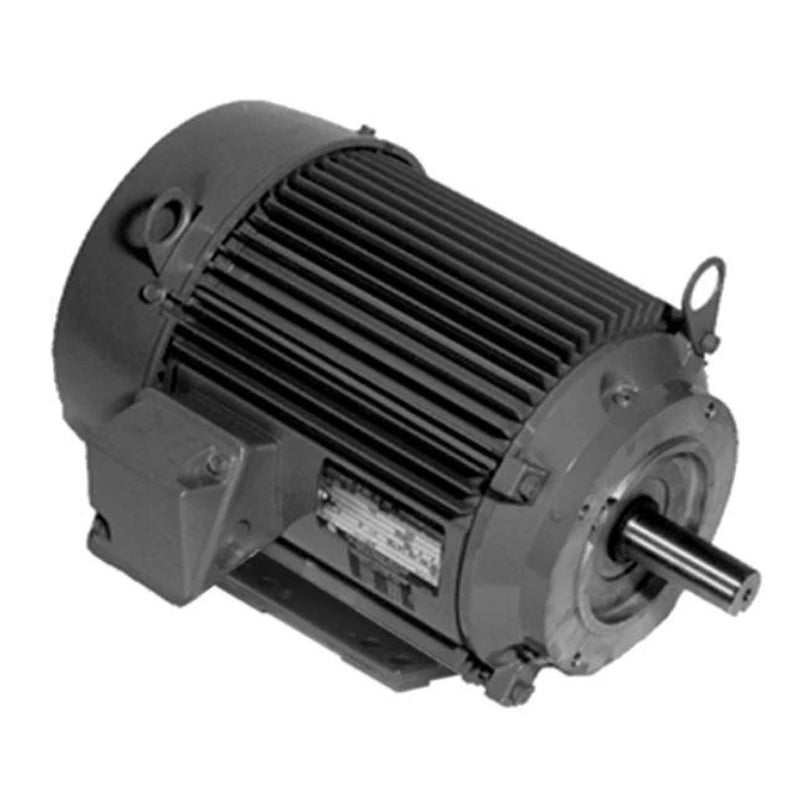

US Motors EE586 Commercial Pump Motor

Product Description

The US Motors EE586 is a three-phase commercial pump motor designed for various applications. It features a Totally Enclosed Fan Cooled (TEFC) enclosure that offers protection from environmental influences. This motor is ideal for general industrial equipment such as pumps, fans, and compressors. With Class B insulation and double-sealed bearings, it ensures efficient operation and durability.

• Three-phase motor.
• TEFC enclosure for enhanced protection.
• Designed for C-Face mounting.

Product Highlights

The US Motors EE586 motor is built for reliability and versatility in industrial settings.

Product Information

Standard Information

• Manufacturer: US Motor Nidec Motor Corp
• Type: TEFC

Technical Specifications

• Frame Size: 56J
• Speed: 1800 RPM
• Ambient Operating Temperature: 40°F
• Bearing Type: Ball
• Frame Material: Steel
• Frequency: 60 Hz
• Full Load Amperage: 2.8 to 2.8/1.4
• Horsepower: 3/4
