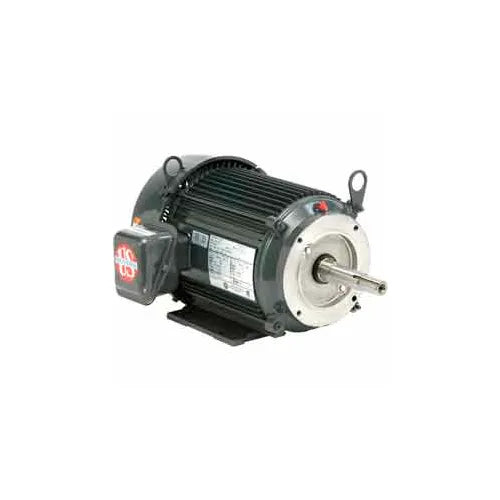

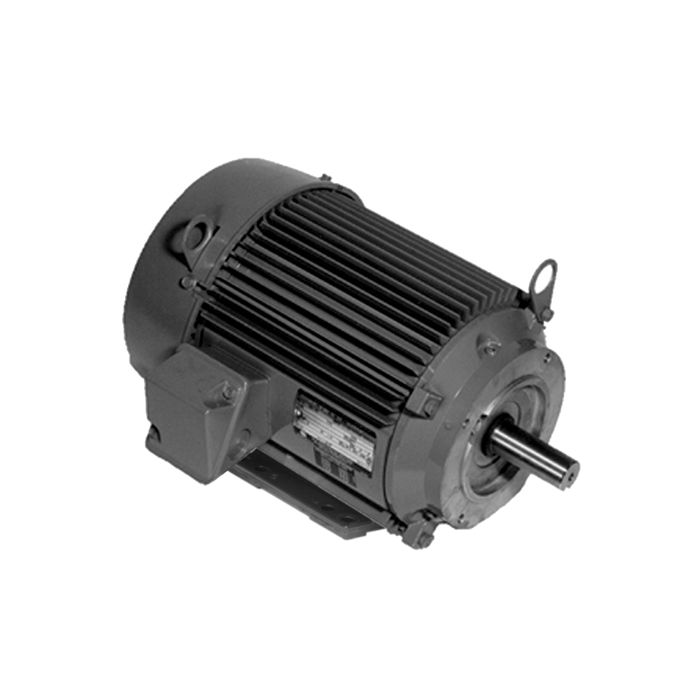

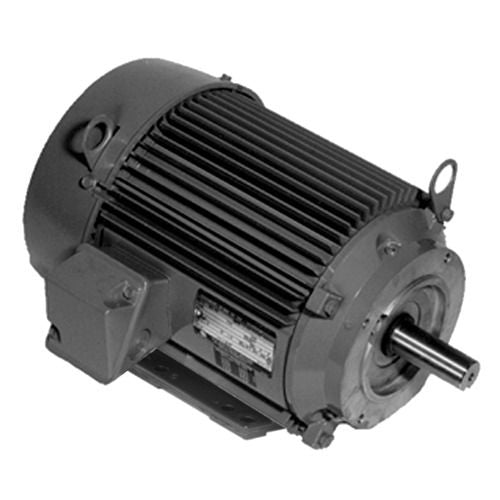

Us Motors EE515 Pump 3/4 HP 3-Phase 3450 RPM Motor

Product Description

The US MOTORS EE515 is a special application commercial pump motor. This three-phase motor is totally enclosed and fan cooled (TEFC) with a C face. It operates at 208-230/460V and 3450 RPM, making it suitable for various commercial pumping applications.

• Special Application Commercial Pump
• Three Phase
• Totally Enclosed Fan Cooled (TEFC)

Product Highlights

This US Motors pump motor is designed for commercial applications requiring three-phase power and reliable performance.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: EE515
• Country of Origin: MX

Technical Specifications

• Brand: US Motors
• Hertz: 60/50 Hz
• Phase: 3
• Voltage: 208-230/460 V
• Is_Motor: Yes
• Enclosure: TEFC
• RPM Range: 3001-3600 rpm
• Horsepower: 3/4 HP
• Enclosure Type: Totally Enclosed
• Service Factor: 1.51
• Insulation Class: B
• Locked Rotor Amps: 17.44 A
• Mounting Location: C-Face Footless
• Motor RPM 60 Hertz: 3450 rpm
• RPM: 3450 rpm
• Break Down Torque: 80.18 OZFT
• Locked Rotor Torque: 45.33 OZFT
• Frame: 56J
• Diameter: 6.5"
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: C-Face
• Amperage: 3.7-3.6/1.8
• MPN: EE515
• Model: EE515
• Country of Origin: MX
• Length: 18.500
• Width: 12.000
• Depth: 12.000
• Features: Pump Motor, Body Dia. 5.9 in, Conduit Box Location Exterior, Duty
• Manufacturer: US Motors - Nidec
• Model Number: P063TLM4857013J
• Fuel Type: Electric
• Engine/Motor Type: Totally Enclosed Fan Cooled (TEFC)
• Frequency: 60 Hz
• Rated Current: 2.8-2.7/1.35 Amps
• Poles: 2
• Model #: EE515
• Warranty: 1 Year Manufacturer
• Input Voltage(s): 200 - 240 VAC Input, 400 - 480 VAC Input
• Motor Shaft: Keyed
