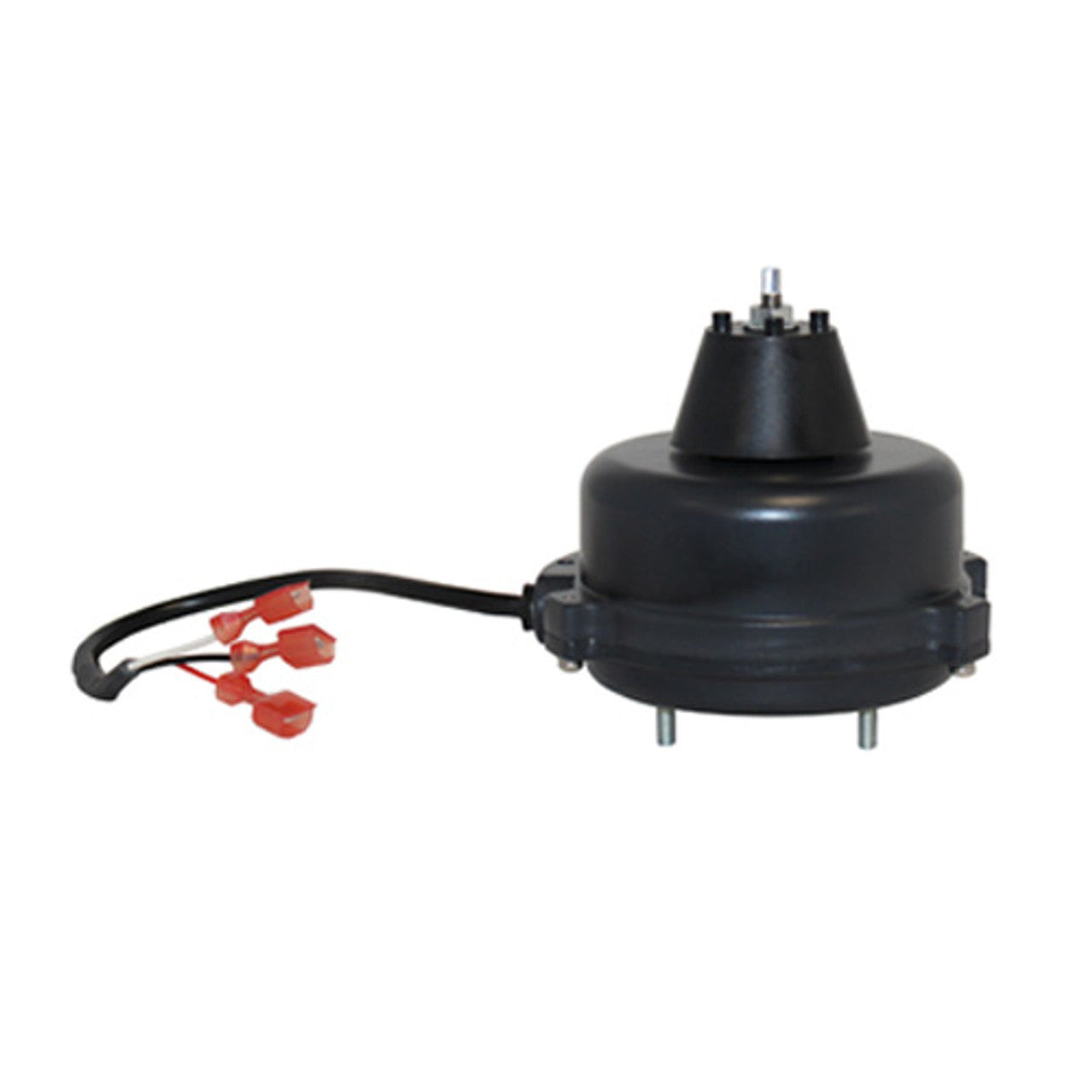

US Motors EC5409E Rescue Walk-In Evaporator Motor

Product Description

The US Motors EC5409E is an ECM motor built for walk-in evaporator applications. It operates at dual voltage of one hundred fifteen and two hundred thirty volts. This motor offers multiple horsepower ratings ranging from one fifteenth to one twenty-fifth HP. It features thermal protection to ensure safety and reliability in operation. The motor has a diameter of three point three inches and is thermally protected. It also includes eleven leads for easy connection.

• Dual voltage operation at 115V and 230V
• Thermally protected for safety
• Designed for use in walk-in evaporators

Product Highlights

This motor features a totally enclosed air over (TEAO) design and a CCWOSE rotation type, permitting efficient operation across various conditions.

Product Information

Standard Information

• Brand: US Motors
• MPN: EC5409E

Technical Specifications

• Horsepower: 1/15 - 1/20 - 1/25 HP
• RPM: 1550 / 775
• Frame Size: 33
• Input Voltage: 115-230 V
• Input Current: 0.5-0.72 A
• Service Factor: 1
• Enclosure: TEAO
• Rotation: CCWOSE
• Diameter: 3.3 inches
• Speeds: 2
• Mounting Type: Universal
• Operating Temperature: -40°C to 55°C
• Poles: 4
• Hertz: 60
• Insulation Class: A
