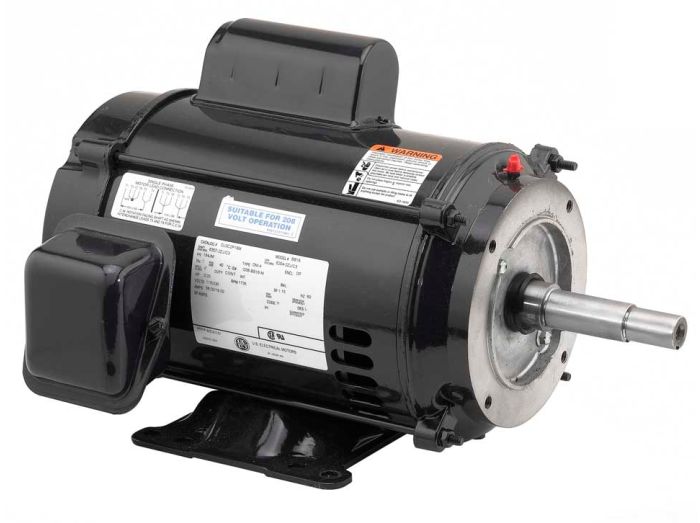

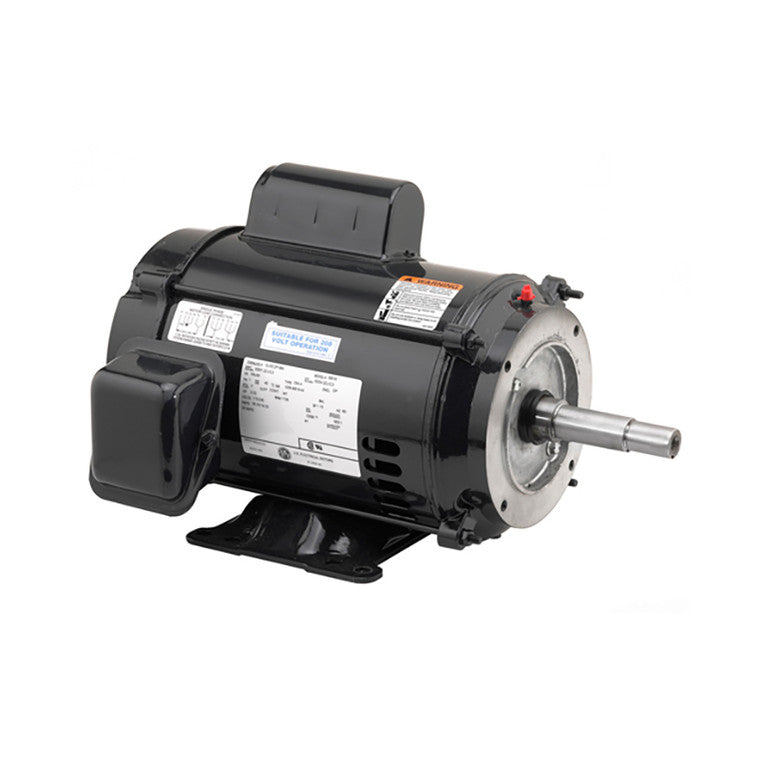

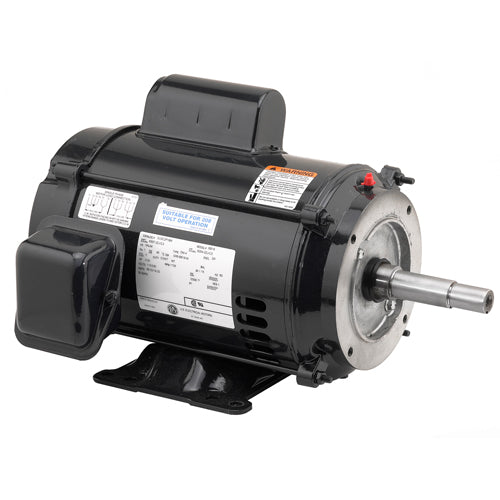

Us Motors DJ5C2K21M Pump, 5 HP, 1-Phase, 1740 RPM Motor

Product Description

The US MOTORS DJ5C2K21M is a special application close coupled pump motor. This single-phase motor features an open dripproof (ODP) enclosure and a JM shaft. Designed for centrifugal pumps where the impeller mounts directly to the motor shaft. It is built with Class F insulation and a rolled steel frame.

• Special Application Close Coupled Pump
• Single Phase
• Open Dripproof (ODP)

Product Highlights

This US Motors pump motor is designed for performance, efficiency and longevity. It is a reliable solution for various pump applications.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: DJ5C2K21M
• Country of Origin: MEX

Technical Specifications

• Brand: US Motors
• Hertz: 60 Hz
• Phase: 1
• Voltage: 230 V
• Is_Motor: Yes
• RPM Range: 1701-1800 rpm
• Horsepower: 5 HP
• Enclosure Type: Open/Drip Proof
• Service Factor: 1.15
• Insulation Class: F
• Motor RPM 60 Hertz: 1740 rpm
• RPM: 1740 rpm
• Frame Size: 213JM
• Type: Special Application Close Coupled Pump
• Motor Type: ODP
• Web Brand: US Motors
• Motor Phase: 1 ph
• Synchronous Rpm: 1800 rpm
• Country of Origin: MEX
• Motor Supply Voltage: 230 V
• Base RPM: 1740 rpm
• Duty Condition Type: Continuous Duty
• Mounting Type: Horizontal / Foot
• Motor Poles: 4
• Overall Length C Dimension: 20.5 in
• NEMA Design Class: L
• Frame Material: Rolled Steel
• Manufacturer Upc Number: 786382024147
• UPC_NO: 786382024147
• Model: BB18
• Motor Category: Close Coupled Pump Motor
• Max Allowable Current: 22 A
• Opposite Drive End Bearing: 6205-2Z-J/C3
• Manufacturer: US Motors
• Frequency: 60 Hz
• NEMA Frame: 213JM
• AC Voltage: 230 VAC
• Nominal Voltage: 240 VAC
• Mounting: Foot Mount
• Current Rating: 22 A
• Composition: Rolled Steel
• Net Weight: 105 lbs
• Gross Weight: 105 lbs
• Rated Voltage: 230 V
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 22.0 A
• Rated RPM: 1740 RPM
• Motor Enclosure Type: Open Drip Proof (ODP)
• Motor Design Class: L
• Bearing Type: 6205-2Z-J/C3
• Kilowatts: 3.7 kW
• Speed: 1,740 RPM
• Number of Poles: 4
• Enclosure: Open Drip Proof
• Rated Current: 22 Amps
• Poles: 4
