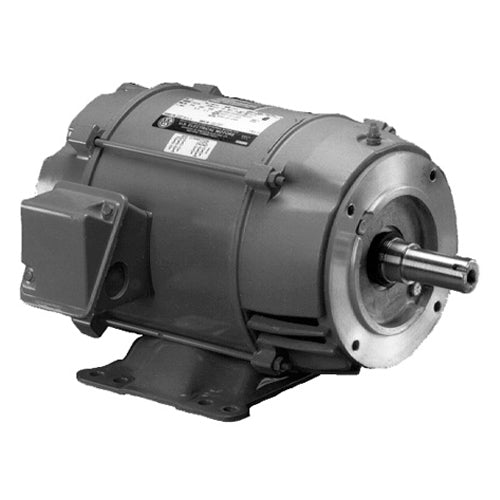

US Motors DJ40P1EM Motor 40 HP

Product Description

The US Motors DJ40P1EM is a robust motor rated at forty horsepower, ideal for specialized tasks like close-coupled pumps. This three-phase motor features a 286JM frame and operates at around three thousand six hundred revolutions per minute. With Class F insulation and an open drip-proof enclosure, it is designed to function efficiently in various conditions. The motor's horizontal mounting capability offers flexibility in installation.

• Horsepower: 40 HP
• Speed: Approximately 3600 RPM
• Enclosure: Open Drip Proof (ODP)

Product Highlights

This motor is well-suited for industrial applications due to its sturdy design and reliable performance.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer: US Motors (Nidec)

Technical Specifications

• Part Number: DJ40P1EM
• Phase: 3

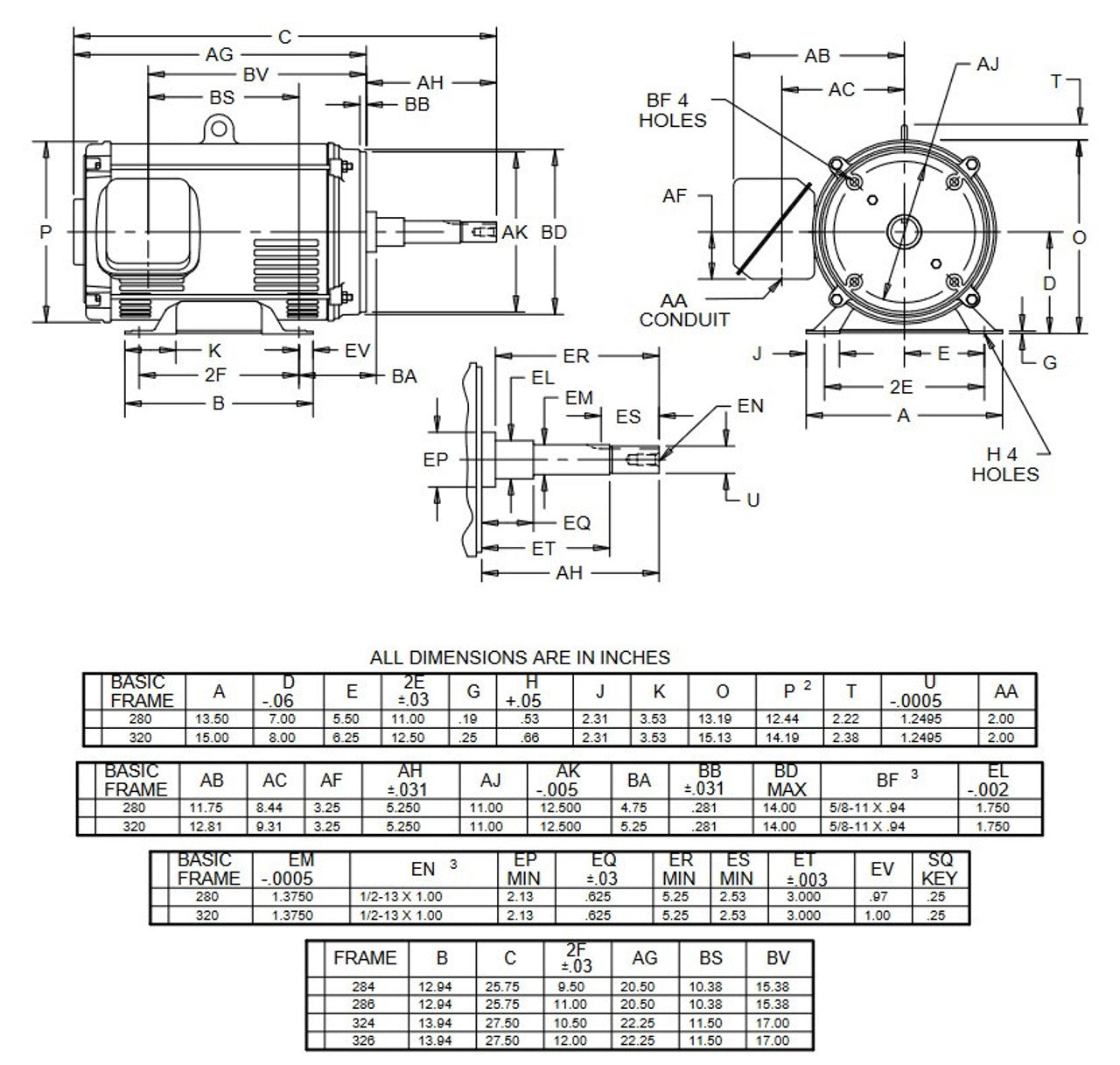

• Frame Size: 286JM
• Voltage: 208-230/460V
• Frequency: 50/60Hz
• Full Load Amps: 104.0-90.0/45.0
• Service Factor: 1.15
• Thermal Protection: Auto Overload
• Rotation: Reversible
• Weight: 275 lbs
