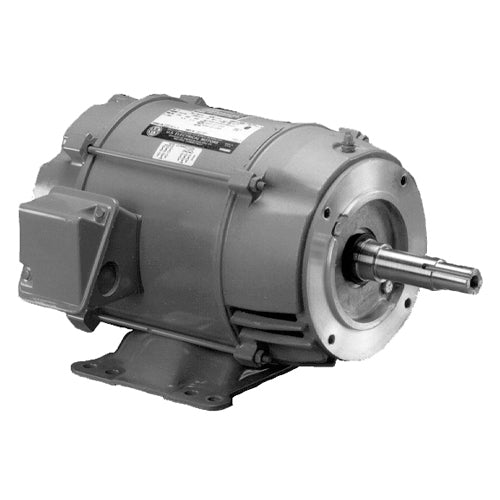

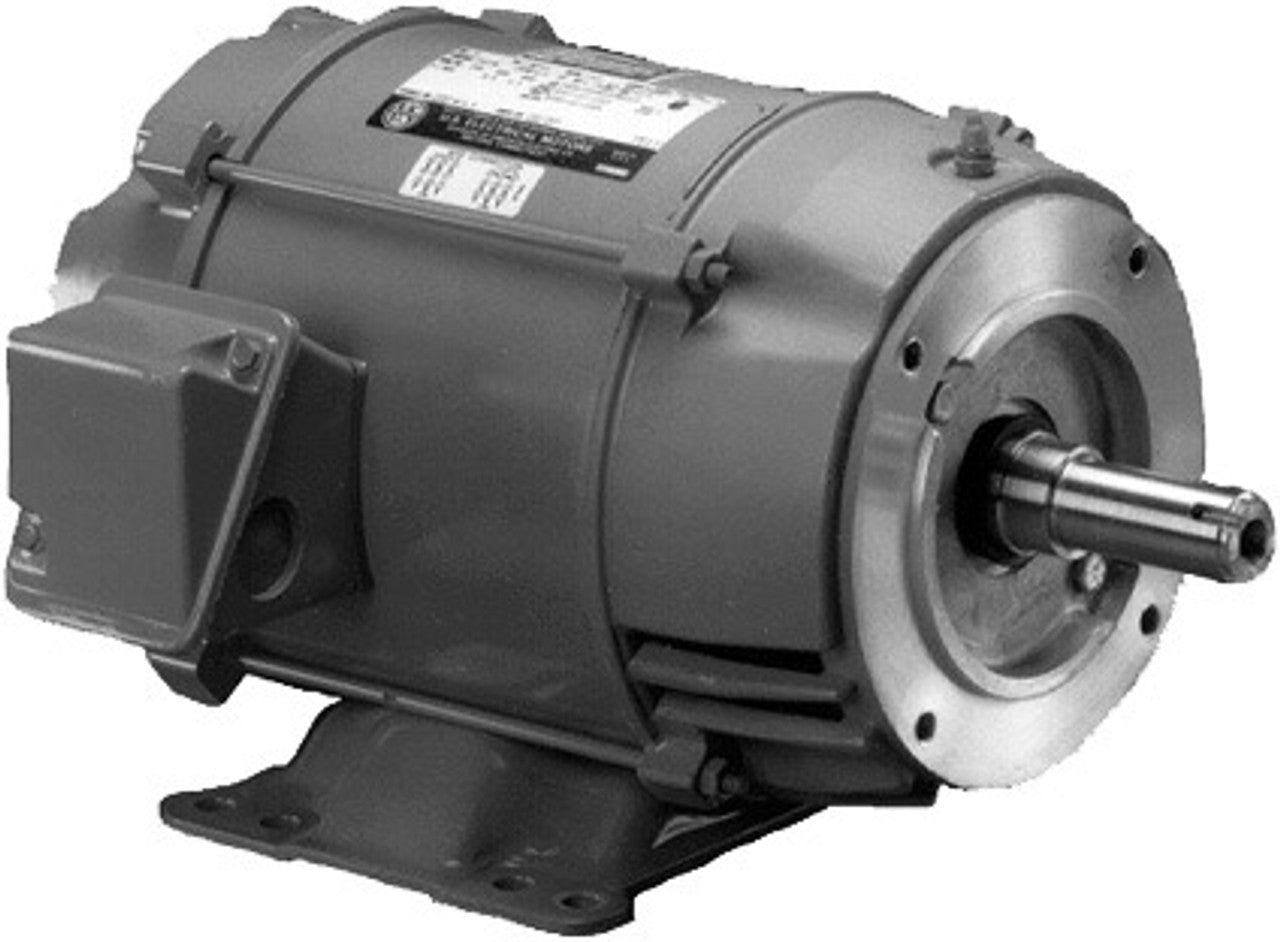

US Motors DJ3E1DM Close Coupled Pump Motor 3 HP

Product Description

The US Motors DJ3E1DM is a three-phase pump motor designed specifically for close-coupled centrifugal pump applications. This motor mounts directly to the pump shaft, providing efficient operation in clean environments with minimal dirt and moisture. It features a rolled steel frame and is designed for easy foot mounting.

• Three-phase operation for reliable performance
• Designed for close coupling to pump systems
• Energy efficient with a service factor of 1.15

Product Highlights

This pump motor is built with durability in mind and operates at three horsepower, making it suitable for various pumping tasks.

Product Information

Standard Information

• Brand: US Motors (Nidec)
• Manufacturer Part Number: DJ3E1DM

Technical Specifications

• Horsepower: 3
• Speed: 3600 RPM
• Voltage: 208-230/460V
• Phase: 3
• Frame Size: 145JM
• Enclosure: Open Drip Proof (ODP)
• Mounting Type: Foot Mount, C-Face with Rigid Base
• Full Load Amps: 8.3-7.5/3.7
• Full Load Efficiency: 84
• Service Factor: 1.15
• Operating Frequency: 50, 60 Hz
• Number of Speeds: 1
• Construction: Rolled Steel
• Product Type: Pump
