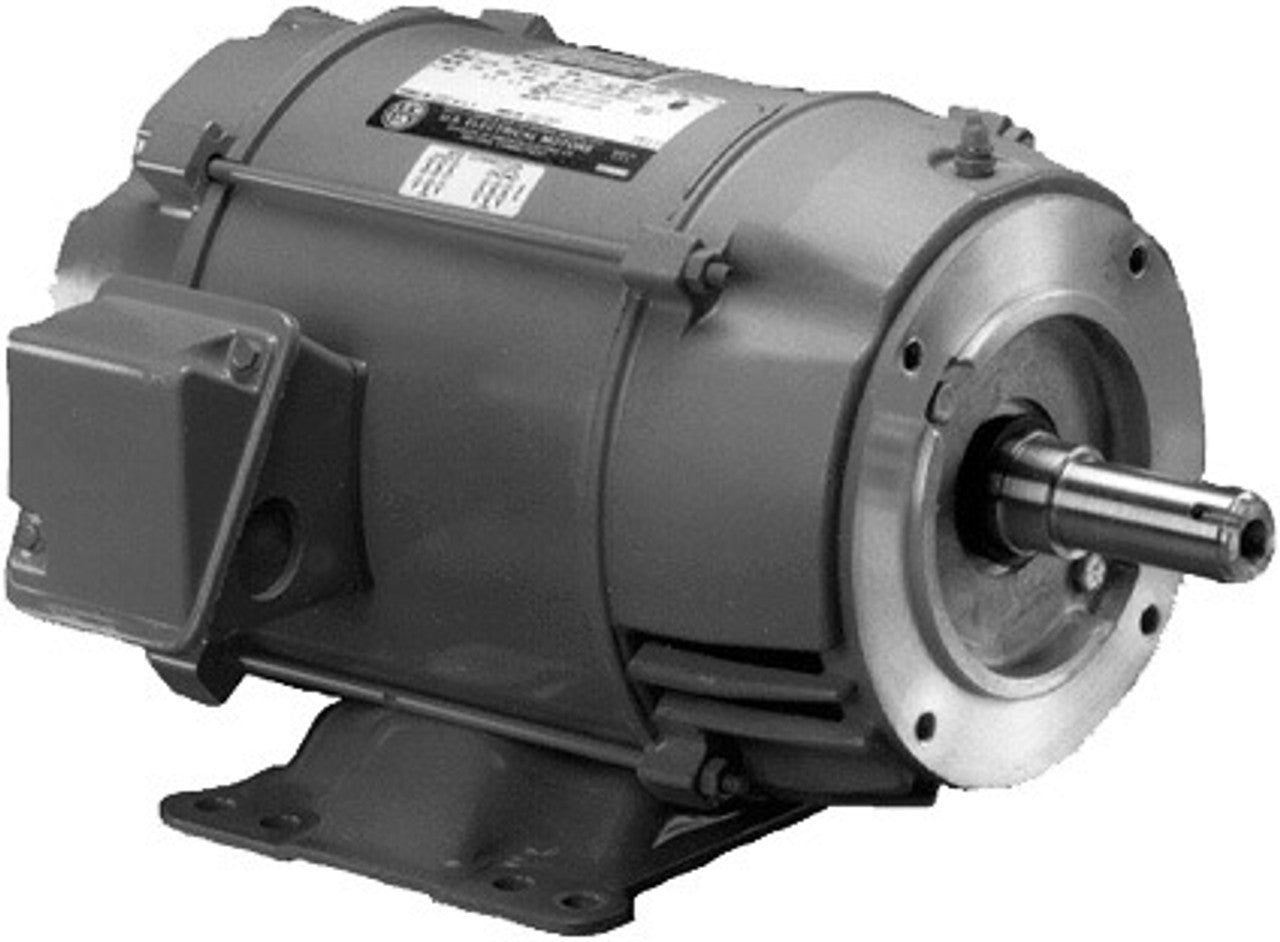

US Motors DJ32E2DM Close Coupled Pump Motor 1-1/2 Horsepower

Product Description

The US MOTORS DJ32E2DM is an energy-efficient three-phase motor ideal for close-coupled pump applications. This motor functions optimally in conditions with limited dirt and moisture. It connects directly with the pump impeller on the motor shaft, making installation straightforward. The motor maintains a speed of eighteen hundred RPM and features Class F insulation along with a Class B temperature rise at the service factor.

• Features a JM shaft designed for mechanical seal compatibility.
• Equipped with double-shielded bearings for improved durability.
• Designed for F1 assembly position, allowing flexible installation.

Product Highlights

This motor is suitable for a variety of centrifugal pump applications, ensuring reliable operation and efficiency in water transfer tasks.

Product Information

Standard Information

• Brand: US MOTORS
• MPN: DJ32E2DM

Technical Specifications

• Horsepower: 1-1/2
• RPM: 1800
• Input Voltage: 208-230/460
• Frame Size: 145JM
• Service Factor: 1.15
• C Dimension: 15.4 inches
• Full Load Efficiency: 84%
• Full Load Amps: 4.5-4.4/2.2
• Insulation Class: F
• Enclosure Type: ODP
• Application: Close Coupled Pump
