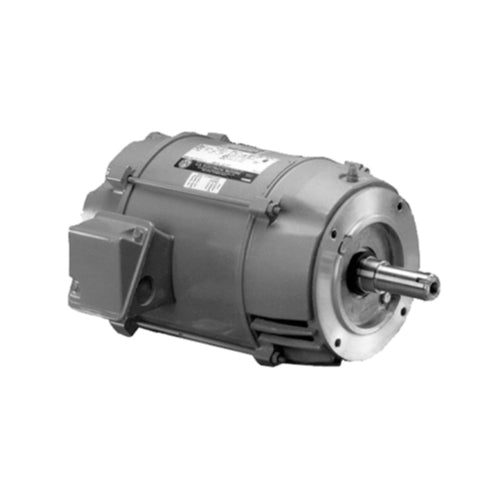

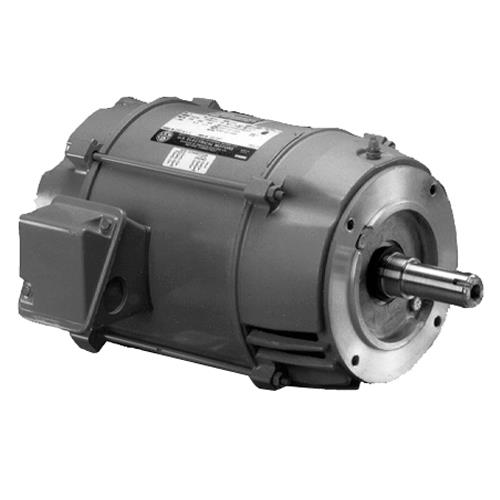

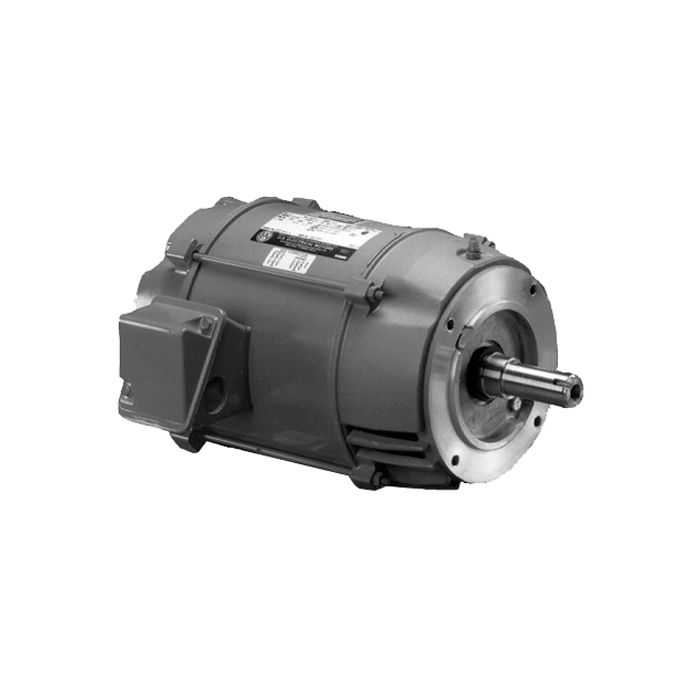

Us Motors DJ15P1DJ DE3, 15 hp, 2p, 215TCZ

Product Description

The US MOTORS DJ15P1DJ is designed for centrifugal pumps where the pump impeller mounts directly on the motor shaft. This close-coupled pump motor is available with a 215TCZ frame. It features a 15 hp motor with a synchronous RPM of 3600 and operates at 190/380//208-230/460 V.

• Suitable for close-coupled pump applications.
• Features premium efficiency and a rolled steel frame.
• Designed with oversized ball bearings and locked shaft end construction.

Product Highlights

This US Motors motor is ideal for centrifugal pumps, offering premium efficiency and robust construction for demanding applications.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: DJ15P1DJ
• Country of Origin: MEX

Technical Specifications

• Motor Phase: 3 ph
• Motor Horsepower: 15 hp
• Synchronous Rpm: 3600 rpm
• Motor Supply Voltage: 190/380//208-230/460 V
• Frame Size: 215TCZ
• Enclosure Type: ODP (Open Drip-Proof)
• Frequency Rating: 50/60 Hz
• Base RPM: 2830 rpm - 3490 rpm
• Duty Condition Type: Continuous Duty
• Mounting Type: Horizontal / Foot
• Full Load Efficiency: 90.2 %
• Motor Poles: 2
• Overall Length C Dimension: 22.3 in
• NEMA Design Class: B
• Service Factor: 1.15
• Insulation Class: F
• Standards Met: EE, NEMA Premium
• Harmonization Code: 8501.52.4000
• Model: FM64
• Max Allowable Current: 18 A, 22.9 A, 36 to 40 A, 46 A
• Torque: 22.6 ft-lbs
• Opposite Drive End Bearing: 6205-2Z-J/C3
• Certificate: UR Listed, CSA US
• Electrical Phase: 3 Ph
• Brand: Nidec-US Motors
• Manufacturer Part #: DJ15P1DJ
• RPM: 3505
• Horsepower: 15.0 HP
• Phase: 3-Phase
• Voltage: 208V-230V/460V
• Rated Current: 35/17.7 Amps
• NEMA Frame: 215TCZ
