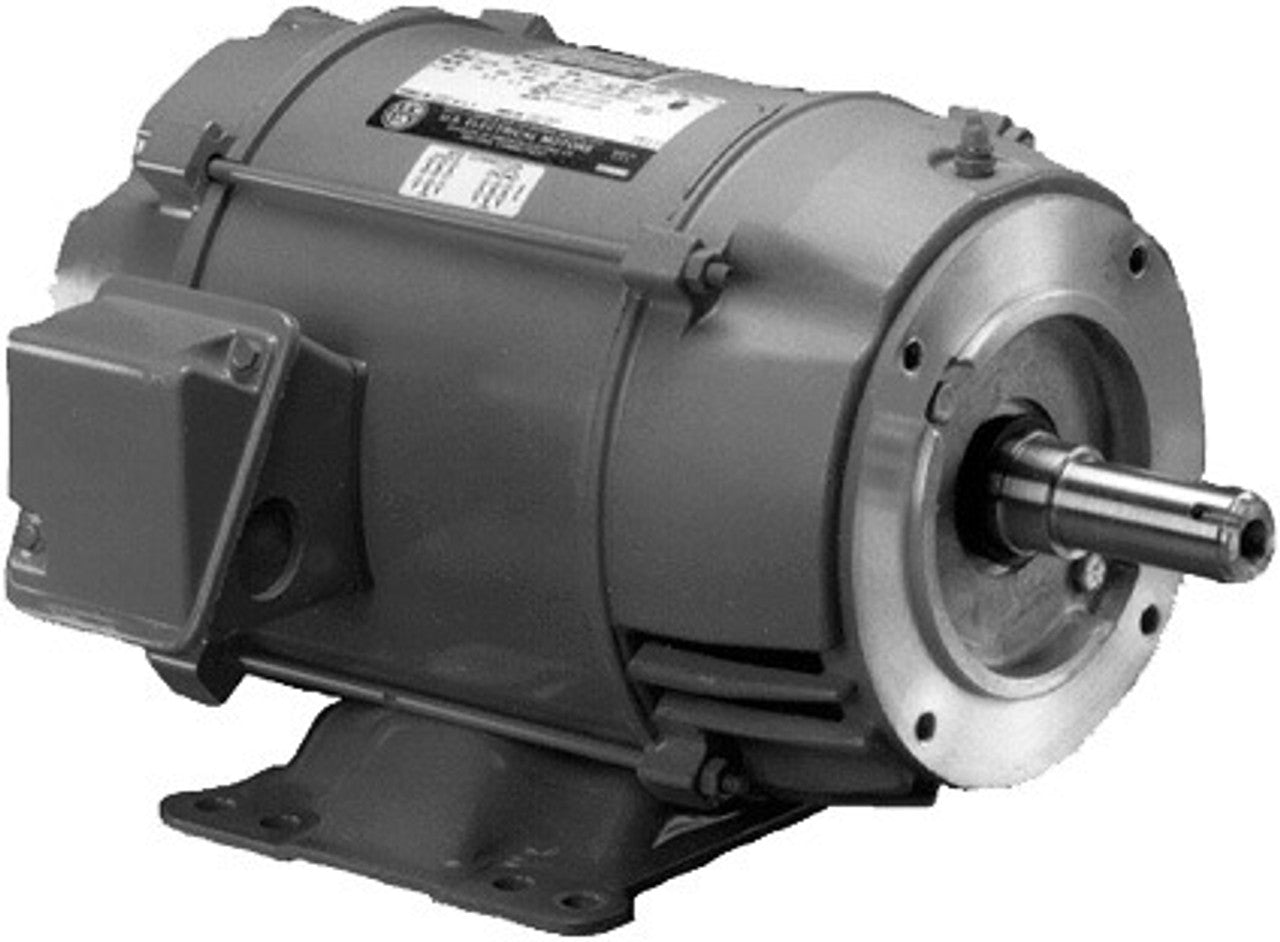

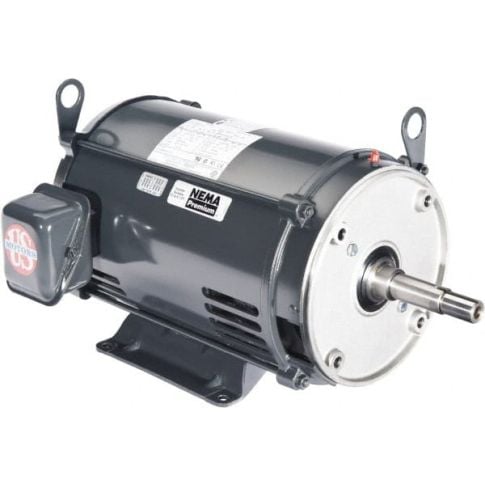

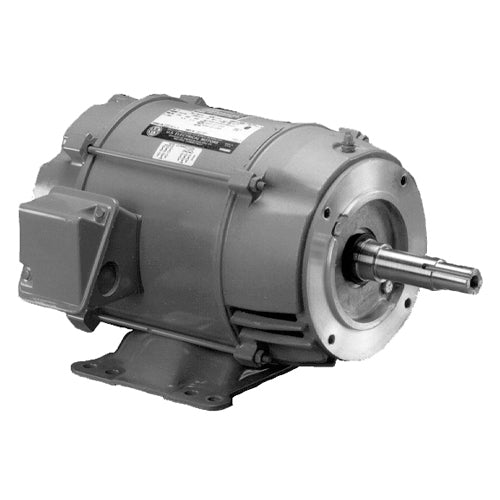

US Motors DJ10E2DM Close Coupled Pump Motor

Product Description

The US MOTORS DJ10E2DM is a three-phase close-coupled pump motor designed for centrifugal pump applications. This motor provides reliable performance in environments where dirt and moisture are minimized. It enables direct mounting of the pump impeller on the motor shaft for efficient operation. The motor operates at speeds of 1760 or 1800 RPM, making it suitable for various pumping tasks.

• Designed for close-coupled pump applications.
• Features a JM shaft for secure mechanical sealing.
• Optimized for low exposure to dirt and moisture.

Product Highlights

The DJ10E2DM is ideal for industrial settings that require dependable performance and energy efficiency.

Product Information

Standard Information

• Brand: US MOTORS
• MPN: DJ10E2DM

Technical Specifications

• Horsepower: 10
• Motor Type: Three Phase Energy Efficient
• Phase: 3
• Voltage: 208-230/460
• Frequency: 60 Hz
• Speed: 1760 RPM
• RPM: 1800
• Frame Size: 215JM
• Enclosure: ODP
• Mounting Type: Rigid
• Service Factor: 1.15
• Insulation Class: F
• Full Load Amperage: 27.2 to 24.6/12.3
• Full Load Efficiency Rating: 89.50
• Ambient Operating Temperature: 40°C
• Bearing Type: Ball
• Rotation: CW/CCW
• Shaft Type: Key
• Number of Speeds: 1
• C Dimension: 19.3
• Frame Material: Steel
