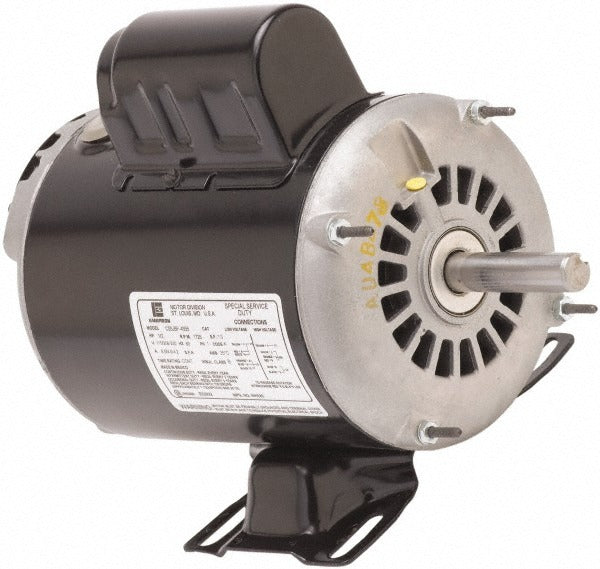

Us Motors D32CM2JH Ac Motor 1.5 Hp 56H Odp Rigid Base

Product Description

The US MOTORS D32CM2JH is a single-phase, capacitor-start AC motor built for demanding trade applications. It delivers 1.5 horsepower through an open drip-proof (ODP) enclosure, making it well suited for indoor or sheltered installations where airflow assists cooling. The rigid base mount provides a stable, bolt-down footprint on equipment frames and skids. Full-load amperage is rated at 19.2 amps on 120-volt circuits and 10.0 to 9.6 amps on 240-volt circuits. The 56H frame designation ensures dimensional interchangeability with standard NEMA 56H mounting patterns. Class B insulation supports continuous duty operation within normal industrial temperature ranges. Licensed HVAC technicians, refrigeration mechanics, and mechanical contractors are the primary installers of this motor.

This motor fits a range of light commercial and residential mechanical equipment requiring a NEMA 56H rigid-base replacement motor. Typical applications include condenser fan assemblies, blower units, pump drives, compressor auxiliaries, and general belt-drive or direct-drive loads in HVAC and refrigeration systems. The ODP enclosure is appropriate for installations where the motor is protected from direct water exposure but benefits from ambient airflow for cooling. Where condensate or wash-down exposure is present, a TEFC-enclosed motor should be specified instead.

Key Features

• 1.5 HP capacitor-start design delivers reliable starting torque for belt-drive and direct-drive loads
• NEMA 56H rigid base frame for drop-in dimensional compatibility with standard motor mounts
• ODP enclosure allows cooling airflow while protecting internal windings from drip exposure
• Dual-voltage full-load amperage rating: 19.2 amps at 120 volts, 10.0 to 9.6 amps at 240 volts
• Class B insulation for continuous duty in standard ambient temperature environments

Compatibility

Designed as an OEM-style replacement for single-phase, NEMA 56H frame rigid-base capacitor-start AC motors in residential and light commercial HVAC, refrigeration, and mechanical equipment installations.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC-R technician. Disconnect and lock out all electrical power to the equipment before removing the existing motor or making any wiring connections, and verify the supply voltage matches the motor nameplate rating before energizing. Secure the rigid base mounting bolts evenly and confirm belt tension or coupling alignment before running under load. Adhere to applicable NEC requirements for motor branch-circuit protection, disconnecting means, and conductor sizing.
