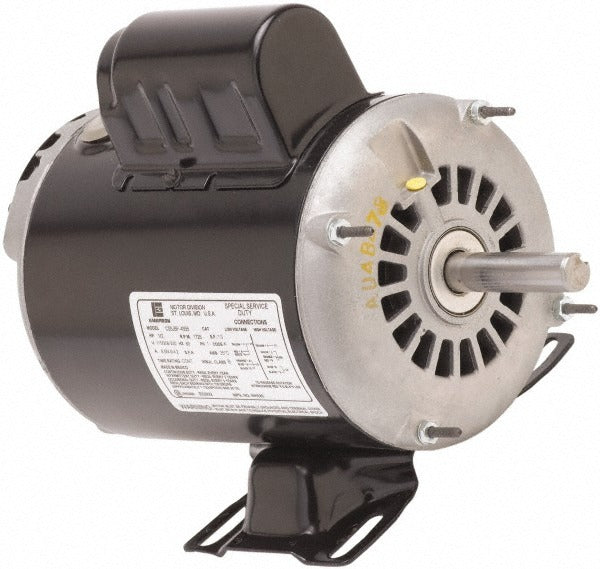

Us Motors D32C2JH Cap Start Ac Motor 1.5 Hp 56H Odp

Product Description

The US MOTORS D32C2JH is a single-phase capacitor-start AC motor designed for general-purpose applications in commercial and industrial settings. Built with an Open Drip-Proof (ODP) enclosure and a rigid base mount, it delivers reliable mechanical power in environments where moisture exposure is limited. Rated at 1.5 horsepower with a full-load amperage of 19.2 amps at low voltage or 10.0-9.6 amps at high voltage, this motor is suited for demanding duty cycles. The 56H frame size follows NEMA standards, ensuring consistent dimensional compatibility across mounting configurations. Class B insulation provides thermal protection up to standard temperature ratings for continuous-duty motor operation.

This motor is appropriate for residential and light commercial applications including compressors, pumps, fans, blowers, and conveyors where a capacitor-start design is specified. The rigid base mount allows direct bolting to equipment frames or motor mounts without additional adapters. HVAC technicians, mechanical contractors, and industrial maintenance professionals are the primary installers of this motor type. The ODP enclosure suits indoor or sheltered outdoor installations where direct water exposure is not a concern.

Key Features

• 1.5 HP output rating suitable for compressors, pumps, and fan applications
• ODP enclosure provides ventilation while protecting against dripping water in sheltered locations
• Rigid base mount for secure, direct bolting to equipment frames
• NEMA 56H frame for standardized dimensional fit across compatible equipment
• Class B insulation for reliable thermal performance in continuous-duty service
• Dual-voltage full-load amperage rating supports flexible electrical configurations

Compatibility

Designed as an OEM-style replacement or upgrade motor for single-phase capacitor-start applications requiring a NEMA 56H rigid base frame with an ODP enclosure.

Installation Notes

Installation should be performed by a licensed electrician or qualified mechanical technician in accordance with NEC requirements. Disconnect and lock out all power to the equipment before removing the existing motor or making any wiring connections. Verify that the supply voltage and circuit ampacity match the motor nameplate requirements before energizing. Confirm that all mounting hardware is properly secured and that the drive coupling or belt is correctly aligned before returning the equipment to service.
