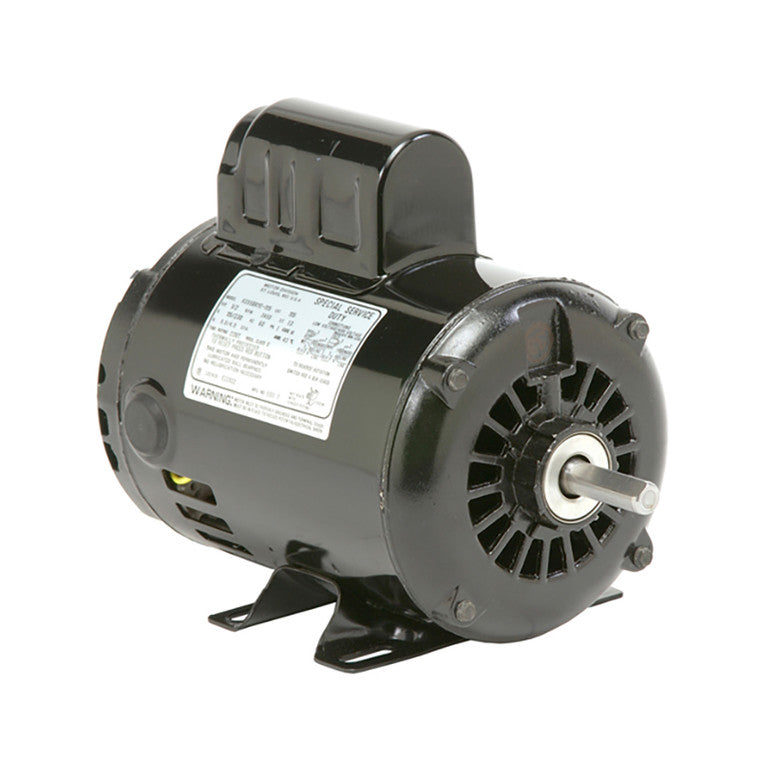

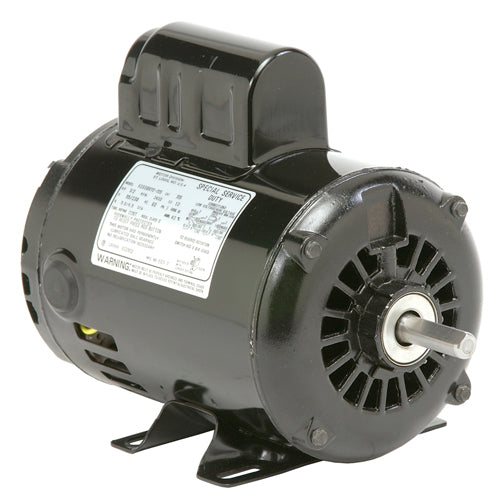

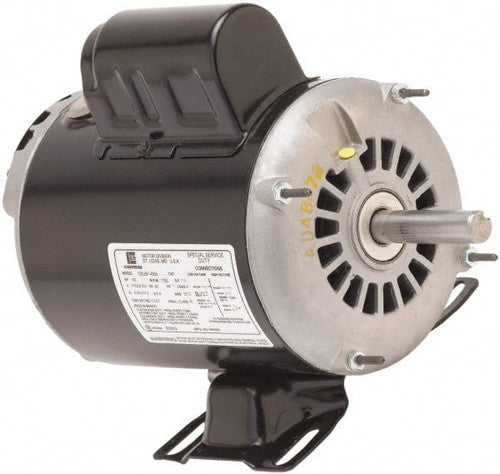

US Motors D32C1JH General Purpose Motor 1.5 HP

Product Description

The US MOTORS D32C1JH is a single-phase electric motor designed for general-purpose applications. It features a 56H frame and an open drip proof (ODP) enclosure, suitable for various mounting needs. Operating at 3600 RPM, this motor is rated at 1.5 HP, making it ideal for continuous duty tasks.

• Single-Phase Electric Motor
• Open Drip Proof Enclosure
• Rigid Base Mounting

Product Highlights

This motor is built for reliability and efficiency, making it a strong choice for demanding environments.

Product Information

Standard Information

• Brand: US Motors (Nidec)
• Manufacturer: US Motors (Nidec)

Technical Specifications

• Part Number: D32C1JH
• Motor Type: General Purpose
• Horsepower: 1.5 HP
• Rated RPM: 3450 RPM
• Synchronous RPM: 3600 RPM
• Input Voltage: 115/208-230 V
• Input Frequency: 60 Hz
• Phase: Single Phase
• Frame Size: 56H
• Enclosure Type: Open Drip Proof (ODP)
• Mounting Type: Rigid Base
• Service Factor: 1.15
• Insulation Class: B
• Duty Cycle: Continuous
• Efficiency: 70%
• Full Load Amperage: 18.6/9.8-9.3 A
• Bearing Type: Ball
• Shaft Diameter: 0.625 inches
• Shaft Length: 1.875 inches
• Shaft Height: 3.5 inches
• Shaft Type: Key
• Number of Shafts: 1
• Rotation: CW/CCW
• C Dimension: 11.9 inches
