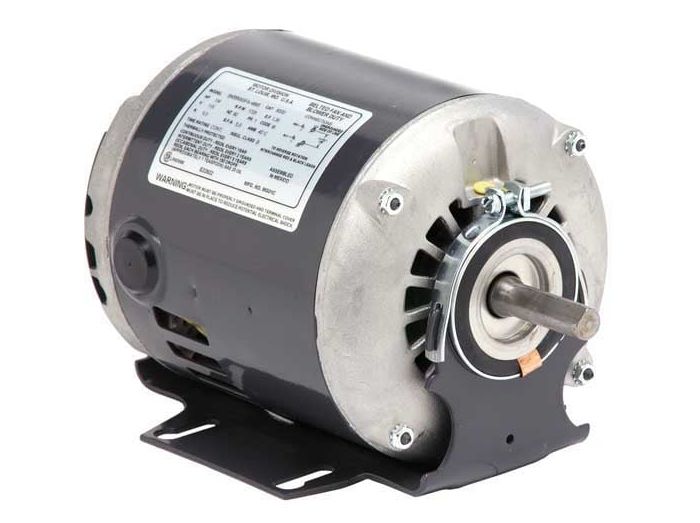

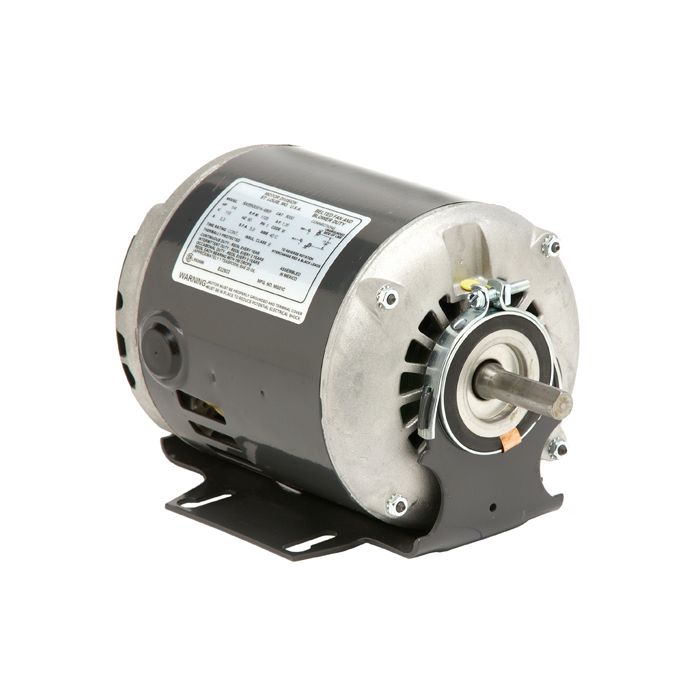

Us Motors D16B3N4Z9 Motor 1/6 HP 48Z

Product Description

The US MOTORS D16B3N4Z9 motor is a 1/6 HP, 1140 RPM split phase motor designed for commercial and industrial ventilation systems. It features a NEMA 48Z frame, rolled steel construction with cast aluminum end bells, and a keyed shaft. This motor is open drip-proof (ODP) and suitable for general purpose applications.

• 1/6 hp 1200 RPM
• 4.5 amps 115 Volts 60 Hz Split Phase Motor
• NEMA 48Z Frame

Product Highlights

This US Motors motor is ideal for ventilation systems, offering reliable performance with its durable construction and reversible rotation.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: D16B3N4Z9
• Country of Origin: US

Technical Specifications

• MODEL: D16B3N4Z9
• BRAND: US Motors
• SKU: D16B3N4Z9
• Electrical Phase: 1 Ph
• Horsepower: 1/6
• RPM: 1140
• Motor Enclosure: ODP
• Kilowatts: 0.1
• Poles: 6
• Number of Speeds: 1
• Hertz: 60
• Volts: 115
• NEMA Frame: 48Z
• Shaft Code: Z
• Stator Diameter: 5.5
• Stack: 1.75
• Mounting: Resilient
• Motor Type: FHP
• Bearing: Ball
• Rotation: CW/CCW
• Rated Current: 4.5 Amps
• AC Voltage: 115 VAC
• Enclosure: Open Drip Proof
• Current Rating: 4.5 A
• Composition: Rolled Steel
• Overload Protection: None
