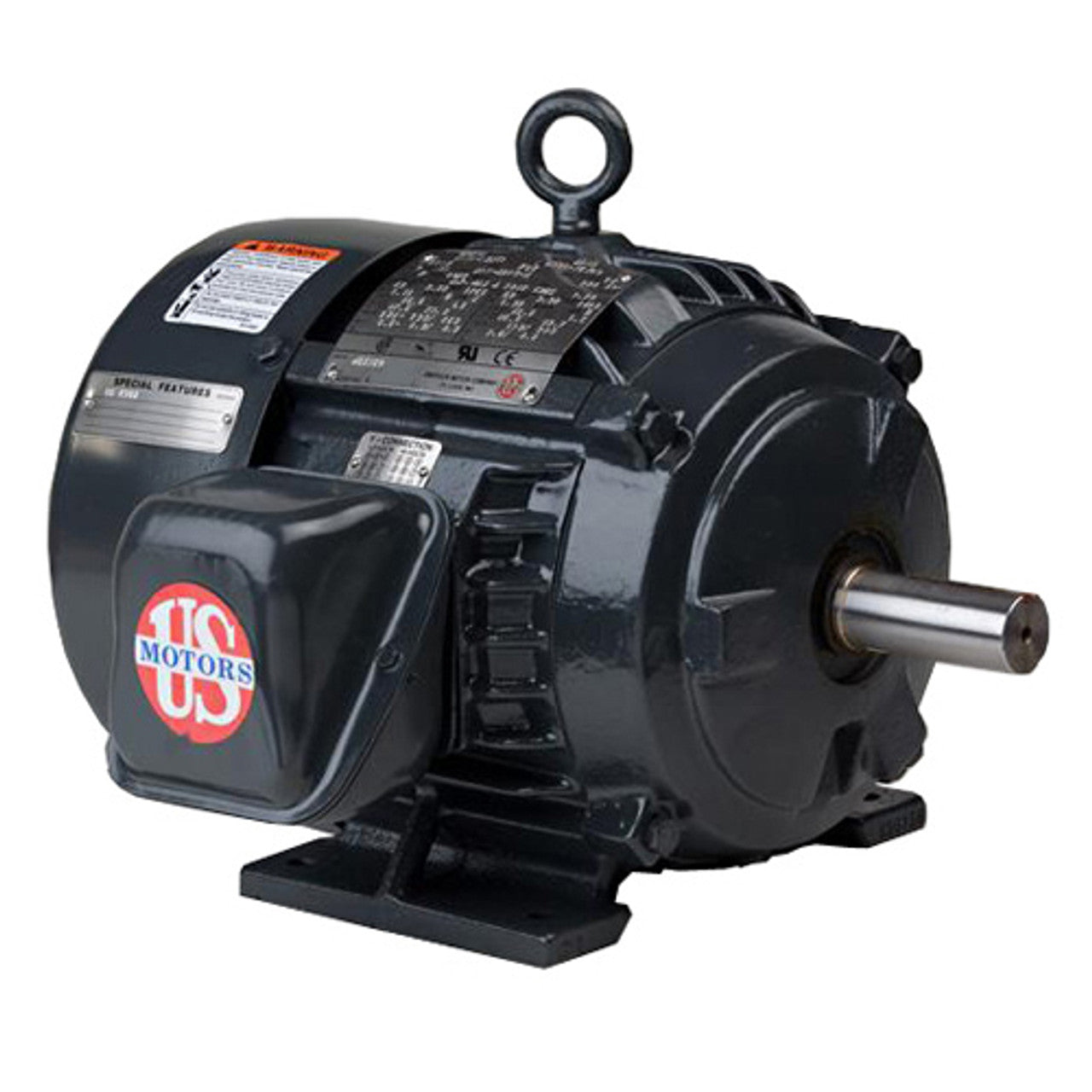

US Motors CW25V2E2 Cooling Tower Motor

Product Description

The US MOTORS CW25V2E2 is a three-phase cooling tower motor designed for efficient operation in cooling tower and evaporation cooler applications. This model features a totally enclosed fan cooled (TEFC) design, which enhances durability and reliability.

• Designed for cooling tower applications
• Three-phase motor with inverter duty and a 10:1 speed range
• Class F insulation ensures safe operation

Product Highlights

This motor is suitable for horizontal mounting and includes double-drilled feet, allowing for flexible installation options.

Product Information

Standard Information

• Brand: US Motors
• MPN: CW25V2E2

Technical Specifications

• Horsepower: 25
• RPM: 1800
• Voltage: 230/460V
• Frame Size: 284T
• Enclosure: TEFC
• Phase: Three Phase
• Service Factor: 1.15
• Mounting Type: Rigid Base
• Insulation Class: Class F
• Weight: 380 lb
• Inverter Duty: 10:1 Speed Range Variable Torque
• Operating Temperature: 40°C Ambient
• Standards: Meets IEC 34-5 Classification IP55
