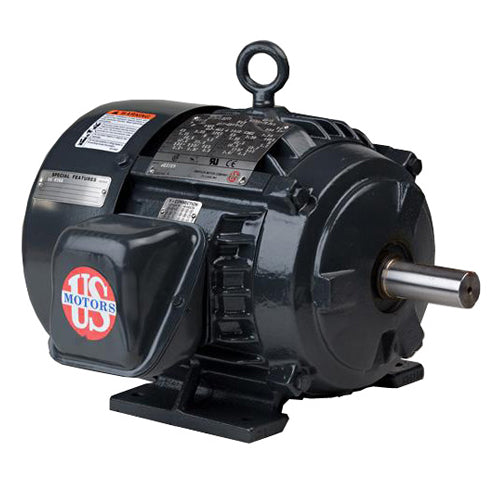

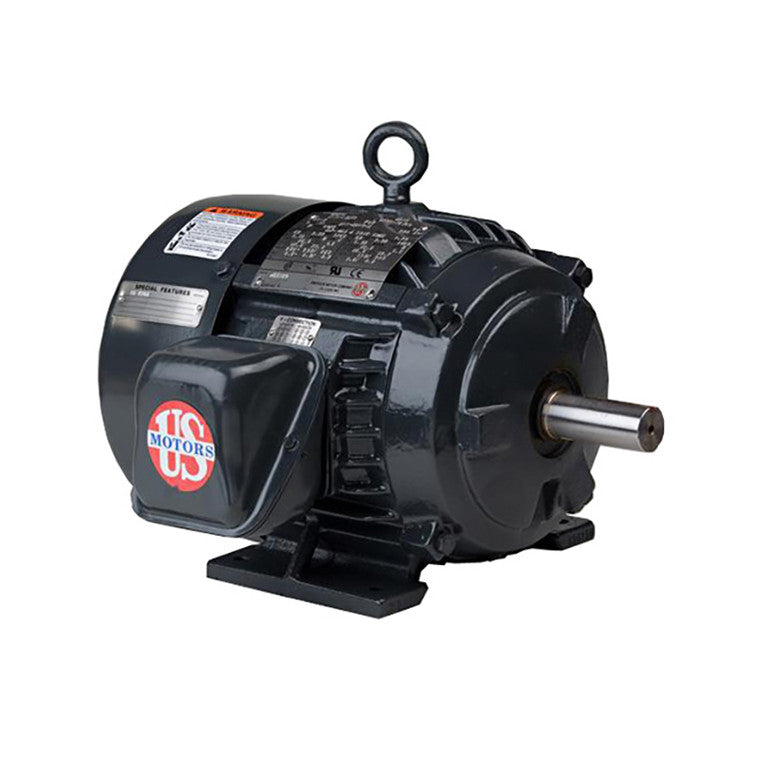

US Motors A7P2C 7.5 HP TEFC 1780 RPM 460V Automotive Duty U-Frame GB88

Product Description

The US MOTORS A7P2C is a definite purpose automotive duty motor designed for efficient operation in automotive and process industries. This TEFC motor has a three-phase power supply and operates at a speed of one thousand seven hundred eighty RPM. It has a robust design built to meet GM7EH, Ford EM-1, and Chrysler NPEM-105 specifications.

• Definite purpose automotive duty motor
• Designed for continuous operation
• Durable cast iron construction

Product Highlights

This motor is suitable for applications requiring reliable performance with a service factor of one point fifteen. It features a standard frame size of two hundred fifty-four U and runs on a voltage of four hundred sixty volts.

Product Information

Standard Information

• Brand: US Motors
• Motor Type: TEFC

Technical Specifications

• Catalog#: A7P2C
• HP: 7.5
• Frame Size: 254U
• Voltage: 460 V
• Full Load Current: 8.90 A
• Efficiency: 93%
• Motor Poles: 4
• Duty Cycle: Continuous
