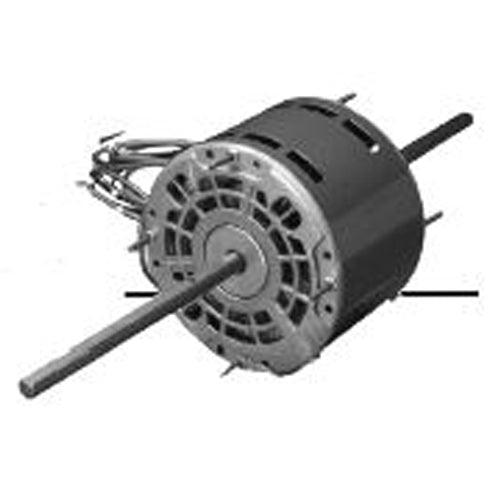

US MOTORS 8726 Double Shaft Fan and Blower Motor

Product Description

The US MOTORS 8726 is a 1/3 HP motor designed for fan and blower applications. It operates at 230 volts and has a direct drive mechanism. This motor runs at a speed of sixteen hundred twenty-five RPM and can switch between three selectable speeds. It also features a double shaft for versatile installation.

• Power: 1/3 HP
• Voltage: 230V
• Speed: 1625 RPM, multiple speeds available

Product Highlights

This motor is suitable for various direct drive applications, ensuring reliable performance in both heating and cooling systems.

Product Information

Standard Information

• Brand: US MOTORS
• MPN: 8726

Technical Specifications

• Horsepower: 1/3 HP
• Speed: 1625 RPM
• Number of Speeds: 3
• Input Voltage: 230V
• Capacitor: 7.5MFD/370VAC
• Current: 1.9 Amps
• Bearings: Ball
• Shaft Length: 7 inches
• Mounting Type: Stud Mount
• Enclosure Type: Open Dripproof
• Phase: 1
• Insulation Class: B
• Operating Frequency: 60 Hz
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40 degrees Celsius
• Frame Size: 48Y
• Rotation: Double Shafted
• Weight: 16 lbs
