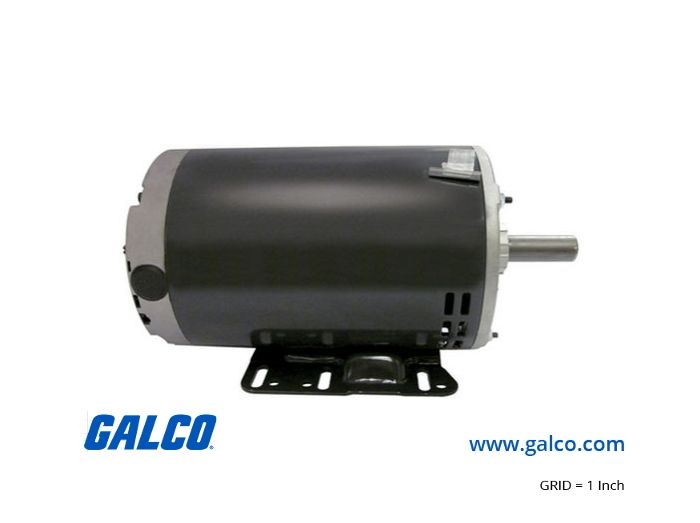

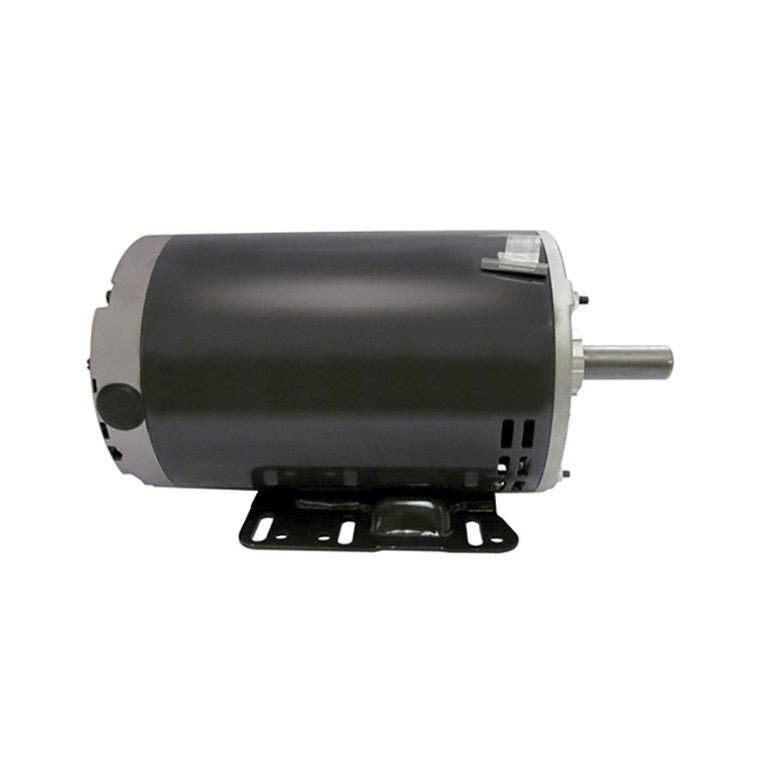

US Motors 7914 US Motors AC Motor 2 HP 200-230/460 VAC

Product Description

The US Motors 7914 is a three-phase AC motor suitable for commercial and industrial use. It provides two horsepower at a rated speed of one thousand seven hundred twenty-five RPM with a synchronous speed of one thousand eight hundred RPM. The motor operates at a voltage of two hundred to two hundred thirty or four hundred sixty VAC and fifty to sixty hertz. This model features an open drip-proof enclosure, a rigid base for secure mounting, and automatic reset thermal protection. Ideal for blower and fan applications.

• Operates at 200-230/460 VAC and 60 Hz
• Rated for 2 HP at 1725 RPM
• Features open drip-proof enclosure

Product Highlights

This motor is built for reliability and efficiency in demanding applications.

Product Information

Standard Information

• Brand: US Motors
• MPN: 7914

Technical Specifications

• Motor Category: Blower/Fan Motor
• Horsepower: 2 hp
• Kilowatts: 1.5 kW
• Rated RPM: 1725 RPM
• Synchronous RPM: 1800 RPM
• Number of Poles: 4
• Frame Size: 56HZ
• Input Voltage: 200-230/460 V
• Rated Input Frequency: 60 Hz
• Phase: Three Phase
• Full Load Current: 7.6-7.8 A, 3.9 A
• Locked Rotor Amps: 44.12 A
• Efficiency: 86.5%
• Service Factor: 1.15
• Insulation Class: B
• Enclosure Type: ODP (Open Drip-Proof)
• Mounting Type: Rigid Base
• Bearing Type: Ball
• Duty Cycle: Continuous
• Thermal Protection: Automatic Reset
• Maximum Ambient Temperature: 40° C
• Rotation: Reversible
• Overall Length C Dimension: 12.3 inches
• Weight: 37.3 lbs
• Standards Met: EE, NEMA Premium
• Locked Rotor Torque: 285.5 OZFT
• Break Down Torque: 403.4 OZFT
