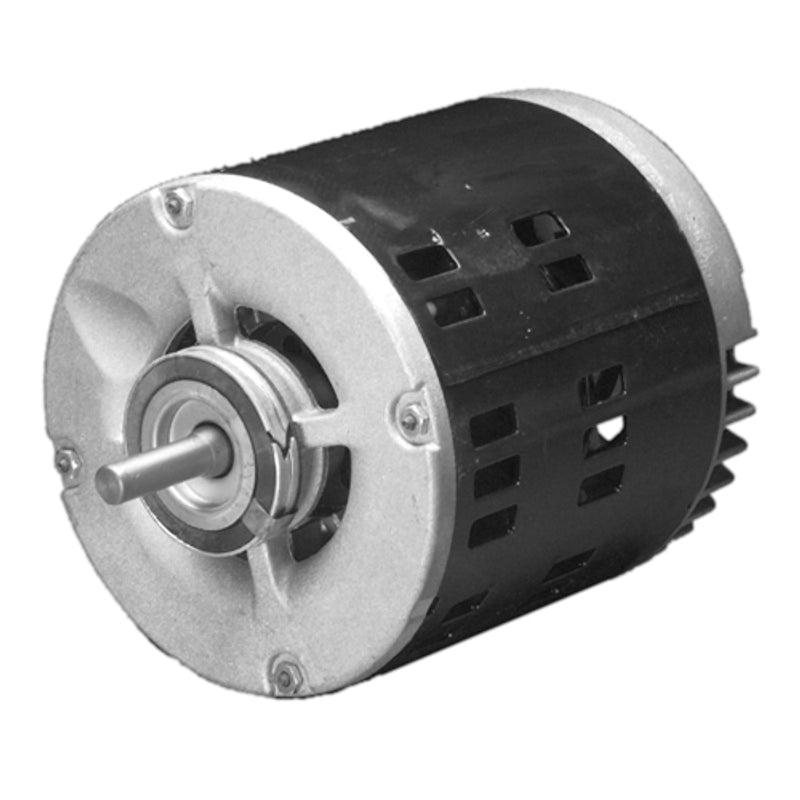

US MOTORS 6768 Split Phase Evaporative Cooler Motor

Product Description

The US MOTORS 6768 is a split phase motor suitable for evaporative cooler applications. This motor features an open dripproof enclosure and a frame size of fifty-six Z. It operates at one thousand seven hundred twenty-five RPM and rotates clockwise when viewed from the shaft end. The motor includes automatic thermal protection and is equipped with ball bearings.

• Split Phase motor type
• Designed for evaporative cooler applications
• Open Dripproof (ODP) enclosure

Product Highlights

This motor is ideal for reliable operation in evaporative coolers, ensuring efficient airflow and cooling performance.

Product Information

Standard Information

• Manufacturer: US MOTORS
• Motor Type: Split Phase

Technical Specifications

• MPN: 6768
• Horsepower: 1/2
• RPM: 1725
• Voltage: 115 V
• Amps: 8.2
• Frame Size: 56Z
• Enclosure Type: ODP
• Rotation: CW Shaft End
• Number of Speeds: 1
• Phase: 1
• Efficiency: 55.6%
• Insulation Class: B
• Maximum Ambient Temperature: 40° C
• Mounting: Resilient Ring
• Service Factor: 1.00
• Thermal Protection: Automatic
• Weight: 20 lbs
• Bearings: Ball
