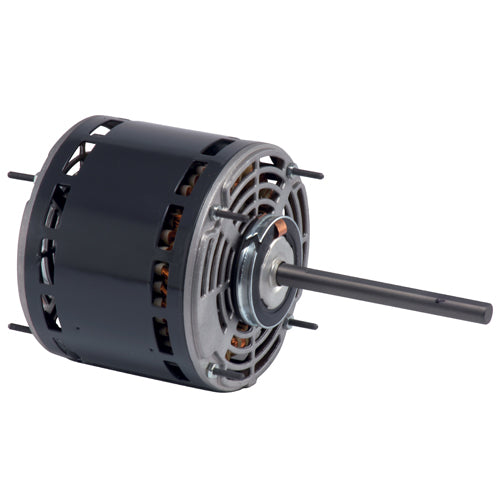

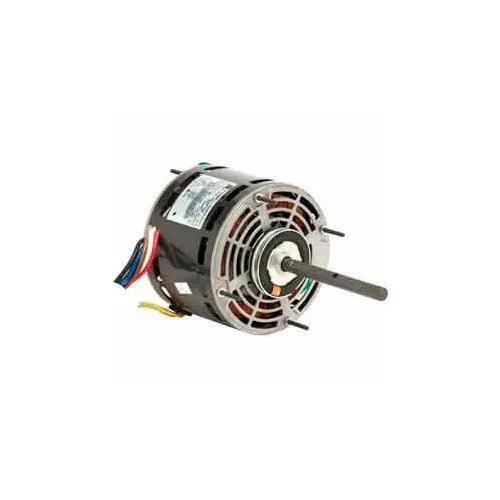

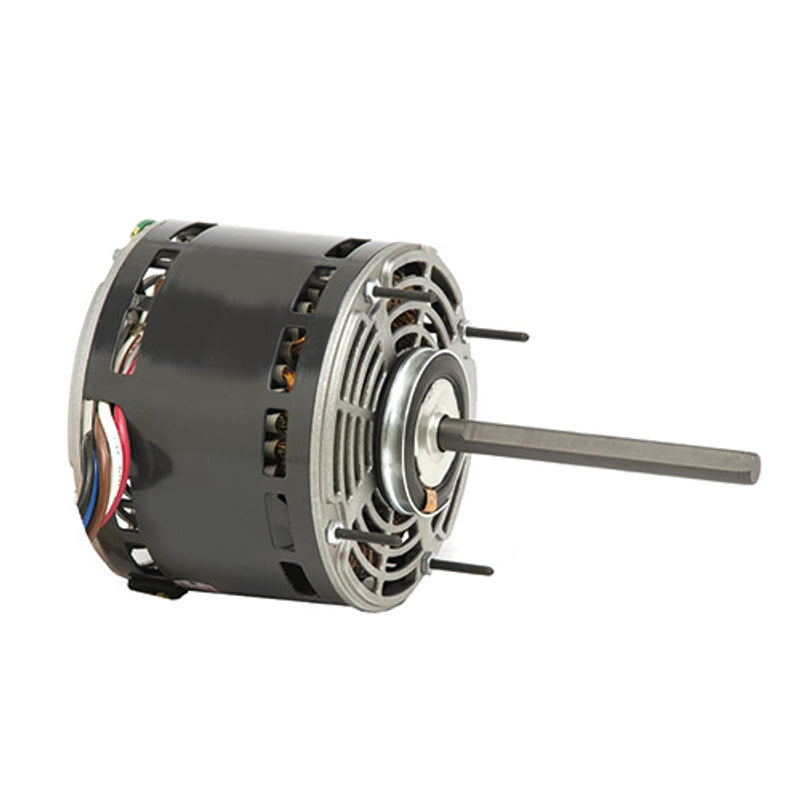

US Motors 5836 Direct Drive Fan and Blower Motor

Product Description

The US MOTORS 5836 is a direct drive fan and blower motor suitable for various applications. It features a permanent split capacitor design and an open air over enclosure. This motor operates efficiently at 208-230V and runs at a speed of 1075 RPM with four selectable speeds.

• Permanent split capacitor motor
• Open air over enclosure
• Four speed options

Product Highlights

This motor is ideal for applications requiring reliable and efficient performance.

Product Information

Standard Information

• Brand: US Motors
• Model Number: 5836

Technical Specifications

• Application: Direct Drive Fan and Blower
• Enclosure Type: OPAO
• Frame Size: 48YZ
• Horsepower: 1/3 HP
• Motor Type: Permanent Split Capacitor
• Rotation: CCW Lead End REV
• Speed: 1075 RPM
• Number of Speeds: 4
• Input Voltage: 208-230 V
• Capacitor MFD: 6
• Output Current: 2.3 A
• Shaft Length: 6 inches
• Total Length: 11.7 inches
• Diameter: 5.6 inches
• Mounting Type: Ring, Stud, Cradle
• Phase: 1
• Hertz: 60 Hz
• Full Load Amps: 4.66 FLA
• Rated RPM: 1075
• Service Factor: 1
• RPM Range: 1001-1100 rpm
• Insulation Class: A
• Construction: Rolled Steel
• Full Load Efficiency: 66.4%
• Weight: 13 lb
