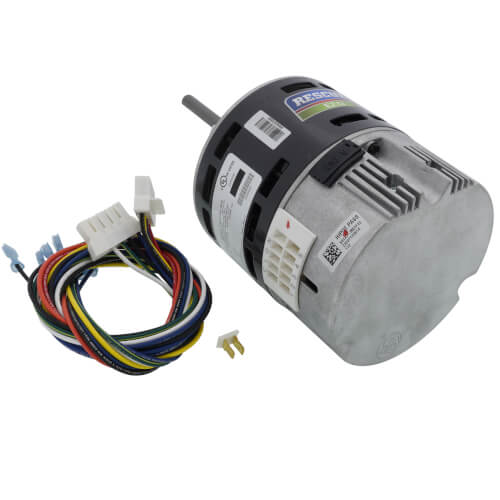

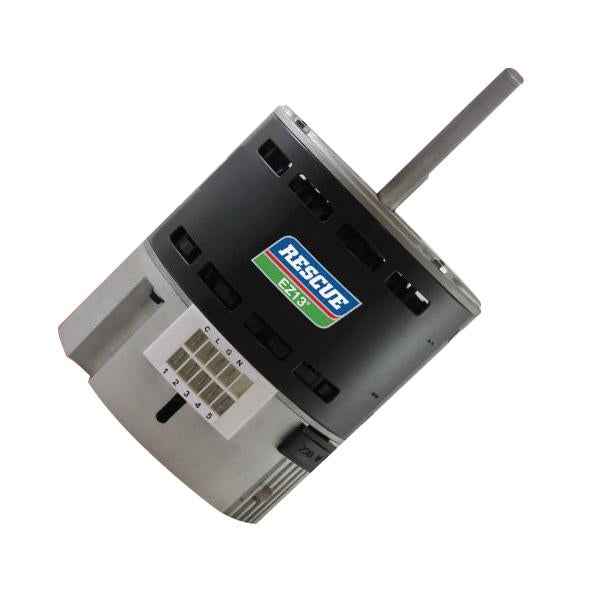

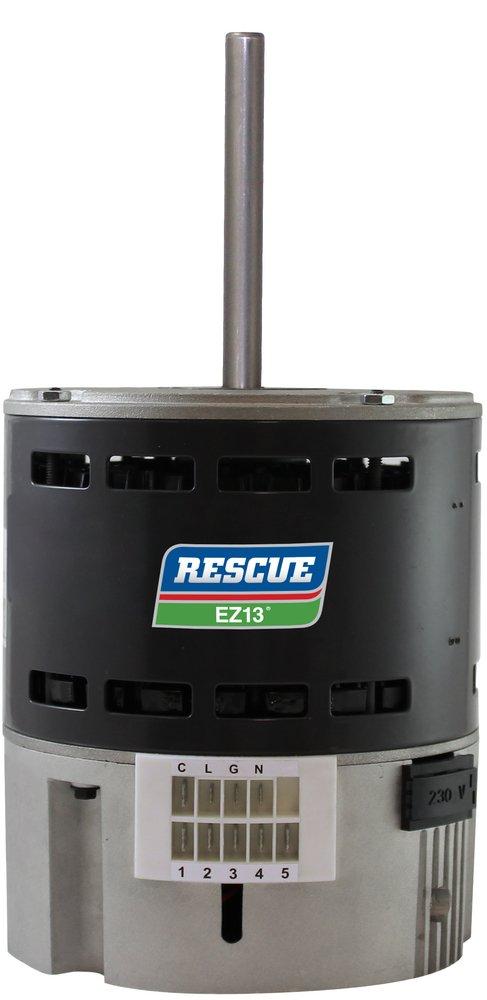

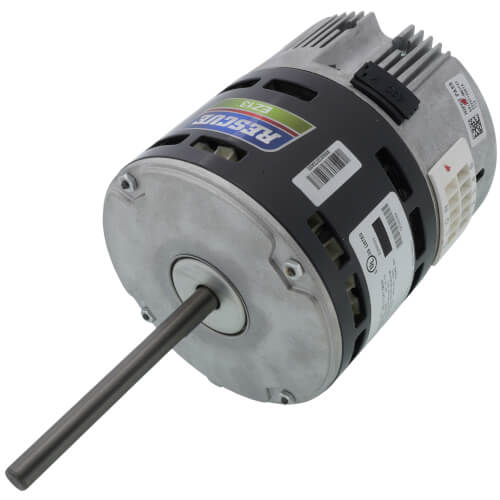

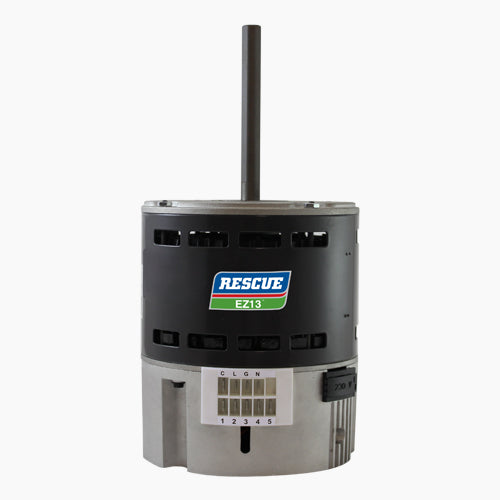

Us Motors 5632 Ez13 constant torque ec motor 1/2-1/3 hp 115/230V

Product Description

The US Motors 5632 is a direct drive blower motor, specifically an EZ13 constant torque EC motor, designed for furnace and air handler applications. This OPAO enclosure motor operates at 115/208 to 230 Volt AC, 1-phase, with a 50/60 Hertz frequency. It provides 1/2 to 1/3 HP power at 1075 RPM, featuring a NEMA 48 frame and belly-band mounting. The motor is reversible and UL approved for Canada and US, suitable for HVAC systems.

• Improved reliability with Built-In 6000 Volt Surge Protection
• Industry Leading Moisture Protection
• No Programming Required

Product Highlights

Universal ECM direct-drive blower motor for furnaces and air handlers, featuring constant torque operation and easy installation.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 5632
• Country of Origin: MEXICO

Technical Specifications

• Application: Furnace and Air Handler
• Certifications: UL (Canada and US), CSA, CE
• Enclosure Type: Open Air Over (OAO)
• Frequency: 50/60 Hertz
• Insulation Class: B
• Full Load Amps: 6.3/4 to 3.8 Amp
• Mounting Type: Belly-Band
• NEMA Frame: 48Y
• Number of Speeds: 1
• Horsepower: 1/2 to 1/3 HP
• Rotation: Auto-Rotation Sensing
• RPM: 1075
• Voltage: 115/208 to 230 Volt AC 1-Phase
• Number of Poles: 10
• Motor Type: ECM
• Model: EZ13
• Material: Steel
• Shaft Size: 1/2 x 5 in
• Bearing Type: Ball
• Service Factor: 1
• Operating Temperature: 40 deg C
• Inputs: 24Vac, Tap Inputs
• Operation Mode: Constant Torque
• Efficiency: 82%
• Standard Mounting Position: All Angle
• Thermal Protection: Electronically Protected
