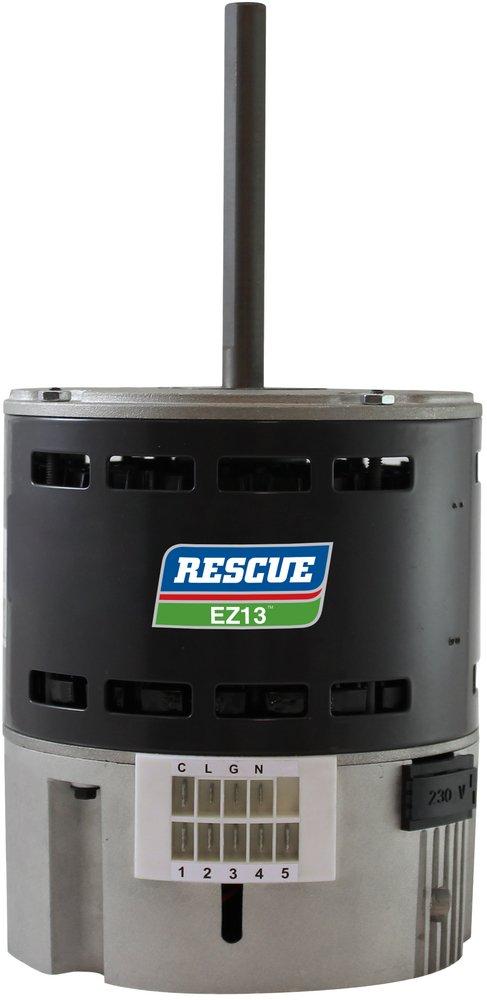

Us Motors 56205S EZ13™ 1/2 - 1/3 hp 1050 RPM 208/230V Single Phase ECM Variable Speed Motor

Product Description

The US MOTORS 56205S EZ13™ ECM variable speed motor is a universal ECM replacement for Selectech, X13, and EnduraPro. This single-phase motor features auto-sensing rotation and requires no programming for installation. It operates at 208/230V and 1050 RPM, with industry-leading moisture protection and built-in 6,000 Volt surge protection.

• Auto-Sensing Rotation
• Ready to install, No Programming required
• Universal ECM Replacement for Selectech, X13 and EnduraPro

Product Highlights

This US Motors ECM motor is designed for easy installation and reliable performance in various applications.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 56205S
• Country of Origin: US

Technical Specifications

• Voltage: 208/230V
• Phase: Single Phase
• Application: ECM Variable Speed Motor
• HP: 1/2
• Poles: 10
• Motor Enclosure: Open Air Over (OAO)
• Number of Speeds: 1
• RPM: 1050
• HERTZ: 60
• VOLTS PRIMARY: 208-230 V
• FRME: 48
• SHAFT CODE: Y
• STACK: 1.55
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: BALL
• SHAFT END BEARING: BALL
• AMBIENT: 40
• ROTATION: CCW LE REV
• THERMAL PROTECTION: ELECTRONICALLY PROTECTED MOTOR
• INSULATION CLASS: B
• FULL LOAD AMPS PRIMARY: 3.9-3.8 / 4.2-3.6
• Brand: US Motors
• Type: ECM Motor
• Model: 56205S
• Supply Voltage: 208-230 V
• MPN: 56205S
• Power Phase: 1
• Electrical Phase: 1 Ph
• Horsepower: 1/3 - 1/2 hp
• AMP: 3.9, 3.8
• Blower Type: ECM Variable Speed
• CSA Certified: No
• Collection: EZ13™
• Diameter: 5-5/8 in
• Fan Speeds: Variable
• Frame Size: 48
• Length: 12-1/10 in
• Material: Steel
• Maximum Temperature: 130
• OEM Part: No
• Product Type: Motor
• RPM Range: 900-1150
• Temperature Range: -29 to 130 Deg C
• UL Listed: Yes
• UPC: 786382149390
• Watts: 246.08 W
