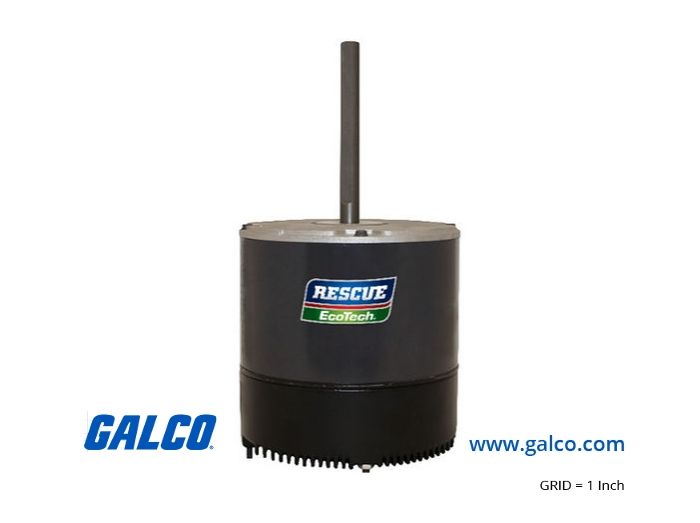

US Motors 5561EO-US Rescue EcoTech Condenser Fan Motor

Product Description

The US Motors 5561EO-US is an ECM condenser fan motor designed for residential outdoor condensing units. It features a horsepower of one third and a diameter of five point six inches, with a totally enclosed air over (TEAO) design. This motor effectively replaces both the one thousand seventy-five and eight hundred twenty-five RPM motors.

• ECM motor for condenser fans
• Replaces 1075 and 825 RPM motors
• Totally Enclosed Air Over (TEAO)

Product Highlights

This motor is rated for two hundred eight to two hundred thirty volts and supports reversible rotation for versatile installation.

Product Information

Standard Information

• Brand: US Motors (Nidec)
• Manufacturer Part Number: 5561EO-US

Technical Specifications

• Model/Part Number: 5561EO
• Catalog Number: Y8764
• Horsepower: 1/3 HP
• Power: 300W
• Kilowatts: 0.3 kW
• Amperage: 2.5A
• Input Voltage: 208-230 VAC
• Hertz: 50/60 Hz
• Phase: 1 Phase
• RPM: 825-1,075
• Speed: 1,200 RPM
• Motor Type: ECM (Electronically Commutated Motor)
• Enclosure: Totally Enclosed Air Over (TEAO)
• Rotation: Reversible
• Bearings: 2
• Mounting Type: Shaft Down/Stud
• Shaft Diameter: 0.5 inches
• Shaft Length: 4.5 inches
• Insulation Class: B
• Diameter: 5.6 inches
• Product Height: 10.125 inches
• Gross Weight: 11 lbs
• UL Recognized: Yes
• Poles: 10
